The FrameWriter writes frames to an external target. More...

#include <FrameIO.h>

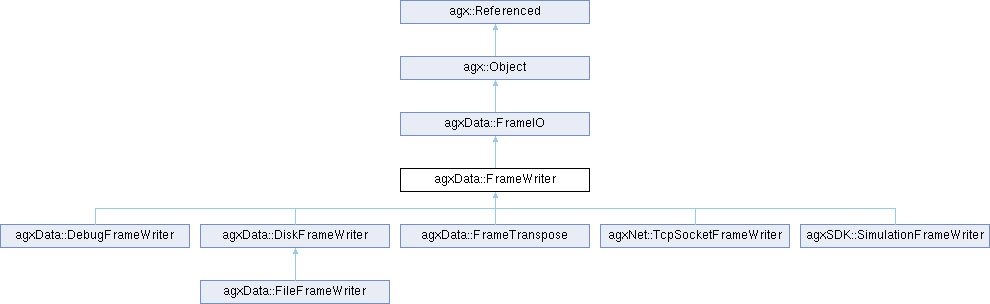

Inheritance diagram for agxData::FrameWriter:

Public Types
typedef agx::Event1< const Frame * >	WriteEvent

Public Types inherited from agx::Object
typedef agx::observer_ptr< const Event >	EventConstObserver

typedef agx::ref_ptr< const Event >	EventConstRef

typedef agx::observer_ptr< Event >	EventObserver

typedef agx::Vector< EventObserver >	EventObserverVector

typedef agx::VectorPOD< Event * >	EventPtrVector

typedef agx::ref_ptr< Event >	EventRef

typedef agx::Vector< EventRef >	EventRefVector

Public Member Functions
	FrameWriter (bool active)

virtual void	endOfStream ()

virtual void	forceFlush ()

agx::UInt	getNumWrittenFrames () const

bool	isEOF () const

virtual void	writeFrame (const Frame *frame)=0
	Export a frame the implementation-specific format.

Public Member Functions inherited from agxData::FrameIO
void	addDataBinding (const agx::Path &internalPath, const agx::Path &externalPath, bool recursive=false)
	Register a data binding.

void	addDataBinding (const agx::Path &path, bool recursive=false)
	Alias for addDataBinding(path, path)

void	clearDataBindings ()
	Remove all data bindings.

const Frame::DataBindingRefVector &	getDataBindings () const

SerializedFrame::HeaderFormat	getHeaderFormat () const

Track *	getTrack ()

const Track *	getTrack () const

bool	isActive () const

void	loadDataBindings (const agx::String &xmlFilePath)
	Load bindings from an xml file.

bool	loadDataBindingsJSON (const agx::String &jsonFilePath)

bool	removeDataBinding (const agx::Path &internalPath, const agx::Path &externalPath)

bool	removeDataBinding (const agx::Path &path)

void	setHeaderFormat (SerializedFrame::HeaderFormat format)

Public Member Functions inherited from agx::Object
	Object (const Name &name=Name(), Model *model=Object::ClassModel())

void	addListener (EventListener *listener)

virtual void	buildNavigationTree (agxJson::Value &eNode) const

virtual void	configure (TiXmlElement *)

agx::String	fullName () const

agx::String	fullPath () const

agx::String	fullPath (const agx::Object *root) const

template<typename T >
T *	getAutoScopedResource (const agx::Path &path)

template<typename T >
const T *	getAutoScopedResource (const agx::Path &path) const

agx::Object *	getAutoScopedResource (const agx::Path &path, agx::Model *model=nullptr)

const agx::Object *	getAutoScopedResource (const agx::Path &path, agx::Model *model=nullptr) const

agx::Object *	getContext ()

template<typename T >
T *	getContext ()

const agx::Object *	getContext () const

template<typename T >
const T *	getContext () const

agx::UInt32	getId () const

const agx::Name &	getImplementationName () const

agx::Model *	getModel ()

const agx::Model *	getModel () const

const agx::Name &	getName () const

agx::Object *	getNextSibling ()

const agx::Object *	getNextSibling () const

agx::Path	getPath () const

agx::Path	getPath (const agx::Object *root) const

template<typename T >
T *	getResource (const agx::Path &path)

template<typename T >
const T *	getResource (const agx::Path &path) const

agx::Object *	getResource (const agx::Path &path, agx::Model *model=nullptr)

const agx::Object *	getResource (const agx::Path &path, agx::Model *model=nullptr) const

virtual agx::Object *	getResourceImpl (const agx::Path &path, agx::Model *model)

agx::Object *	getRootContext ()

const agx::Object *	getRootContext () const

bool	hasListener (EventListener *listener)

bool	hasParent (const agx::Object *node) const

bool	isUnique () const

virtual void	printSubtree () const

virtual void	rebind ()

void	removeListener (EventListener *listener)

virtual void	save (TiXmlElement *) const

virtual void	setContext (agx::Object *context)

void	setId (UInt32 id)

void	setModel (agx::Model *model)
	Set the object model (handled automatically).

void	setName (const agx::Name &name)
	Set the name of the object.

virtual void	snapshot (TiXmlNode *, const String &) const

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Public Attributes
WriteEvent	writeEvent

Protected Member Functions
virtual	~FrameWriter ()

Protected Member Functions inherited from agxData::FrameIO
	FrameIO (bool active)

virtual	~FrameIO ()

void	addDataBinding (Frame::DataBinding *binding)

Protected Member Functions inherited from agx::Object
virtual	~Object ()

Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Protected Attributes
agx::UInt	m_numWrittenFrames

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Additional Inherited Members
Static Public Member Functions inherited from agx::Object
static agx::Model *	ClassModel ()

static agx::String	generateName (const agx::String &bindPath)

static const HashSet< Object * > &	getActiveObjects ()

static bool	getEnableRebind ()
	Should rebinding be allowed? Right now a global setting.

static Object *	load (const String &path, Device *device, const String &type, const String &attribute, const String &value)

template<typename T >
static T *	load (const String &path, Device *device, const String &type, const String &attribute, const String &value)

static Object *	load (const String &path, Device *device, const String &type="", size_t instance=0)

template<typename T >
static T *	load (const String &path, Device *device, const String &type="", size_t instance=0)

static void	load (const String &path, Device *device, ObjectPtrVector &loadedObjects)

static Object *	load (TiXmlElement eObject, Device device)

template<typename T >
static T *	load (TiXmlElement eObject, Device device)

static TiXmlDocument	openDocument (const String &path)

static void	setEnableRebind (bool flag)
	Sets if rebinding of objects should be allowed (Right now a global setting).

Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Detailed Description

The FrameWriter writes frames to an external target.

Definition at line 168 of file FrameIO.h.

Member Typedef Documentation

◆ WriteEvent

typedef agx::Event1<const Frame*> agxData::FrameWriter::WriteEvent

Definition at line 171 of file FrameIO.h.

Constructor & Destructor Documentation

◆ FrameWriter()

agxData::FrameWriter::FrameWriter ( bool active )

◆ ~FrameWriter()

virtual agxData::FrameWriter::~FrameWriter ( )

protectedvirtual

Member Function Documentation

◆ endOfStream()

virtual void agxData::FrameWriter::endOfStream ( )

inlinevirtual

Reimplemented in agxNet::TcpSocketFrameWriter, and agxData::FileFrameWriter.

Definition at line 186 of file FrameIO.h.

◆ forceFlush()

virtual void agxData::FrameWriter::forceFlush ( )

inlinevirtual

Reimplemented in agxSDK::SimulationFrameWriter.

Definition at line 183 of file FrameIO.h.

◆ getNumWrittenFrames()

agx::UInt agxData::FrameWriter::getNumWrittenFrames ( ) const

Definition at line 260 of file FrameIO.h.

References m_numWrittenFrames.

◆ isEOF()

bool agxData::FrameWriter::isEOF ( ) const

Definition at line 259 of file FrameIO.h.

◆ writeFrame()

virtual void agxData::FrameWriter::writeFrame ( const Frame * frame )

pure virtual

Export a frame the implementation-specific format.

Implemented in agxData::FrameTranspose.

Member Data Documentation

◆ m_numWrittenFrames

agx::UInt agxData::FrameWriter::m_numWrittenFrames

protected

Definition at line 195 of file FrameIO.h.

Referenced by getNumWrittenFrames().

◆ writeEvent

WriteEvent agxData::FrameWriter::writeEvent

Definition at line 172 of file FrameIO.h.

The documentation for this class was generated from the following file:

FrameIO.h
