Links two connections together. More...

#include <Connector.h>

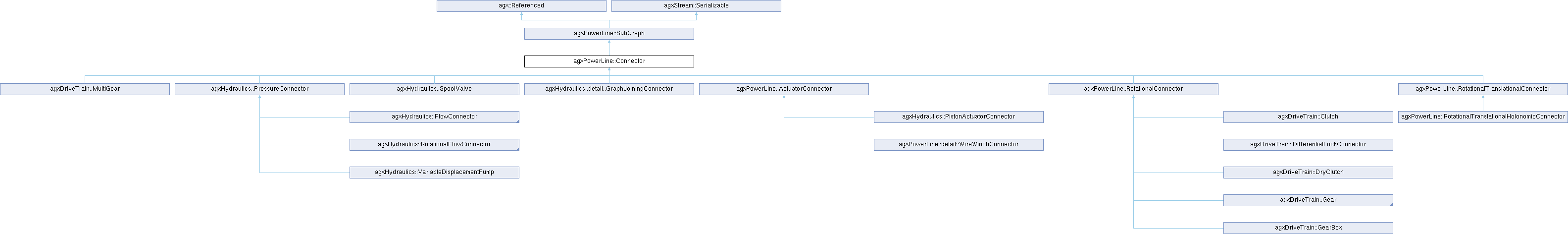

Inheritance diagram for agxPowerLine::Connector:

Public Member Functions
	Connector ()
	create a connector

virtual bool	addNotification (agxSDK::Simulation *simulation) override

	AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE (agxPowerLine::Connector)

virtual agx::RegularizationParameters::VariableType	calculateComplianceAndDamping (const agx::Real, agx::Real &, agx::Real &)
	Calculate the compliance and damping according to the connector properties (efficiency, ratio, ..)

agx::Real	calculateEfficiency () const
	calculate simulated efficiency

virtual agx::Real	calculateViolation () const
	calculate violation for constraint

bool	compareWithInputTypes (PhysicalDimensionRefVector &dimensions) const

bool	compareWithOutputTypes (PhysicalDimensionRefVector &dimensions) const

bool	connect (agxPowerLine::PhysicalDimension *dimension, agxPowerLine::Side connectorSide, agxPowerLine::Side dimensionSide)
	Connect on the physical dimension level only.

virtual bool	connect (agxPowerLine::PhysicalDimension inputDimension, agxPowerLine::Side inputSide, agxPowerLine::Side outputSide, agxPowerLine::PhysicalDimension outputDimension)

virtual bool	connect (agxPowerLine::Side mySide, agxPowerLine::Side unitSide, agxPowerLine::Unit *unit)

virtual bool	connect (agxPowerLine::Unit *unit)
	Connect a unit to this Connector.

bool	connectDimensions (Unit *unit, agxPowerLine::Side mySide, agxPowerLine::Side unitSide)

virtual agxPowerLine::PhysicalDimensionMultiBodyConstraintImplementation *	createConstraint ()=0
	Create the constraint (implement this to create whatever constraint you need)

virtual bool	disconnect ()

bool	disconnect (agxPowerLine::PhysicalDimension *dimension, agxPowerLine::Side connectorSide, agxPowerLine::Side dimensionSide)

virtual bool	disconnect (agxPowerLine::Unit *unit)
	Disconnect the given unit from this Connector.

agxPowerLine::Connection *	findConnection (const agxPowerLine::Unit *unit, agxPowerLine::Side side)

const agxPowerLine::Connection *	findConnection (const agxPowerLine::Unit *unit, agxPowerLine::Side side) const

agxPowerLine::Connection *	findInputConnection (const agxPowerLine::Unit *unit)

const agxPowerLine::Connection *	findInputConnection (const agxPowerLine::Unit *unit) const

agxPowerLine::Connection *	findOutputConnection (const agxPowerLine::Unit *unit)

const agxPowerLine::Connection *	findOutputConnection (const agxPowerLine::Unit *unit) const

const agxPowerLine::ConnectionRefVector &	getConnections (agxPowerLine::Side side) const

agxPowerLine::PhysicalDimensionMultiBodyConstraintImplementation *	getConstraint () const

agx::Real	getDamping () const

agxPowerLine::ElementaryPhysicalDimensionConstraint *	getElementaryConstraint () const

bool	getIgnoreForStoreRestoreStream () const

agxPowerLine::Connection *	getInputConnection (size_t index)
	return a specific input connection

const agxPowerLine::Connection *	getInputConnection (size_t index) const
	return a specific output connection

agxPowerLine::ConnectionRefVector &	getInputConnections ()
	return vector to all input connections from this connector

const agxPowerLine::ConnectionRefVector &	getInputConnections () const
	return vector to all input connections from this connector

PhysicalDimension *	getInputDimension (const PhysicalDimension::Type dimensionType) const

const DimensionTypeVector &	getInputTypes () const

bool	getInputUnits (UnitConstPtrSetVector &units, const bool startFromCleanUnitSet=true) const

bool	getInputUnits (UnitPtrSetVector &units, const bool startFromCleanUnitSet=true)

int	getNumConnections () const

int	getNumConnections (agxPowerLine::Side side) const

int	getNumFreeConnections () const

int	getNumFreeConnections (agxPowerLine::Side side) const

int	getNumFreeInputConnections () const

int	getNumFreeOutputConnections () const

int	getNumInputConnections () const

int	getNumOutputConnections () const

int	getNumPossibleInputConnections () const

int	getNumPossibleOutputConnections () const

agxPowerLine::Connection *	getOutputConnection (size_t index)
	return a specific input connection

const agxPowerLine::Connection *	getOutputConnection (size_t index) const
	return a specific output connection

agxPowerLine::ConnectionRefVector &	getOutputConnections ()
	return vector to all output connections from this connector

const agxPowerLine::ConnectionRefVector &	getOutputConnections () const
	return vector to all output connections from this connector

PhysicalDimension *	getOutputDimension (const PhysicalDimension::Type dimensionType) const

const DimensionTypeVector &	getOutputTypes () const

bool	getOutputUnits (UnitConstPtrSetVector &units, const bool startFromCleanUnitSet=true) const

bool	getOutputUnits (UnitPtrSetVector &units, const bool startFromCleanUnitSet=true)

agx::Real	getPowerIn () const

agxPowerLine::PowerLine *	getPowerLine () const

agx::Real	getPowerOut () const

agx::Real	getRatio () const

virtual agx::Real	getRatio (agx::Real x) const

agx::Real	getRatioDerivative () const

virtual agx::Real	getRatioDerivative (agx::Real x) const

virtual agxPowerLine::Side	getSide (const agxPowerLine::Unit *unit) const

const DimensionTypeVector &	getTypes (agxPowerLine::Side side) const

bool	getUnits (UnitConstPtrSetVector &units, agxPowerLine::Side side, const bool startFromCleanUnitSet=true) const

bool	getUnits (UnitConstPtrSetVector &units, const bool startFromCleanUnitSet=true) const

bool	getUnits (UnitPtrSetVector &units, agxPowerLine::Side side, const bool startFromCleanUnitSet=true)

bool	getUnits (UnitPtrSetVector &units, const bool startFromCleanUnitSet=true)

virtual agx::Real	getViolation () const
	Returns the constraint violation for connectors with holonomic constraints.

bool	hasFreeConnection () const

bool	hasFreeConnection (agxPowerLine::Side side) const

bool	hasFreeInputConnection () const

bool	hasFreeOutputConnection () const

bool	hasInputConnection (Connection *connection)
	Find out if the connection belongs to this connector.

bool	hasOutputConnection (Connection *connection)

virtual void	initConstraint ()

bool	isConstraintValid () const

virtual bool	isInput (const agxPowerLine::PhysicalDimension *dimension) const
	Determine if the given dimension is part of any of the input connections of this Connector.

virtual bool	isOutput (Connection *connection) const
	Find out if a connection is output from this connector.

virtual bool	isOutput (const agxPowerLine::PhysicalDimension *dimension) const
	Find out if the given dimension is part of any of the output connections.

virtual bool	postRestore (agxStream::StorageStream &str)

virtual bool	postStore (agxStream::StorageStream &str) const
	Set values of constraints.

virtual bool	removeNotification (agxUtil::ConstraintHolder holder, agxSDK::Simulation simulation) override
	remove connector and constraint from simulation

virtual void	restore (agxStream::InputArchive &in) override

virtual bool	restore (agxStream::StorageStream &str) override
	Restores internal data from stream.

void	setConstraint (agxPowerLine::PhysicalDimensionMultiBodyConstraintImplementation *constraint)
	set the constraint that represents this connector in the solver.

void	setDamping (agx::Real damping)
	Set the damping of the constraint.

void	setIgnoreForStoreRestoreStream (bool ignore)

void	setNumPossibleInputConnections (int num)
	Define number of input dimensions the constraint should handle.

void	setNumPossibleOutputConnections (int num)
	Define number of output dimensions the constraint should handle.

void	setPowerLine (agxPowerLine::PowerLine *powerLine)

virtual void	store (agxStream::OutputArchive &out) const override

virtual bool	store (agxStream::StorageStream &str) const override
	Stores internal data for this segment into stream.

virtual bool	vetoConnect (agxPowerLine::Unit *unit) const

Public Member Functions inherited from agxPowerLine::SubGraph
	SubGraph ()

virtual bool	addNotification (agxSDK::Simulation *simulation)=0

	AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE (agxPowerLine::SubGraph)

virtual void	getConnectorsRecursive (ConnectorPtrVector &connectors)
	Fill the given vector with the Connectors that are held by this SubGraph.

Connector *	getEnclosingConnector ()

const Connector *	getEnclosingConnector () const

SubGraph *	getEnclosingGraph ()

const SubGraph *	getEnclosingGraph () const

Unit *	getEnclosingUnit ()

const Unit *	getEnclosingUnit () const

const agxPowerLine::ConnectorRefVector &	getInternalConnectors () const

const agxPowerLine::UnitRefVector &	getInternalUnits () const

const agx::Name &	getName () const

SubGraph *	getRootEnclosingGraph ()

const SubGraph *	getRootEnclosingGraph () const

virtual void	getUnitsRecursive (UnitPtrVector &units)
	Fill the given vector with the Units that are held by this SubGraph.

bool	isEnclosedWithin (const SubGraph *component) const

virtual bool	postUpdate (agx::Real timeStep)

virtual void	prepareForRestore ()

virtual void	prepareForStore ()

virtual bool	preUpdate (agx::Real timeStep)

virtual bool	removeNotification (agxUtil::ConstraintHolder holder, agxSDK::Simulation simulation)=0

virtual void	restore (agxStream::InputArchive &in) override

virtual bool	restore (agxStream::StorageStream &str)
	Restores internal data from stream.

void	setName (const agx::Name &name)
	Set the name of this power line component.

void	spreadPowerLineToGraph ()

virtual void	store (agxStream::OutputArchive &out) const override

virtual bool	store (agxStream::StorageStream &str) const
	Stores internal data into stream.

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Public Member Functions inherited from agxStream::Serializable
virtual	~Serializable ()
	Destructor for normal C++ use but hidden from SWIG bindings.

virtual const char *	getClassName () const

bool	getEnableSerialization () const

bool	getEnableUuidGeneration ()

agx::UInt32	getIndex () const
	This index is given at creation of this object.

virtual StorageAgent *	getStorageAgent () const =0

agx::Uuid	getUuid () const

bool	isFinished () const

void	setEnableSerialization (bool flag)
	Set to false to disable serialization of this object.

void	setFinished ()
	Tells this class that it is restored correctly and should not be deleted during destruction of an Archive.

void	setUuid (const agx::Uuid &uuid)
	Explicitly set a Uuid on a serializable object.

Static Public Member Functions
static PhysicalDimension *	getDimension (const ConnectionRefVector &connections, const PhysicalDimension::Type dimensionType)

Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Static Public Member Functions inherited from agxStream::Serializable
static void	setEnableUuidGeneration (bool flag)
	Specify if there should be UUID:s generated for each new Serializable object. By default it is enabled.

Protected Member Functions
virtual	~Connector ()

virtual bool	connect (agxPowerLine::Unit inputUnit, agxPowerLine::Side inputUnitSide, agxPowerLine::Side outputUnitSide, agxPowerLine::Unit outputUnit)

bool	getUnits (UnitConstPtrSetVector &units, const ConnectionRefVector &connections, const bool startFromCleanUnitSet=true) const

bool	getUnits (UnitPtrSetVector &units, ConnectionRefVector &connections, const bool startFromCleanUnitSet=true)

bool	hasNonValidInputConnection () const

bool	hasNonValidOutputConnection () const

void	setRatio (agx::Real ratio)
	set/get the ratio (scaling of load through the constraint).

void	setRatioDerivative (agx::Real ratioDerivative)

void	uninitialize ()

Protected Member Functions inherited from agxPowerLine::SubGraph
virtual	~SubGraph ()

void	addInternalConnector (agxPowerLine::Connector *connector)

void	addInternalUnit (agxPowerLine::Unit *unit)

void	removeInternalConnector (agxPowerLine::Connector *connector)

void	removeInternalUnit (agxPowerLine::Unit *unit)

agx::Bool	replaceInternalUnit (agxPowerLine::Unit oldUnit, agxPowerLine::Unit newUnit)

Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Protected Member Functions inherited from agxStream::Serializable
	Serializable ()
	Default constructor.

	Serializable (const Serializable &other)
	Copy constructor.

void	generateUuid ()

Protected Attributes
PhysicalDimensionMultiBodyConstraintImplementation *	m_constraint

agx::Real	m_damping

bool	m_ignoreMeForStoreRestoreStream

ConnectionRefVector	m_inputConnections

DimensionTypeVector	m_inputTypes

int	m_numPossibleInputs

int	m_numPossibleOutputs

ConnectionRefVector	m_outputConnections

DimensionTypeVector	m_outputTypes

agx::Real	m_ratio

agx::Real	m_ratioDerivative

Protected Attributes inherited from agxPowerLine::SubGraph
SubGraphObserver	m_enclosingGraph

ConnectorRefVector	m_internalConnectors

UnitRefVector	m_internalUnits

agx::Name	m_name

PowerLine *	m_powerLine

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Additional Inherited Members
Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Detailed Description

Links two connections together.

Also defines the constraint between the two connected units.

Definition at line 52 of file Connector.h.

Constructor & Destructor Documentation

◆ Connector()

agxPowerLine::Connector::Connector ( )

create a connector

◆ ~Connector()

virtual agxPowerLine::Connector::~Connector ( )

protectedvirtual

Member Function Documentation

◆ addNotification()

virtual bool agxPowerLine::Connector::addNotification ( agxSDK::Simulation * simulation )

overridevirtual

Implements agxPowerLine::SubGraph.

Reimplemented in agxDriveTrain::Clutch, and agxDriveTrain::DryClutch.

◆ AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE()

agxPowerLine::Connector::AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE ( agxPowerLine::Connector )

◆ calculateComplianceAndDamping()

virtual agx::RegularizationParameters::VariableType agxPowerLine::Connector::calculateComplianceAndDamping	(	const agx::Real	,
		agx::Real &	,
		agx::Real &
	)

virtual

Calculate the compliance and damping according to the connector properties (efficiency, ratio, ..)

Reimplemented in agxDriveTrain::Clutch, agxDriveTrain::deprecated::TorqueConverter, agxDriveTrain::Differential, agxDriveTrain::DryClutch, agxDriveTrain::SlipGear, agxDriveTrain::HolonomicGear, agxDriveTrain::GearBox, agxHydraulics::VariableDisplacementPump, agxPowerLine::RotationalConnector, agxPowerLine::RotationalTranslationalConnector, and agxPowerLine::RotationalTranslationalHolonomicConnector.

◆ calculateEfficiency()

agx::Real agxPowerLine::Connector::calculateEfficiency ( ) const

calculate simulated efficiency

◆ calculateViolation()

virtual agx::Real agxPowerLine::Connector::calculateViolation ( ) const

virtual

calculate violation for constraint

Reimplemented in agxDriveTrain::HolonomicGear, and agxPowerLine::RotationalTranslationalHolonomicConnector.

◆ compareWithInputTypes()

bool agxPowerLine::Connector::compareWithInputTypes ( PhysicalDimensionRefVector & dimensions ) const

◆ compareWithOutputTypes()

bool agxPowerLine::Connector::compareWithOutputTypes ( PhysicalDimensionRefVector & dimensions ) const

◆ connect() [1/5]

bool agxPowerLine::Connector::connect	(	agxPowerLine::PhysicalDimension *	dimension,
		agxPowerLine::Side	connectorSide,
		agxPowerLine::Side	dimensionSide
	)

Connect on the physical dimension level only.

Will not update the parent Unit's root node and will not spread the power line over the graph.

◆ connect() [2/5]

virtual bool agxPowerLine::Connector::connect	(	agxPowerLine::PhysicalDimension *	inputDimension,
		agxPowerLine::Side	inputSide,
		agxPowerLine::Side	outputSide,
		agxPowerLine::PhysicalDimension *	outputDimension
	)

virtual

Reimplemented in agxPowerLine::RotationalTranslationalConnector, and agxPowerLine::RotationalTranslationalConnector.

◆ connect() [3/5]

virtual bool agxPowerLine::Connector::connect	(	agxPowerLine::Side	mySide,
		agxPowerLine::Side	unitSide,
		agxPowerLine::Unit *	unit
	)

virtual

Reimplemented in agxDriveTrain::MultiGear, agxPowerLine::RotationalTranslationalConnector, agxDriveTrain::Differential, agxHydraulics::detail::SpoolValveConnector, agxHydraulics::FlowConnector, and agxHydraulics::SpoolValve.

◆ connect() [4/5]

virtual bool agxPowerLine::Connector::connect	(	agxPowerLine::Unit *	inputUnit,
		agxPowerLine::Side	inputUnitSide,
		agxPowerLine::Side	outputUnitSide,
		agxPowerLine::Unit *	outputUnit
	)

protectedvirtual

Reimplemented in agxPowerLine::RotationalTranslationalConnector, and agxHydraulics::FlowConnector.

◆ connect() [5/5]

virtual bool agxPowerLine::Connector::connect ( agxPowerLine::Unit * unit )

virtual

Connect a unit to this Connector.

Reimplemented in agxPowerLine::RotationalTranslationalConnector, and agxDriveTrain::MultiGear.

◆ connectDimensions()

bool agxPowerLine::Connector::connectDimensions	(	Unit *	unit,
		agxPowerLine::Side	mySide,
		agxPowerLine::Side	unitSide
	)

◆ createConstraint()

virtual agxPowerLine::PhysicalDimensionMultiBodyConstraintImplementation * agxPowerLine::Connector::createConstraint ( )

pure virtual

Create the constraint (implement this to create whatever constraint you need)

Returns: the created constraint

Implemented in agxDriveTrain::DryClutch, agxDriveTrain::HolonomicGear, agxHydraulics::detail::SpoolValveConnector, agxHydraulics::detail::GraphJoiningConnector, agxHydraulics::Motor, agxPowerLine::RotationalConnector, and agxPowerLine::RotationalTranslationalConnector.

◆ disconnect() [1/3]

virtual bool agxPowerLine::Connector::disconnect ( )

virtual

Reimplemented in agxHydraulics::SpoolValve.

◆ disconnect() [2/3]

bool agxPowerLine::Connector::disconnect	(	agxPowerLine::PhysicalDimension *	dimension,
		agxPowerLine::Side	connectorSide,
		agxPowerLine::Side	dimensionSide
	)

◆ disconnect() [3/3]

virtual bool agxPowerLine::Connector::disconnect ( agxPowerLine::Unit * unit )

virtual

Disconnect the given unit from this Connector.

Will reduce the refCount of the Connector, so the instance may have been deleted when this method returns. Keep an extra ConnectorRef, at the call site of elsewhere, to avoid this.

Reimplemented in agxDriveTrain::Differential, agxDriveTrain::MultiGear, and agxHydraulics::SpoolValve.

◆ findConnection() [1/2]

agxPowerLine::Connection * agxPowerLine::Connector::findConnection	(	const agxPowerLine::Unit *	unit,
		agxPowerLine::Side	side
	)

◆ findConnection() [2/2]

const agxPowerLine::Connection * agxPowerLine::Connector::findConnection	(	const agxPowerLine::Unit *	unit,
		agxPowerLine::Side	side
	)		const

◆ findInputConnection() [1/2]

agxPowerLine::Connection * agxPowerLine::Connector::findInputConnection ( const agxPowerLine::Unit * unit )

◆ findInputConnection() [2/2]

const agxPowerLine::Connection * agxPowerLine::Connector::findInputConnection ( const agxPowerLine::Unit * unit ) const

◆ findOutputConnection() [1/2]

agxPowerLine::Connection * agxPowerLine::Connector::findOutputConnection ( const agxPowerLine::Unit * unit )

◆ findOutputConnection() [2/2]

const agxPowerLine::Connection * agxPowerLine::Connector::findOutputConnection ( const agxPowerLine::Unit * unit ) const

◆ getConnections()

const agxPowerLine::ConnectionRefVector & agxPowerLine::Connector::getConnections ( agxPowerLine::Side side ) const

◆ getConstraint()

agxPowerLine::PhysicalDimensionMultiBodyConstraintImplementation * agxPowerLine::Connector::getConstraint ( ) const

Returns: the constraint representing this connector in the solver.

◆ getDamping()

agx::Real agxPowerLine::Connector::getDamping ( ) const

◆ getDimension()

static PhysicalDimension * agxPowerLine::Connector::getDimension	(	const ConnectionRefVector &	connections,
		const PhysicalDimension::Type	dimensionType
	)

static

◆ getElementaryConstraint()

agxPowerLine::ElementaryPhysicalDimensionConstraint * agxPowerLine::Connector::getElementaryConstraint ( ) const

Returns: The first elementary constraint in the constraint returned by getConstraint(), or nullptr if there is no constraint.

◆ getIgnoreForStoreRestoreStream()

bool agxPowerLine::Connector::getIgnoreForStoreRestoreStream ( ) const

◆ getInputConnection() [1/2]

agxPowerLine::Connection * agxPowerLine::Connector::getInputConnection ( size_t index )

return a specific input connection

◆ getInputConnection() [2/2]

const agxPowerLine::Connection * agxPowerLine::Connector::getInputConnection ( size_t index ) const

return a specific output connection

◆ getInputConnections() [1/2]

agxPowerLine::ConnectionRefVector & agxPowerLine::Connector::getInputConnections ( )

return vector to all input connections from this connector

◆ getInputConnections() [2/2]

const agxPowerLine::ConnectionRefVector & agxPowerLine::Connector::getInputConnections ( ) const

return vector to all input connections from this connector

◆ getInputDimension()

PhysicalDimension * agxPowerLine::Connector::getInputDimension ( const PhysicalDimension::Type dimensionType ) const

◆ getInputTypes()

const DimensionTypeVector & agxPowerLine::Connector::getInputTypes ( ) const

◆ getInputUnits() [1/2]

bool agxPowerLine::Connector::getInputUnits	(	UnitConstPtrSetVector &	units,
		const bool	startFromCleanUnitSet = `true`
	)		const

◆ getInputUnits() [2/2]

bool agxPowerLine::Connector::getInputUnits	(	UnitPtrSetVector &	units,
		const bool	startFromCleanUnitSet = `true`
	)

◆ getNumConnections() [1/2]

int agxPowerLine::Connector::getNumConnections ( ) const

◆ getNumConnections() [2/2]

int agxPowerLine::Connector::getNumConnections ( agxPowerLine::Side side ) const

◆ getNumFreeConnections() [1/2]

int agxPowerLine::Connector::getNumFreeConnections ( ) const

◆ getNumFreeConnections() [2/2]

int agxPowerLine::Connector::getNumFreeConnections ( agxPowerLine::Side side ) const

◆ getNumFreeInputConnections()

int agxPowerLine::Connector::getNumFreeInputConnections ( ) const

◆ getNumFreeOutputConnections()

int agxPowerLine::Connector::getNumFreeOutputConnections ( ) const

◆ getNumInputConnections()

int agxPowerLine::Connector::getNumInputConnections ( ) const

◆ getNumOutputConnections()

int agxPowerLine::Connector::getNumOutputConnections ( ) const

◆ getNumPossibleInputConnections()

int agxPowerLine::Connector::getNumPossibleInputConnections ( ) const

Returns: number of input dimensions the constraint can handle.

◆ getNumPossibleOutputConnections()

int agxPowerLine::Connector::getNumPossibleOutputConnections ( ) const

Returns: number of output dimensions the constraint can handle.

◆ getOutputConnection() [1/2]

agxPowerLine::Connection * agxPowerLine::Connector::getOutputConnection ( size_t index )

return a specific input connection

◆ getOutputConnection() [2/2]

const agxPowerLine::Connection * agxPowerLine::Connector::getOutputConnection ( size_t index ) const

return a specific output connection

◆ getOutputConnections() [1/2]

agxPowerLine::ConnectionRefVector & agxPowerLine::Connector::getOutputConnections ( )

return vector to all output connections from this connector

◆ getOutputConnections() [2/2]

const agxPowerLine::ConnectionRefVector & agxPowerLine::Connector::getOutputConnections ( ) const

return vector to all output connections from this connector

◆ getOutputDimension()

PhysicalDimension * agxPowerLine::Connector::getOutputDimension ( const PhysicalDimension::Type dimensionType ) const

◆ getOutputTypes()

const DimensionTypeVector & agxPowerLine::Connector::getOutputTypes ( ) const

◆ getOutputUnits() [1/2]

bool agxPowerLine::Connector::getOutputUnits	(	UnitConstPtrSetVector &	units,
		const bool	startFromCleanUnitSet = `true`
	)		const

◆ getOutputUnits() [2/2]

bool agxPowerLine::Connector::getOutputUnits	(	UnitPtrSetVector &	units,
		const bool	startFromCleanUnitSet = `true`
	)

◆ getPowerIn()

agx::Real agxPowerLine::Connector::getPowerIn ( ) const

◆ getPowerLine()

agxPowerLine::PowerLine * agxPowerLine::Connector::getPowerLine ( ) const

◆ getPowerOut()

agx::Real agxPowerLine::Connector::getPowerOut ( ) const

◆ getRatio() [1/2]

agx::Real agxPowerLine::Connector::getRatio ( ) const

◆ getRatio() [2/2]

virtual agx::Real agxPowerLine::Connector::getRatio ( agx::Real x ) const

virtual

◆ getRatioDerivative() [1/2]

agx::Real agxPowerLine::Connector::getRatioDerivative ( ) const

◆ getRatioDerivative() [2/2]

virtual agx::Real agxPowerLine::Connector::getRatioDerivative ( agx::Real x ) const

virtual

◆ getSide()

virtual agxPowerLine::Side agxPowerLine::Connector::getSide ( const agxPowerLine::Unit * unit ) const

virtual

◆ getTypes()

const DimensionTypeVector & agxPowerLine::Connector::getTypes ( agxPowerLine::Side side ) const

◆ getUnits() [1/6]

bool agxPowerLine::Connector::getUnits	(	UnitConstPtrSetVector &	units,
		agxPowerLine::Side	side,
		const bool	startFromCleanUnitSet = `true`
	)		const

◆ getUnits() [2/6]

bool agxPowerLine::Connector::getUnits	(	UnitConstPtrSetVector &	units,
		const bool	startFromCleanUnitSet = `true`
	)		const

◆ getUnits() [3/6]

bool agxPowerLine::Connector::getUnits	(	UnitConstPtrSetVector &	units,
		const ConnectionRefVector &	connections,
		const bool	startFromCleanUnitSet = `true`
	)		const

protected

◆ getUnits() [4/6]

bool agxPowerLine::Connector::getUnits	(	UnitPtrSetVector &	units,
		agxPowerLine::Side	side,
		const bool	startFromCleanUnitSet = `true`
	)

◆ getUnits() [5/6]

bool agxPowerLine::Connector::getUnits	(	UnitPtrSetVector &	units,
		ConnectionRefVector &	connections,
		const bool	startFromCleanUnitSet = `true`
	)

protected

◆ getUnits() [6/6]

bool agxPowerLine::Connector::getUnits	(	UnitPtrSetVector &	units,
		const bool	startFromCleanUnitSet = `true`
	)

◆ getViolation()

virtual agx::Real agxPowerLine::Connector::getViolation ( ) const

virtual

Returns the constraint violation for connectors with holonomic constraints.

◆ hasFreeConnection() [1/2]

bool agxPowerLine::Connector::hasFreeConnection ( ) const

◆ hasFreeConnection() [2/2]

bool agxPowerLine::Connector::hasFreeConnection ( agxPowerLine::Side side ) const

◆ hasFreeInputConnection()

bool agxPowerLine::Connector::hasFreeInputConnection ( ) const

◆ hasFreeOutputConnection()

bool agxPowerLine::Connector::hasFreeOutputConnection ( ) const

◆ hasInputConnection()

bool agxPowerLine::Connector::hasInputConnection ( Connection * connection )

Find out if the connection belongs to this connector.

◆ hasNonValidInputConnection()

bool agxPowerLine::Connector::hasNonValidInputConnection ( ) const

protected

◆ hasNonValidOutputConnection()

bool agxPowerLine::Connector::hasNonValidOutputConnection ( ) const

protected

◆ hasOutputConnection()

bool agxPowerLine::Connector::hasOutputConnection ( Connection * connection )

Returns: true if if the connection belongs to this connector.

◆ initConstraint()

virtual void agxPowerLine::Connector::initConstraint ( )

virtual

Reimplemented in agxDriveTrain::DifferentialLockConnector, and agxDriveTrain::GearBox.

◆ isConstraintValid()

bool agxPowerLine::Connector::isConstraintValid ( ) const

◆ isInput()

virtual bool agxPowerLine::Connector::isInput ( const agxPowerLine::PhysicalDimension * dimension ) const

virtual

Determine if the given dimension is part of any of the input connections of this Connector.

Parameters

dimension - The dimension to look for.

Returns: True if the dimension was found on the input side of this Connector. False otherwise.

◆ isOutput() [1/2]

virtual bool agxPowerLine::Connector::isOutput ( Connection * connection ) const

virtual

Find out if a connection is output from this connector.

◆ isOutput() [2/2]

virtual bool agxPowerLine::Connector::isOutput ( const agxPowerLine::PhysicalDimension * dimension ) const

virtual

Find out if the given dimension is part of any of the output connections.

◆ postRestore()

virtual bool agxPowerLine::Connector::postRestore ( agxStream::StorageStream & str )

virtual

Reimplemented in agxDriveTrain::Clutch, agxDriveTrain::DryClutch, and agxHydraulics::detail::SpoolValveConnector.

◆ postStore()

virtual bool agxPowerLine::Connector::postStore ( agxStream::StorageStream & str ) const

virtual

Set values of constraints.

Must be called after the constraints are created.

Reimplemented in agxDriveTrain::Clutch, agxDriveTrain::DryClutch, and agxHydraulics::detail::SpoolValveConnector.

◆ removeNotification()

virtual bool agxPowerLine::Connector::removeNotification	(	agxUtil::ConstraintHolder *	holder,
		agxSDK::Simulation *	simulation
	)

overridevirtual

remove connector and constraint from simulation

Implements agxPowerLine::SubGraph.

Reimplemented in agxDriveTrain::Differential, and agxDriveTrain::HolonomicGear.

◆ restore() [1/2]

virtual void agxPowerLine::Connector::restore ( agxStream::InputArchive & in )

overridevirtual

Reimplemented from agxPowerLine::SubGraph.

Reimplemented in agxPowerLine::ActuatorConnector.

◆ restore() [2/2]

virtual bool agxPowerLine::Connector::restore ( agxStream::StorageStream & str )

overridevirtual

Restores internal data from stream.

Reimplemented from agxPowerLine::SubGraph.

Reimplemented in agxHydraulics::PressureConnector, agxDriveTrain::Clutch, agxDriveTrain::deprecated::HighLevelDifferential, agxDriveTrain::deprecated::TorqueConverter, agxDriveTrain::DifferentialLockConnector, agxDriveTrain::Differential, agxDriveTrain::Gear, agxDriveTrain::SlipGear, agxDriveTrain::HolonomicGear, agxDriveTrain::GearBox, agxHydraulics::detail::SpoolValveConnector, agxHydraulics::detail::GraphJoiningConnector, agxPowerLine::ActuatorConnector, agxPowerLine::RotationalConnector, agxPowerLine::RotationalTranslationalConnector, and agxPowerLine::RotationalTranslationalHolonomicConnector.

◆ setConstraint()

void agxPowerLine::Connector::setConstraint ( agxPowerLine::PhysicalDimensionMultiBodyConstraintImplementation * constraint )

set the constraint that represents this connector in the solver.

◆ setDamping()

void agxPowerLine::Connector::setDamping ( agx::Real damping )

Set the damping of the constraint.

◆ setIgnoreForStoreRestoreStream()

void agxPowerLine::Connector::setIgnoreForStoreRestoreStream ( bool ignore )

◆ setNumPossibleInputConnections()

void agxPowerLine::Connector::setNumPossibleInputConnections ( int num )

Define number of input dimensions the constraint should handle.

◆ setNumPossibleOutputConnections()

void agxPowerLine::Connector::setNumPossibleOutputConnections ( int num )

Define number of output dimensions the constraint should handle.

◆ setPowerLine()

void agxPowerLine::Connector::setPowerLine ( agxPowerLine::PowerLine * powerLine )

◆ setRatio()

void agxPowerLine::Connector::setRatio ( agx::Real ratio )

protected

set/get the ratio (scaling of load through the constraint).

◆ setRatioDerivative()

void agxPowerLine::Connector::setRatioDerivative ( agx::Real ratioDerivative )

protected

◆ store() [1/2]

virtual void agxPowerLine::Connector::store ( agxStream::OutputArchive & out ) const

overridevirtual

Reimplemented from agxPowerLine::SubGraph.

Reimplemented in agxPowerLine::ActuatorConnector.

◆ store() [2/2]

virtual bool agxPowerLine::Connector::store ( agxStream::StorageStream & str ) const

overridevirtual

Stores internal data for this segment into stream.

Reimplemented from agxPowerLine::SubGraph.

Reimplemented in agxHydraulics::PressureConnector, agxDriveTrain::Clutch, agxDriveTrain::deprecated::HighLevelDifferential, agxDriveTrain::deprecated::TorqueConverter, agxDriveTrain::DifferentialLockConnector, agxDriveTrain::Differential, agxDriveTrain::Gear, agxDriveTrain::SlipGear, agxDriveTrain::HolonomicGear, agxDriveTrain::GearBox, agxHydraulics::detail::SpoolValveConnector, agxHydraulics::detail::GraphJoiningConnector, agxPowerLine::ActuatorConnector, agxPowerLine::RotationalConnector, agxPowerLine::RotationalTranslationalConnector, and agxPowerLine::RotationalTranslationalHolonomicConnector.

◆ uninitialize()

void agxPowerLine::Connector::uninitialize ( )

protected

◆ vetoConnect()

virtual bool agxPowerLine::Connector::vetoConnect ( agxPowerLine::Unit * unit ) const

virtual

Reimplemented in agxHydraulics::detail::SpoolValveConnector.

Member Data Documentation

◆ m_constraint

PhysicalDimensionMultiBodyConstraintImplementation* agxPowerLine::Connector::m_constraint

protected

Definition at line 396 of file Connector.h.

◆ m_damping

agx::Real agxPowerLine::Connector::m_damping

protected

Definition at line 392 of file Connector.h.

◆ m_ignoreMeForStoreRestoreStream

bool agxPowerLine::Connector::m_ignoreMeForStoreRestoreStream

protected

Definition at line 398 of file Connector.h.

◆ m_inputConnections

ConnectionRefVector agxPowerLine::Connector::m_inputConnections

protected

Definition at line 387 of file Connector.h.

◆ m_inputTypes

DimensionTypeVector agxPowerLine::Connector::m_inputTypes

protected

Definition at line 389 of file Connector.h.

◆ m_numPossibleInputs

int agxPowerLine::Connector::m_numPossibleInputs

protected

Definition at line 385 of file Connector.h.

◆ m_numPossibleOutputs

int agxPowerLine::Connector::m_numPossibleOutputs

protected

Definition at line 386 of file Connector.h.

◆ m_outputConnections

ConnectionRefVector agxPowerLine::Connector::m_outputConnections

protected

Definition at line 388 of file Connector.h.

◆ m_outputTypes

DimensionTypeVector agxPowerLine::Connector::m_outputTypes

protected

Definition at line 390 of file Connector.h.

◆ m_ratio

agx::Real agxPowerLine::Connector::m_ratio

protected

Definition at line 394 of file Connector.h.

◆ m_ratioDerivative

agx::Real agxPowerLine::Connector::m_ratioDerivative

protected

Definition at line 395 of file Connector.h.

The documentation for this class was generated from the following file:

Connector.h
