Pure virtual class. More...

#include <Unit.h>

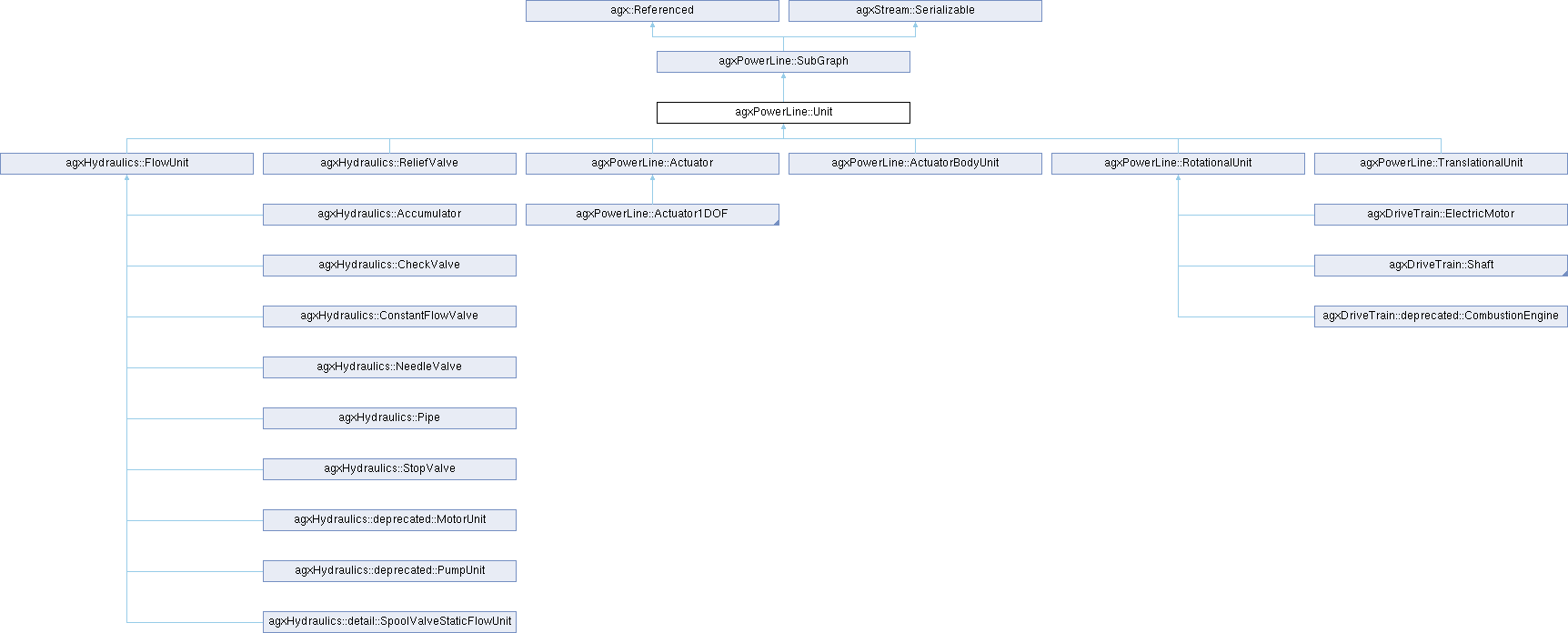

Inheritance diagram for agxPowerLine::Unit:

Public Member Functions
	Unit ()
	Constructor.

void	addNotification (agxPowerLine::PowerLine *powerLine)

	AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE (agxPowerLine::Unit)

void	attach (agx::RigidBody *body)
	Define which body in the simulation this Unit is attached to.

agx::String	buildDimensionsName () const

virtual bool	connect (agxPowerLine::Connector *connector)
	Connect the unit to a connector.

virtual bool	connect (agxPowerLine::Side mySide, agxPowerLine::Side connectorSide, agxPowerLine::Connector *connector)
	Connect the unit to a connector, specifying the side of each.

virtual bool	connect (agxPowerLine::Side mySide, agxPowerLine::Side otherSide, agxPowerLine::Unit *other)

virtual bool	connect (agxPowerLine::Unit *otherUnit)
	Connect the unit to another unit.

virtual bool	disconnect (agxPowerLine::Unit *unit)

void	disconnectAll ()

agxPowerLine::PhysicalDimension *	getActiveDimension (size_t index)

const agxPowerLine::PhysicalDimension *	getActiveDimension (size_t index) const

virtual agxPowerLine::DimensionAndSide	getConnectableDimension (agxPowerLine::PhysicalDimension::Type type, agxPowerLine::Side side)

virtual void	getConnectableDimensionTypes (agxPowerLine::PhysicalDimension::TypeVector &types, agxPowerLine::Side side) const

agxPowerLine::PhysicalDimension *	getConnectableInputDimension (agxPowerLine::PhysicalDimension::Type type)

agxPowerLine::PhysicalDimension *	getConnectableOutputDimension (agxPowerLine::PhysicalDimension::Type type)

void	getConnectedUnits (UnitPtrSetVector &result, agxPowerLine::Side side)

size_t	getConnectors (agxPowerLine::ConnectorPtrVector &result) const

size_t	getConnectors (const agxPowerLine::Unit *unit, agxPowerLine::ConnectorPtrVector &result)
	Append all connectors connecting this Unit to the given Unit to the 'result' Vector.

agxPowerLine::PhysicalDimension *	getDimension (agxPowerLine::PhysicalDimension::Type type)

const agxPowerLine::PhysicalDimension *	getDimension (agxPowerLine::PhysicalDimension::Type type) const

agxPowerLine::PhysicalDimensionRefVector &	getDimensions ()

const agxPowerLine::PhysicalDimensionRefVector &	getDimensions () const

Connector *	getFirstInputConnector (const agxPowerLine::Unit *unit) const

Connector *	getFirstOutputConnector (const agxPowerLine::Unit *unit) const

bool	getIgnoreForStoreRestoreStream () const

size_t	getInputConnectors (agxPowerLine::ConnectorPtrVector &result) const

size_t	getInputConnectors (const agxPowerLine::Unit *unit, agxPowerLine::ConnectorPtrVector &result)

size_t	getNumActiveDimensions () const
	The number of non-null PhysicalDimension in this Unit, not including internal Units.

virtual size_t	getNumConnectableDimensions (Side side) const

size_t	getNumConnections () const

size_t	getOutputConnectors (agxPowerLine::ConnectorPtrVector &result) const

size_t	getOutputConnectors (const agxPowerLine::Unit *unit, agxPowerLine::ConnectorPtrVector &result)

void	getOwnConnectedUnits (UnitPtrSetVector &unitSet, agxPowerLine::Side side, bool startFromCleanUnitSet=true) const

void	getOwnConnectedUnits (UnitPtrSetVector &unitSet, bool startFromCleanUnitSet=true) const
	Constructs the set of Units connected to this Unit's own dimensions.

agxPowerLine::PowerLine *	getPowerLine () const

agxPowerLine::Unit *	getRoot () const

agxPowerLine::Side	getSide (const Connector *connector) const

bool	hasConnector (const Connector *connector) const

virtual bool	isConnected (agxPowerLine::Unit *otherUnit) const

virtual bool	isValid () const

virtual bool	postRestore (agxStream::StorageStream &str)

virtual bool	postStore (agxStream::StorageStream &str) const

void	removeNotification (agxPowerLine::PowerLine *powerLine)

virtual void	restore (agxStream::InputArchive &in) override

virtual bool	restore (agxStream::StorageStream &str) override
	Restores internal data from stream.

void	setRoot (agxPowerLine::Unit *root)

void	spreadRootToGraph ()

virtual void	store (agxStream::OutputArchive &out) const override

virtual bool	store (agxStream::StorageStream &str) const override
	Stores internal data into stream.

virtual bool	vetoConnect (agxPowerLine::Connector *connector) const

Public Member Functions inherited from agxPowerLine::SubGraph
	SubGraph ()

virtual bool	addNotification (agxSDK::Simulation *simulation)=0

	AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE (agxPowerLine::SubGraph)

virtual void	getConnectorsRecursive (ConnectorPtrVector &connectors)
	Fill the given vector with the Connectors that are held by this SubGraph.

Connector *	getEnclosingConnector ()

const Connector *	getEnclosingConnector () const

SubGraph *	getEnclosingGraph ()

const SubGraph *	getEnclosingGraph () const

Unit *	getEnclosingUnit ()

const Unit *	getEnclosingUnit () const

const agxPowerLine::ConnectorRefVector &	getInternalConnectors () const

const agxPowerLine::UnitRefVector &	getInternalUnits () const

const agx::Name &	getName () const

SubGraph *	getRootEnclosingGraph ()

const SubGraph *	getRootEnclosingGraph () const

virtual void	getUnitsRecursive (UnitPtrVector &units)
	Fill the given vector with the Units that are held by this SubGraph.

bool	isEnclosedWithin (const SubGraph *component) const

virtual bool	postUpdate (agx::Real timeStep)

virtual void	prepareForRestore ()

virtual void	prepareForStore ()

virtual bool	preUpdate (agx::Real timeStep)

virtual bool	removeNotification (agxUtil::ConstraintHolder holder, agxSDK::Simulation simulation)=0

virtual void	restore (agxStream::InputArchive &in) override

virtual bool	restore (agxStream::StorageStream &str)
	Restores internal data from stream.

void	setName (const agx::Name &name)
	Set the name of this power line component.

void	spreadPowerLineToGraph ()

virtual void	store (agxStream::OutputArchive &out) const override

virtual bool	store (agxStream::StorageStream &str) const
	Stores internal data into stream.

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Public Member Functions inherited from agxStream::Serializable
virtual	~Serializable ()
	Destructor for normal C++ use but hidden from SWIG bindings.

virtual const char *	getClassName () const

bool	getEnableSerialization () const

bool	getEnableUuidGeneration ()

agx::UInt32	getIndex () const
	This index is given at creation of this object.

virtual StorageAgent *	getStorageAgent () const =0

agx::Uuid	getUuid () const

bool	isFinished () const

void	setEnableSerialization (bool flag)
	Set to false to disable serialization of this object.

void	setFinished ()
	Tells this class that it is restored correctly and should not be deleted during destruction of an Archive.

void	setUuid (const agx::Uuid &uuid)
	Explicitly set a Uuid on a serializable object.

Protected Member Functions
virtual	~Unit ()

bool	activateDimension (PhysicalDimension *dimension)

virtual bool	hasValidInputConnection () const
	returns if it is possible to connect to this unit

void	restorePre46 (agxStream::InputArchive &in)

void	setPowerLine (PowerLine *powerLine)
	Point to the power line the unit is a part of.

Protected Member Functions inherited from agxPowerLine::SubGraph
virtual	~SubGraph ()

void	addInternalConnector (agxPowerLine::Connector *connector)

void	addInternalUnit (agxPowerLine::Unit *unit)

void	removeInternalConnector (agxPowerLine::Connector *connector)

void	removeInternalUnit (agxPowerLine::Unit *unit)

agx::Bool	replaceInternalUnit (agxPowerLine::Unit oldUnit, agxPowerLine::Unit newUnit)

Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Protected Member Functions inherited from agxStream::Serializable
	Serializable ()
	Default constructor.

	Serializable (const Serializable &other)
	Copy constructor.

void	generateUuid ()

Protected Attributes
agx::observer_ptr< agx::RigidBody >	m_attachBody

PhysicalDimensionRefVector	m_dimensions

bool	m_ignoreMeForStoreRestoreStream

agxPowerLine::Unit *	m_rootUnit

Protected Attributes inherited from agxPowerLine::SubGraph
SubGraphObserver	m_enclosingGraph

ConnectorRefVector	m_internalConnectors

UnitRefVector	m_internalUnits

agx::Name	m_name

PowerLine *	m_powerLine

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Additional Inherited Members
Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Static Public Member Functions inherited from agxStream::Serializable
static void	setEnableUuidGeneration (bool flag)
	Specify if there should be UUID:s generated for each new Serializable object. By default it is enabled.

Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Detailed Description

Pure virtual class.

Definition at line 71 of file Unit.h.

Constructor & Destructor Documentation

◆ Unit()

agxPowerLine::Unit::Unit ( )

Constructor.

◆ ~Unit()

virtual agxPowerLine::Unit::~Unit ( )

protectedvirtual

Member Function Documentation

◆ activateDimension()

bool agxPowerLine::Unit::activateDimension ( PhysicalDimension * dimension )

protected

◆ addNotification()

void agxPowerLine::Unit::addNotification ( agxPowerLine::PowerLine * powerLine )

◆ AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE()

agxPowerLine::Unit::AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE ( agxPowerLine::Unit )

◆ attach()

void agxPowerLine::Unit::attach ( agx::RigidBody * body )

Define which body in the simulation this Unit is attached to.

If the body is nullptr the Unit is attached to world. This will override any parent body set to the power line the unit is a part of.

◆ buildDimensionsName()

agx::String agxPowerLine::Unit::buildDimensionsName ( ) const

Returns: A concatenation of the names of the bodies of the dimensions in this Unit.

◆ connect() [1/4]

virtual bool agxPowerLine::Unit::connect ( agxPowerLine::Connector * connector )

virtual

Connect the unit to a connector.

Parameters

connector - a connector

Returns: true and connects if there are physical dimensions that match

◆ connect() [2/4]

virtual bool agxPowerLine::Unit::connect	(	agxPowerLine::Side	mySide,
		agxPowerLine::Side	connectorSide,
		agxPowerLine::Connector *	connector
	)

virtual

Connect the unit to a connector, specifying the side of each.

Parameters

mySide	- The side on this unit to connect.
connectorSide	- The side on the connector to connect.
connector	- The connector to connect.

Returns: True if the connection was made, false otherwise.

◆ connect() [3/4]

virtual bool agxPowerLine::Unit::connect	(	agxPowerLine::Side	mySide,
		agxPowerLine::Side	otherSide,
		agxPowerLine::Unit *	other
	)

virtual

◆ connect() [4/4]

virtual bool agxPowerLine::Unit::connect ( agxPowerLine::Unit * otherUnit )

virtual

Connect the unit to another unit.

Parameters

otherUnit - another unit.

◆ disconnect()

virtual bool agxPowerLine::Unit::disconnect ( agxPowerLine::Unit * unit )

virtual

◆ disconnectAll()

void agxPowerLine::Unit::disconnectAll ( )

◆ getActiveDimension() [1/2]

agxPowerLine::PhysicalDimension * agxPowerLine::Unit::getActiveDimension ( size_t index )

Returns: The index:th non-null PhysicalDimension in this Unit, not including internal Units, or nullptr.

◆ getActiveDimension() [2/2]

const agxPowerLine::PhysicalDimension * agxPowerLine::Unit::getActiveDimension ( size_t index ) const

◆ getConnectableDimension()

virtual agxPowerLine::DimensionAndSide agxPowerLine::Unit::getConnectableDimension	(	agxPowerLine::PhysicalDimension::Type	type,
		agxPowerLine::Side	side
	)

virtual

Returns: The dimension of the given types that accepts connections on the given side. Can be a PhysicalDimension owned by an internal Unit.

Reimplemented in agxDriveTrain::deprecated::DriveTrainComponent, agxHydraulics::Accumulator, agxHydraulics::deprecated::MotorUnit, agxHydraulics::deprecated::PumpUnit, agxHydraulics::PistonActuator, agxPowerLine::Actuator, agxPowerLine::Actuator1DOF, and agxPowerLine::TranslationalActuator.

◆ getConnectableDimensionTypes()

virtual void agxPowerLine::Unit::getConnectableDimensionTypes	(	agxPowerLine::PhysicalDimension::TypeVector &	types,
		agxPowerLine::Side	side
	)		const

virtual

Reimplemented in agxDriveTrain::deprecated::DriveTrainComponent, agxHydraulics::deprecated::MotorUnit, agxHydraulics::deprecated::PumpUnit, agxHydraulics::PistonActuator, agxPowerLine::RotationalActuator, and agxPowerLine::TranslationalActuator.

◆ getConnectableInputDimension()

agxPowerLine::PhysicalDimension * agxPowerLine::Unit::getConnectableInputDimension ( agxPowerLine::PhysicalDimension::Type type )

Returns: The dimension of the given types that accepts connections. Can be a PhysicalDimension owned by an internal Unit.

◆ getConnectableOutputDimension()

agxPowerLine::PhysicalDimension * agxPowerLine::Unit::getConnectableOutputDimension ( agxPowerLine::PhysicalDimension::Type type )

◆ getConnectedUnits()

void agxPowerLine::Unit::getConnectedUnits	(	UnitPtrSetVector &	result,
		agxPowerLine::Side	side
	)

◆ getConnectors() [1/2]

size_t agxPowerLine::Unit::getConnectors ( agxPowerLine::ConnectorPtrVector & result ) const

◆ getConnectors() [2/2]

size_t agxPowerLine::Unit::getConnectors	(	const agxPowerLine::Unit *	unit,
		agxPowerLine::ConnectorPtrVector &	result
	)

Append all connectors connecting this Unit to the given Unit to the 'result' Vector.

Returns the index of the first Connector added. Will be one-past-end (result.size()) if no connectors are added.

Returns: The index of the first appended Connector.

◆ getDimension() [1/2]

agxPowerLine::PhysicalDimension * agxPowerLine::Unit::getDimension ( agxPowerLine::PhysicalDimension::Type type )

Returns: The PhysicalDimension with the given type, or nullptr. Does not search internal Units.

◆ getDimension() [2/2]

const agxPowerLine::PhysicalDimension * agxPowerLine::Unit::getDimension ( agxPowerLine::PhysicalDimension::Type type ) const

◆ getDimensions() [1/2]

agxPowerLine::PhysicalDimensionRefVector & agxPowerLine::Unit::getDimensions ( )

◆ getDimensions() [2/2]

const agxPowerLine::PhysicalDimensionRefVector & agxPowerLine::Unit::getDimensions ( ) const

Returns: A vector containing the PhysicalDimensions in this Unit, not including internal Units.

◆ getFirstInputConnector()

Connector * agxPowerLine::Unit::getFirstInputConnector ( const agxPowerLine::Unit * unit ) const

◆ getFirstOutputConnector()

Connector * agxPowerLine::Unit::getFirstOutputConnector ( const agxPowerLine::Unit * unit ) const

◆ getIgnoreForStoreRestoreStream()

bool agxPowerLine::Unit::getIgnoreForStoreRestoreStream ( ) const

◆ getInputConnectors() [1/2]

size_t agxPowerLine::Unit::getInputConnectors ( agxPowerLine::ConnectorPtrVector & result ) const

◆ getInputConnectors() [2/2]

size_t agxPowerLine::Unit::getInputConnectors	(	const agxPowerLine::Unit *	unit,
		agxPowerLine::ConnectorPtrVector &	result
	)

◆ getNumActiveDimensions()

size_t agxPowerLine::Unit::getNumActiveDimensions ( ) const

The number of non-null PhysicalDimension in this Unit, not including internal Units.

◆ getNumConnectableDimensions()

virtual size_t agxPowerLine::Unit::getNumConnectableDimensions ( Side side ) const

virtual

Returns: The number of connectable PhysicalDimensions in this Unit, including internal.

◆ getNumConnections()

size_t agxPowerLine::Unit::getNumConnections ( ) const

◆ getOutputConnectors() [1/2]

size_t agxPowerLine::Unit::getOutputConnectors ( agxPowerLine::ConnectorPtrVector & result ) const

◆ getOutputConnectors() [2/2]

size_t agxPowerLine::Unit::getOutputConnectors	(	const agxPowerLine::Unit *	unit,
		agxPowerLine::ConnectorPtrVector &	result
	)

◆ getOwnConnectedUnits() [1/2]

void agxPowerLine::Unit::getOwnConnectedUnits	(	UnitPtrSetVector &	unitSet,
		agxPowerLine::Side	side,
		bool	startFromCleanUnitSet = `true`
	)		const

◆ getOwnConnectedUnits() [2/2]

void agxPowerLine::Unit::getOwnConnectedUnits	(	UnitPtrSetVector &	unitSet,
		bool	startFromCleanUnitSet = `true`
	)		const

Constructs the set of Units connected to this Unit's own dimensions.

Does not consider internal units.

◆ getPowerLine()

agxPowerLine::PowerLine * agxPowerLine::Unit::getPowerLine ( ) const

◆ getRoot()

agxPowerLine::Unit * agxPowerLine::Unit::getRoot ( ) const

◆ getSide()

agxPowerLine::Side agxPowerLine::Unit::getSide ( const Connector * connector ) const

◆ hasConnector()

bool agxPowerLine::Unit::hasConnector ( const Connector * connector ) const

◆ hasValidInputConnection()

virtual bool agxPowerLine::Unit::hasValidInputConnection ( ) const

protectedvirtual

returns if it is possible to connect to this unit

◆ isConnected()

virtual bool agxPowerLine::Unit::isConnected ( agxPowerLine::Unit * otherUnit ) const

virtual

Returns: true if this is connected the other through a connector

◆ isValid()

virtual bool agxPowerLine::Unit::isValid ( ) const

virtual

Returns: True if the unit and its connections and constraints are valid.

◆ postRestore()

virtual bool agxPowerLine::Unit::postRestore ( agxStream::StorageStream & str )

virtual

Reimplemented in agxDriveTrain::ElectricMotor.

◆ postStore()

virtual bool agxPowerLine::Unit::postStore ( agxStream::StorageStream & str ) const

virtual

Reimplemented in agxDriveTrain::ElectricMotor.

◆ removeNotification()

void agxPowerLine::Unit::removeNotification ( agxPowerLine::PowerLine * powerLine )

◆ restore() [1/2]

virtual void agxPowerLine::Unit::restore ( agxStream::InputArchive & in )

overridevirtual

Reimplemented from agxPowerLine::SubGraph.

Reimplemented in agxDriveTrain::deprecated::DriveTrainComponent, agxPowerLine::Actuator, and agxPowerLine::Actuator1DOF.

◆ restore() [2/2]

virtual bool agxPowerLine::Unit::restore ( agxStream::StorageStream & str )

overridevirtual

Restores internal data from stream.

Reimplemented from agxPowerLine::SubGraph.

Reimplemented in agxPowerLine::RotationalActuator, agxDriveTrain::deprecated::DriveTrainComponent, agxDriveTrain::deprecated::TorqueConverterTable, agxDriveTrain::deprecated::FixedGear, agxDriveTrain::deprecated::GearBox, agxDriveTrain::deprecated::Clutch, agxDriveTrain::deprecated::HighLevelTorqueConverter, agxDriveTrain::deprecated::HighLevelGearBox, agxDriveTrain::ElectricMotor, agxDriveTrain::Engine, agxDriveTrain::PidControlledEngine, agxDriveTrain::Shaft, agxHydraulics::HydraulicMotorActuator, agxHydraulics::HydraulicPumpActuator, agxHydraulics::PistonActuator, agxPowerLine::Actuator, agxPowerLine::Actuator1DOF, agxPowerLine::TranslationalActuator, agxPowerLine::ActuatorBodyUnit, agxPowerLine::RotationalUnit, agxPowerLine::TranslationalUnit, and agxPowerLine::WireWinchActuator.

◆ restorePre46()

void agxPowerLine::Unit::restorePre46 ( agxStream::InputArchive & in )

protected

◆ setPowerLine()

void agxPowerLine::Unit::setPowerLine ( PowerLine * powerLine )

protected

Point to the power line the unit is a part of.

◆ setRoot()

void agxPowerLine::Unit::setRoot ( agxPowerLine::Unit * root )

◆ spreadRootToGraph()

void agxPowerLine::Unit::spreadRootToGraph ( )

◆ store() [1/2]

virtual void agxPowerLine::Unit::store ( agxStream::OutputArchive & out ) const

overridevirtual

Reimplemented from agxPowerLine::SubGraph.

Reimplemented in agxDriveTrain::deprecated::DriveTrainComponent, agxPowerLine::Actuator, and agxPowerLine::Actuator1DOF.

◆ store() [2/2]

virtual bool agxPowerLine::Unit::store ( agxStream::StorageStream & str ) const

overridevirtual

Stores internal data into stream.

Reimplemented from agxPowerLine::SubGraph.

Reimplemented in agxPowerLine::RotationalActuator, agxDriveTrain::deprecated::DriveTrainComponent, agxDriveTrain::deprecated::TorqueConverterTable, agxDriveTrain::deprecated::FixedGear, agxDriveTrain::deprecated::GearBox, agxDriveTrain::deprecated::Clutch, agxDriveTrain::deprecated::HighLevelTorqueConverter, agxDriveTrain::deprecated::HighLevelGearBox, agxDriveTrain::ElectricMotor, agxDriveTrain::Engine, agxDriveTrain::PidControlledEngine, agxDriveTrain::Shaft, agxHydraulics::HydraulicMotorActuator, agxHydraulics::HydraulicPumpActuator, agxHydraulics::PistonActuator, agxPowerLine::Actuator, agxPowerLine::Actuator1DOF, agxPowerLine::TranslationalActuator, agxPowerLine::ActuatorBodyUnit, agxPowerLine::RotationalUnit, agxPowerLine::TranslationalUnit, and agxPowerLine::WireWinchActuator.

◆ vetoConnect()

virtual bool agxPowerLine::Unit::vetoConnect ( agxPowerLine::Connector * connector ) const

virtual

Member Data Documentation

◆ m_attachBody

agx::observer_ptr<agx::RigidBody> agxPowerLine::Unit::m_attachBody

protected

Definition at line 325 of file Unit.h.

◆ m_dimensions

PhysicalDimensionRefVector agxPowerLine::Unit::m_dimensions

protected

Definition at line 323 of file Unit.h.

◆ m_ignoreMeForStoreRestoreStream

bool agxPowerLine::Unit::m_ignoreMeForStoreRestoreStream

protected

Definition at line 327 of file Unit.h.

◆ m_rootUnit

agxPowerLine::Unit* agxPowerLine::Unit::m_rootUnit

protected

Definition at line 329 of file Unit.h.

The documentation for this class was generated from the following file:

Unit.h

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Unit()

◆ ~Unit()

Member Function Documentation

◆ activateDimension()

◆ addNotification()

◆ AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE()

◆ attach()

◆ buildDimensionsName()

◆ connect() [1/4]

◆ connect() [2/4]

◆ connect() [3/4]

◆ connect() [4/4]

◆ disconnect()

◆ disconnectAll()

◆ getActiveDimension() [1/2]

◆ getActiveDimension() [2/2]

◆ getConnectableDimension()

◆ getConnectableDimensionTypes()

◆ getConnectableInputDimension()

◆ getConnectableOutputDimension()

◆ getConnectedUnits()

◆ getConnectors() [1/2]

◆ getConnectors() [2/2]

◆ getDimension() [1/2]

◆ getDimension() [2/2]

◆ getDimensions() [1/2]

◆ getDimensions() [2/2]

◆ getFirstInputConnector()

◆ getFirstOutputConnector()

◆ getIgnoreForStoreRestoreStream()

◆ getInputConnectors() [1/2]

◆ getInputConnectors() [2/2]

◆ getNumActiveDimensions()

◆ getNumConnectableDimensions()

◆ getNumConnections()

◆ getOutputConnectors() [1/2]

◆ getOutputConnectors() [2/2]

◆ getOwnConnectedUnits() [1/2]

◆ getOwnConnectedUnits() [2/2]

◆ getPowerLine()

◆ getRoot()

◆ getSide()

◆ hasConnector()

◆ hasValidInputConnection()

◆ isConnected()

◆ isValid()

◆ postRestore()

◆ postStore()

◆ removeNotification()

◆ restore() [1/2]

◆ restore() [2/2]

◆ restorePre46()

◆ setPowerLine()

◆ setRoot()

◆ spreadRootToGraph()

◆ store() [1/2]

◆ store() [2/2]

◆ vetoConnect()

Member Data Documentation

◆ m_attachBody

◆ m_dimensions

◆ m_ignoreMeForStoreRestoreStream

◆ m_rootUnit
