Abstract base class which encapsulated information for rendering a specific shape. More...

#include <RenderProxy.h>

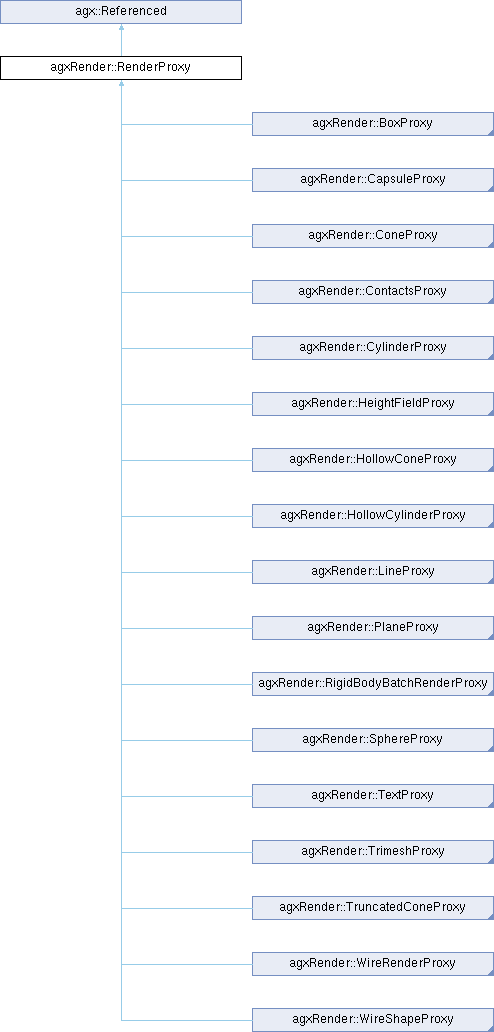

Inheritance diagram for agxRender::RenderProxy:

Public Types
enum	EventType { ENABLE , TRANSFORM , ALPHA , COLOR , SHAPE , REMOVE , RENDERMODE }
	Enum for specifying a type of event which might change a RenderProxy. More...

enum	RenderMode { NOT_SET = 0x0 , SOLID = 0x1 , WIREFRAME = 0x2 }

Public Member Functions
	RenderProxy (agxCollide::Shape *shape=nullptr)
	Constructor.

void	callOnChange (EventType type)
	Explicitly fires event of `type`.

bool	compare () const
	Compare the modified count with its associated shape.

virtual float	getAlpha () const

virtual agx::Vec3	getColor () const

bool	getEnable () const

const agxCollide::Geometry *	getGeometry () const

agx::UInt32	getModifiedCount () const
	This value tells us that if the proxy is synchronized with the associated shape.

RenderMode	getRenderMode () const

const agxCollide::Shape *	getShape () const

const agx::AffineMatrix4x4 &	getTransform () const

bool	isEnabled () const

virtual void	reset ()
	Will reset color, alpha and enabled state back to default state (as when initially created).

virtual void	setAlpha (float alpha)
	Set the alpha value of this proxy.

virtual void	setColor (const agx::Vec3 &color)
	Set the color of this proxy.

void	setEnable (bool flag)
	Toggle this proxy for rendering on/off.

void	setRenderMode (RenderMode mode)
	Set the render mode for this Proxy.

void	setShape (agxCollide::Shape shape, const agxCollide::Geometry geometry)
	Set the shape for this proxy.

virtual void	setTransform (const agx::AffineMatrix4x4 &transform)
	Set the transform of this RenderProxy, if overridden, set the m_transform and call onUpdate(TRANSFORM)

virtual bool	updateShape ()
	Called when a Shape has been changed (for example radius on a sphere is changed).

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Static Public Member Functions
static agx::Bool	shouldRender (const agx::RigidBody *rb)

Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Protected Member Functions
virtual	~RenderProxy ()
	Destructor.

virtual void	onChange (EventType)
	Pure virtual method that should response on the different events.

void	setBeginToEndTransform (const agx::Vec3 &begin, const agx::Vec3 &end, float &retHeight, bool signalShapeChanged, bool offsetHalfHeight=true)
	Calculates and sets the transform given begin and end points.

void	setModifiedCount (agx::UInt32 c)

virtual void	synchronizeParameters ()
	This method should be implemented so that it extracts size parameters from an associated shape and store it in the Proxy parameters (radius/length etc).

Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Protected Attributes
agx::observer_ptr< agxCollide::Shape >	m_shape

agx::AffineMatrix4x4	m_transform

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Additional Inherited Members
Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Detailed Description

Abstract base class which encapsulated information for rendering a specific shape.

Definition at line 52 of file agxRender/RenderProxy.h.

Member Enumeration Documentation

◆ EventType

enum agxRender::RenderProxy::EventType

Enum for specifying a type of event which might change a RenderProxy.

Enumerator
ENABLE	A RenderProxy is enabled/disabled.
TRANSFORM	The transformation for a proxy is updated.
ALPHA	The alpha value for a proxy is updated.
COLOR	The color value for a proxy is updated.
SHAPE	The Shape has been modified a rebuild is needed.
REMOVE	The Shape has been removed from space, need to be removed from rendering.
RENDERMODE	The RenderMode has been changed.

Definition at line 57 of file agxRender/RenderProxy.h.

◆ RenderMode

enum agxRender::RenderProxy::RenderMode

Enumerator
NOT_SET
SOLID
WIREFRAME

Definition at line 67 of file agxRender/RenderProxy.h.

Constructor & Destructor Documentation

◆ RenderProxy()

agxRender::RenderProxy::RenderProxy ( agxCollide::Shape * shape = nullptr )

Constructor.

◆ ~RenderProxy()

virtual agxRender::RenderProxy::~RenderProxy ( )

protectedvirtual

Destructor.

Member Function Documentation

◆ callOnChange()

void agxRender::RenderProxy::callOnChange ( EventType type )

Explicitly fires event of type.

Parameters

type	- type of event to fire to this render proxy

Referenced by setAlpha(), setColor(), setEnable(), setRenderMode(), and setTransform().

◆ compare()

bool agxRender::RenderProxy::compare ( ) const

Compare the modified count with its associated shape.

◆ getAlpha()

float agxRender::RenderProxy::getAlpha ( ) const

inlinevirtual

Returns: the current alpha value for this proxy

Definition at line 862 of file agxRender/RenderProxy.h.

◆ getColor()

agx::Vec3 agxRender::RenderProxy::getColor ( ) const

inlinevirtual

Returns: the current color

Definition at line 848 of file agxRender/RenderProxy.h.

◆ getEnable()

bool agxRender::RenderProxy::getEnable ( ) const

inline

Returns: true if this proxy is enabled

Definition at line 903 of file agxRender/RenderProxy.h.

◆ getGeometry()

const agxCollide::Geometry * agxRender::RenderProxy::getGeometry ( ) const

inline

Definition at line 889 of file agxRender/RenderProxy.h.

◆ getModifiedCount()

agx::UInt32 agxRender::RenderProxy::getModifiedCount ( ) const

inline

This value tells us that if the proxy is synchronized with the associated shape.

When a shape change any of its attributes, it will increment its own number. If it does not match this, it will trigger onChange(SHAPE).

Returns: the current modified count for this Proxy.

Definition at line 872 of file agxRender/RenderProxy.h.

◆ getRenderMode()

RenderProxy::RenderMode agxRender::RenderProxy::getRenderMode ( ) const

inline

Returns: the current render mode for this Proxy

Definition at line 916 of file agxRender/RenderProxy.h.

◆ getShape()

const agxCollide::Shape * agxRender::RenderProxy::getShape ( ) const

inline

Definition at line 884 of file agxRender/RenderProxy.h.

References m_shape.

◆ getTransform()

const agx::AffineMatrix4x4 & agxRender::RenderProxy::getTransform ( ) const

inline

Returns: the current transform for this proxy

Definition at line 835 of file agxRender/RenderProxy.h.

References m_transform.

◆ isEnabled()

bool agxRender::RenderProxy::isEnabled ( ) const

inline

Returns: true if this proxy is enabled

Definition at line 137 of file agxRender/RenderProxy.h.

◆ onChange()

virtual void agxRender::RenderProxy::onChange ( EventType )

inlineprotectedvirtual

Pure virtual method that should response on the different events.

This method is (indirectly via callOnChange) called from most set* methods. Should really never be called direct from anywhere else but from callOnChange.

Definition at line 170 of file agxRender/RenderProxy.h.

◆ reset()

virtual void agxRender::RenderProxy::reset ( )

virtual

Will reset color, alpha and enabled state back to default state (as when initially created).

Reimplemented in agxOSG::RigidBodyBatchRenderProxy< ContainerType, TransformType >, agxOSG::ContactProxy, and agxOSG::WireRenderProxy.

◆ setAlpha()

void agxRender::RenderProxy::setAlpha ( float alpha )

inlinevirtual

Set the alpha value of this proxy.

If overridden, store color in m_alpha and call onUpdate(ALPHA)

Definition at line 853 of file agxRender/RenderProxy.h.

References ALPHA, callOnChange(), and agx::equivalent().

◆ setBeginToEndTransform()

void agxRender::RenderProxy::setBeginToEndTransform	(	const agx::Vec3 &	begin,
		const agx::Vec3 &	end,
		float &	retHeight,
		bool	signalShapeChanged,
		bool	offsetHalfHeight = `true`
	)

protected

Calculates and sets the transform given begin and end points.

The transform is oriented along the direction towards end and is located at the midpoint between begin and end.

Parameters

	begin	- begin position
	end	- end position
[out]	retHeight	- distance between begin and end
	signalShapeChanged	- true to trigger callOnChange(EventType::SHAPE)
	offsetHalfHeight	- true to center transform between begin and end, otherwise at begin

◆ setColor()

void agxRender::RenderProxy::setColor ( const agx::Vec3 & color )

inlinevirtual

Set the color of this proxy.

If overridden, store color in m_color and call onUpdate(COLOR)

Definition at line 840 of file agxRender/RenderProxy.h.

References callOnChange(), COLOR, and agx::equivalent().

◆ setEnable()

void agxRender::RenderProxy::setEnable ( bool flag )

inline

Toggle this proxy for rendering on/off.

Will trigger onUpdate(ENABLE)

Definition at line 894 of file agxRender/RenderProxy.h.

References callOnChange(), and ENABLE.

◆ setModifiedCount()

void agxRender::RenderProxy::setModifiedCount ( agx::UInt32 c )

inlineprotected

Definition at line 867 of file agxRender/RenderProxy.h.

Referenced by setShape().

◆ setRenderMode()

void agxRender::RenderProxy::setRenderMode ( RenderProxy::RenderMode mode )

inline

Set the render mode for this Proxy.

Will trigger onUpdate(RENDERMODE)

Definition at line 908 of file agxRender/RenderProxy.h.

References callOnChange(), and RENDERMODE.

◆ setShape()

void agxRender::RenderProxy::setShape	(	agxCollide::Shape *	shape,
		const agxCollide::Geometry *	geometry
	)

inline

Set the shape for this proxy.

Definition at line 877 of file agxRender/RenderProxy.h.

References m_shape, and setModifiedCount().

◆ setTransform()

void agxRender::RenderProxy::setTransform ( const agx::AffineMatrix4x4 & transform )

inlinevirtual

Set the transform of this RenderProxy, if overridden, set the m_transform and call onUpdate(TRANSFORM)

Definition at line 829 of file agxRender/RenderProxy.h.

References callOnChange(), m_transform, and TRANSFORM.

Referenced by agxOSG::RigidBodyBatchRenderProxy< ContainerType, TransformType >::ADD_COMMON_PROXY_METHODS().

◆ shouldRender()

static agx::Bool agxRender::RenderProxy::shouldRender ( const agx::RigidBody * rb )

static

Returns: true if the rigid body should be rendered - otherwise false

◆ synchronizeParameters()

virtual void agxRender::RenderProxy::synchronizeParameters ( )

inlineprotectedvirtual

This method should be implemented so that it extracts size parameters from an associated shape and store it in the Proxy parameters (radius/length etc).

Reimplemented in agxRender::SphereProxy, agxRender::PlaneProxy, agxRender::LineProxy, agxRender::CylinderProxy, agxRender::HollowCylinderProxy, agxRender::ConeProxy, agxRender::TruncatedConeProxy, agxRender::HollowConeProxy, agxRender::CapsuleProxy, agxRender::WireShapeProxy, and agxRender::BoxProxy.

Definition at line 163 of file agxRender/RenderProxy.h.

◆ updateShape()

virtual bool agxRender::RenderProxy::updateShape ( )

inlinevirtual

Called when a Shape has been changed (for example radius on a sphere is changed).

Returns: true if shape has changed or false if the change did not result in any changes.

Definition at line 101 of file agxRender/RenderProxy.h.

Member Data Documentation

◆ m_shape

agx::observer_ptr<agxCollide::Shape> agxRender::RenderProxy::m_shape

protected

Definition at line 194 of file agxRender/RenderProxy.h.

Referenced by getShape(), and setShape().

◆ m_transform

agx::AffineMatrix4x4 agxRender::RenderProxy::m_transform

protected

Definition at line 195 of file agxRender/RenderProxy.h.

Referenced by getTransform(), and setTransform().

The documentation for this class was generated from the following file:

agxRender/RenderProxy.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ EventType

◆ RenderMode

Constructor & Destructor Documentation

◆ RenderProxy()

◆ ~RenderProxy()

Member Function Documentation

◆ callOnChange()

◆ compare()

◆ getAlpha()

◆ getColor()

◆ getEnable()

◆ getGeometry()

◆ getModifiedCount()

◆ getRenderMode()

◆ getShape()

◆ getTransform()

◆ isEnabled()

◆ onChange()

◆ reset()

◆ setAlpha()

◆ setBeginToEndTransform()

◆ setColor()

◆ setEnable()

◆ setModifiedCount()

◆ setRenderMode()

◆ setShape()

◆ setTransform()

◆ shouldRender()

◆ synchronizeParameters()

◆ updateShape()

Member Data Documentation

◆ m_shape

◆ m_transform
