Class holding rigid bodies that makes it possible to batch render these objects. More...

#include <RenderProxy.h>

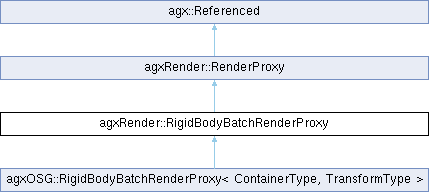

Inheritance diagram for agxRender::RigidBodyBatchRenderProxy:

Public Types
typedef agx::Vector< const agx::RigidBody * >	Container

Public Types inherited from agxRender::RenderProxy
enum	EventType { ENABLE , TRANSFORM , ALPHA , COLOR , SHAPE , REMOVE , RENDERMODE }
	Enum for specifying a type of event which might change a RenderProxy. More...

enum	RenderMode { NOT_SET = 0x0 , SOLID = 0x1 , WIREFRAME = 0x2 }

Public Member Functions
	RigidBodyBatchRenderProxy ()

void	set (const agx::RigidBodyPtrSetVector *enabledBodies, float scale)

Public Member Functions inherited from agxRender::RenderProxy
	RenderProxy (agxCollide::Shape *shape=nullptr)
	Constructor.

void	callOnChange (EventType type)
	Explicitly fires event of `type`.

bool	compare () const
	Compare the modified count with its associated shape.

virtual float	getAlpha () const

virtual agx::Vec3	getColor () const

bool	getEnable () const

const agxCollide::Geometry *	getGeometry () const

agx::UInt32	getModifiedCount () const
	This value tells us that if the proxy is synchronized with the associated shape.

RenderMode	getRenderMode () const

const agxCollide::Shape *	getShape () const

const agx::AffineMatrix4x4 &	getTransform () const

bool	isEnabled () const

virtual void	reset ()
	Will reset color, alpha and enabled state back to default state (as when initially created).

virtual void	setAlpha (float alpha)
	Set the alpha value of this proxy.

virtual void	setColor (const agx::Vec3 &color)
	Set the color of this proxy.

void	setEnable (bool flag)
	Toggle this proxy for rendering on/off.

void	setRenderMode (RenderMode mode)
	Set the render mode for this Proxy.

void	setShape (agxCollide::Shape shape, const agxCollide::Geometry geometry)
	Set the shape for this proxy.

virtual void	setTransform (const agx::AffineMatrix4x4 &transform)
	Set the transform of this RenderProxy, if overridden, set the m_transform and call onUpdate(TRANSFORM)

virtual bool	updateShape ()
	Called when a Shape has been changed (for example radius on a sphere is changed).

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Protected Member Functions
virtual	~RigidBodyBatchRenderProxy ()=default

Protected Member Functions inherited from agxRender::RenderProxy
virtual	~RenderProxy ()
	Destructor.

virtual void	onChange (EventType)
	Pure virtual method that should response on the different events.

void	setBeginToEndTransform (const agx::Vec3 &begin, const agx::Vec3 &end, float &retHeight, bool signalShapeChanged, bool offsetHalfHeight=true)
	Calculates and sets the transform given begin and end points.

void	setModifiedCount (agx::UInt32 c)

virtual void	synchronizeParameters ()
	This method should be implemented so that it extracts size parameters from an associated shape and store it in the Proxy parameters (radius/length etc).

Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Protected Attributes
agxRender::RigidBodyBatchRenderProxy::Container	m_bodies

float	m_scale

Protected Attributes inherited from agxRender::RenderProxy
agx::observer_ptr< agxCollide::Shape >	m_shape

agx::AffineMatrix4x4	m_transform

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Additional Inherited Members
Static Public Member Functions inherited from agxRender::RenderProxy
static agx::Bool	shouldRender (const agx::RigidBody *rb)

Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Detailed Description

Class holding rigid bodies that makes it possible to batch render these objects.

Definition at line 703 of file agxRender/RenderProxy.h.

Member Typedef Documentation

◆ Container

typedef agx::Vector<const agx::RigidBody*> agxRender::RigidBodyBatchRenderProxy::Container

Definition at line 706 of file agxRender/RenderProxy.h.

Constructor & Destructor Documentation

◆ RigidBodyBatchRenderProxy()

agxRender::RigidBodyBatchRenderProxy::RigidBodyBatchRenderProxy ( )

◆ ~RigidBodyBatchRenderProxy()

virtual agxRender::RigidBodyBatchRenderProxy::~RigidBodyBatchRenderProxy ( )

protectedvirtualdefault

Reimplemented in agxOSG::RigidBodyBatchRenderProxy< ContainerType, TransformType >.

Member Function Documentation

◆ set()

void agxRender::RigidBodyBatchRenderProxy::set	(	const agx::RigidBodyPtrSetVector *	enabledBodies,
		float	scale
	)

Member Data Documentation

◆ m_bodies

agxRender::RigidBodyBatchRenderProxy::Container agxRender::RigidBodyBatchRenderProxy::m_bodies

protected

Definition at line 717 of file agxRender/RenderProxy.h.

Referenced by agxOSG::RigidBodyBatchRenderProxy< ContainerType, TransformType >::ADD_COMMON_PROXY_METHODS().

◆ m_scale

float agxRender::RigidBodyBatchRenderProxy::m_scale

protected

Definition at line 718 of file agxRender/RenderProxy.h.

Referenced by agxOSG::RigidBodyBatchRenderProxy< ContainerType, TransformType >::ADD_COMMON_PROXY_METHODS().

The documentation for this class was generated from the following file:

agxRender/RenderProxy.h
