Stateless base class for merge and split of interactions. More...

#include <MergeSplitAlgorithm.h>

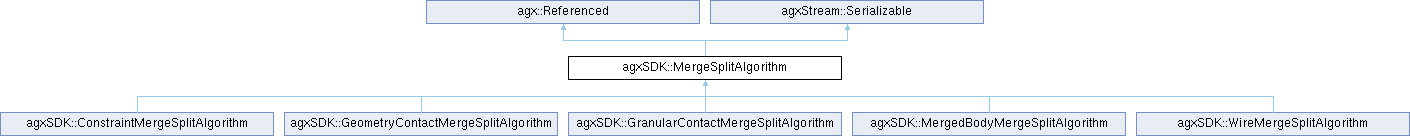

Inheritance diagram for agxSDK::MergeSplitAlgorithm:

Public Types
enum	Callback { NONE = 0 , CONTACTS = 1 << 0 , CONSTRAINTS = 1 << 1 , WIRES = 1 << 2 , POST_SOLVE = 1 << 3 , GRANULARS = 1 << 4 , END_OF_CALLBACKS = 1 << 5 }

Public Member Functions
	AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE (agxSDK::MergeSplitAlgorithm)

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Public Member Functions inherited from agxStream::Serializable
virtual	~Serializable ()
	Destructor for normal C++ use but hidden from SWIG bindings.

virtual const char *	getClassName () const

bool	getEnableSerialization () const

bool	getEnableUuidGeneration ()

agx::UInt32	getIndex () const
	This index is given at creation of this object.

virtual StorageAgent *	getStorageAgent () const =0

agx::Uuid	getUuid () const

bool	isFinished () const

void	setEnableSerialization (bool flag)
	Set to false to disable serialization of this object.

void	setFinished ()
	Tells this class that it is restored correctly and should not be deleted during destruction of an Archive.

void	setUuid (const agx::Uuid &uuid)
	Explicitly set a Uuid on a serializable object.

Protected Member Functions
	MergeSplitAlgorithm ()
	Default constructor.

virtual	~MergeSplitAlgorithm ()
	Reference counted object, protected destructor.

agxSDK::MergeSplitHandler *	getMergeSplitHandler () const

virtual void	onPostSolveActions (const agxSDK::MergeSplitPostSolveData &postSolveData, agxSDK::MergeSplitActionContainer &actions)
	Push merge and/or split actions in simulation postSolve.

virtual void	onPostSolveCompute (const agxSDK::MergeSplitPostSolveData &postSolveData)
	Compute callback in postSolve.

virtual void	onPostSolveComputeEx (const agxSDK::MergeSplitPostSolveData &postSolveData, const agxSDK::MergedBodyMergeSplitAlgorithm &mergedBodyAlgorithm)
	Extended compute callback in postSolve.

virtual void	onPreStepActions (agxSDK::MergeSplitActionContainer &actions)
	Push merge and/or split actions in simulation preStep.

virtual void	onPreStepCompute ()
	Compute callback in preStep.

virtual void	restore (agxStream::InputArchive &in) override
	Restores internal data.

virtual void	store (agxStream::OutputArchive &out) const override
	Stores internal data.

Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Protected Member Functions inherited from agxStream::Serializable
	Serializable ()
	Default constructor.

	Serializable (const Serializable &other)
	Copy constructor.

void	generateUuid ()

Additional Inherited Members
Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Static Public Member Functions inherited from agxStream::Serializable
static void	setEnableUuidGeneration (bool flag)
	Specify if there should be UUID:s generated for each new Serializable object. By default it is enabled.

Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Detailed Description

Stateless base class for merge and split of interactions.

Stateless in the sense that it's not defined to store any kind of state in an implementation of this interface.

Definition at line 32 of file MergeSplitAlgorithm.h.

Member Enumeration Documentation

◆ Callback

enum agxSDK::MergeSplitAlgorithm::Callback

Enumerator
NONE
CONTACTS
CONSTRAINTS
WIRES
POST_SOLVE
GRANULARS
END_OF_CALLBACKS

Definition at line 35 of file MergeSplitAlgorithm.h.

Constructor & Destructor Documentation

◆ MergeSplitAlgorithm()

agxSDK::MergeSplitAlgorithm::MergeSplitAlgorithm ( )

protected

Default constructor.

◆ ~MergeSplitAlgorithm()

virtual agxSDK::MergeSplitAlgorithm::~MergeSplitAlgorithm ( )

protectedvirtual

Reference counted object, protected destructor.

Member Function Documentation

◆ AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE()

agxSDK::MergeSplitAlgorithm::AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE ( agxSDK::MergeSplitAlgorithm )

◆ getMergeSplitHandler()

agxSDK::MergeSplitHandler * agxSDK::MergeSplitAlgorithm::getMergeSplitHandler ( ) const

protected

Returns: the merge split handler this algorithm belongs to

◆ onPostSolveActions()

virtual void agxSDK::MergeSplitAlgorithm::onPostSolveActions	(	const agxSDK::MergeSplitPostSolveData &	postSolveData,
		agxSDK::MergeSplitActionContainer &	actions
	)

protectedvirtual

Push merge and/or split actions in simulation postSolve.

Parameters

	postSolveData	- the post solve data
[out]	actions	- resulting actions

Reimplemented in agxSDK::ConstraintMergeSplitAlgorithm, agxSDK::GeometryContactMergeSplitAlgorithm, and agxSDK::WireMergeSplitAlgorithm.

◆ onPostSolveCompute()

virtual void agxSDK::MergeSplitAlgorithm::onPostSolveCompute ( const agxSDK::MergeSplitPostSolveData & postSolveData )

protectedvirtual

Compute callback in postSolve.

Compute the data used to decide merge and/or split actions to push in onPostStepActions.

Parameters

postSolveData - the post solve data

Reimplemented in agxSDK::ConstraintMergeSplitAlgorithm, agxSDK::GeometryContactMergeSplitAlgorithm, and agxSDK::MergedBodyMergeSplitAlgorithm.

◆ onPostSolveComputeEx()

virtual void agxSDK::MergeSplitAlgorithm::onPostSolveComputeEx	(	const agxSDK::MergeSplitPostSolveData &	postSolveData,
		const agxSDK::MergedBodyMergeSplitAlgorithm &	mergedBodyAlgorithm
	)

protectedvirtual

Extended compute callback in postSolve.

In this stage it's possible to fetch data from the merged body merge split algorithm containing external interactions with each merged body.

Parameters

postSolveData	- the post solve data
mergedBodyAlgorithm	- the merged body merge split algorithm

Reimplemented in agxSDK::ConstraintMergeSplitAlgorithm, and agxSDK::WireMergeSplitAlgorithm.

◆ onPreStepActions()

virtual void agxSDK::MergeSplitAlgorithm::onPreStepActions ( agxSDK::MergeSplitActionContainer & actions )

protectedvirtual

Push merge and/or split actions in simulation preStep.

Parameters

[out] actions - resulting actions

Reimplemented in agxSDK::ConstraintMergeSplitAlgorithm, agxSDK::GeometryContactMergeSplitAlgorithm, and agxSDK::WireMergeSplitAlgorithm.

◆ onPreStepCompute()

virtual void agxSDK::MergeSplitAlgorithm::onPreStepCompute ( )

protectedvirtual

Compute callback in preStep.

Compute the data used to decide merge and/or split actions to push in onPreStepActions.

Reimplemented in agxSDK::ConstraintMergeSplitAlgorithm, and agxSDK::GeometryContactMergeSplitAlgorithm.

◆ restore()

virtual void agxSDK::MergeSplitAlgorithm::restore ( agxStream::InputArchive & in )

overrideprotectedvirtual

Restores internal data.

This method has to be called explicitly by the derived class.

◆ store()

virtual void agxSDK::MergeSplitAlgorithm::store ( agxStream::OutputArchive & out ) const

overrideprotectedvirtual

Stores internal data.

This method has to be called explicitly by the derived class.

The documentation for this class was generated from the following file:

MergeSplitAlgorithm.h
