Specific thresholds used to split and merge objects given wires. More...

#include <WireMergeSplitThresholds.h>

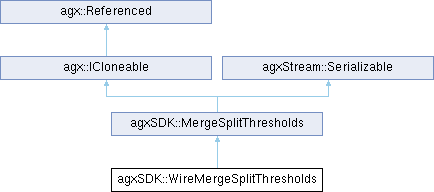

Inheritance diagram for agxSDK::WireMergeSplitThresholds:

Public Types
enum	MergeThresholds : agx::UInt { NUM_MERGE_THRESHOLDS }

enum	SplitThresholds : agx::UInt { MERGE_TENSION_SCALE = NUM_MERGE_THRESHOLDS , FORCE_PROPAGATION_DECAY_SCALE , NUM_THRESHOLDS }

Public Types inherited from agxSDK::MergeSplitThresholds
using	MixFunction = std::function< agx::Real(agx::Real, agx::Real)>
	Mixing two values function signature given two values and the return value is the mix.

Public Member Functions
	WireMergeSplitThresholds ()
	Default constructor, all thresholds will be set to default.

	AGXSTREAM_DECLARE_SERIALIZABLE_BASE (agxSDK::WireMergeSplitThresholds)

virtual agx::ICloneableRef	clone (agx::ICloneable *child=nullptr) override
	Creates and returns a clone of this object.

agx::Real	getForcePropagationDecayScale () const

agx::Real	getMergeTensionScale () const

virtual void	resetToDefault () override
	Resets all values to default.

virtual void	restoreLightData (agxStream::StorageStream &str) override
	Restoring data from stream.

void	setForcePropagationDecayScale (agx::Real forcePropagationDecayScale)
	When external forces are acting on a partially merged wire, the force will propagate and split several nodes at once.

void	setMergeTensionScale (agx::Real mergeTensionScale)
	When a node is merged the tension is stored and monitored to perform split.

virtual void	storeLightData (agxStream::StorageStream &str) const override
	Storing data to stream.

Public Member Functions inherited from agxSDK::MergeSplitThresholds
agx::Real	get (const agx::UInt index) const

agx::Real	get (const agx::UInt index, const MergeSplitThresholds *other, MergeSplitThresholds::MixFunction mixFunc) const
	Find and mix values of two instances.

agx::UInt	getNumValues () const

agx::Bool	isGlobal () const

virtual void	resetToDefault ()=0
	Restore all thresholds to default.

void	set (const agx::UInt index, agx::Real value)
	Assign value given index and value.

virtual agx::ICloneableRef	clone (agx::ICloneable *child=nullptr)=0
	Creates a clone of this object.

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Public Member Functions inherited from agxStream::Serializable
virtual	~Serializable ()
	Destructor for normal C++ use but hidden from SWIG bindings.

virtual const char *	getClassName () const

bool	getEnableSerialization () const

bool	getEnableUuidGeneration ()

agx::UInt32	getIndex () const
	This index is given at creation of this object.

virtual StorageAgent *	getStorageAgent () const =0

agx::Uuid	getUuid () const

bool	isFinished () const

void	setEnableSerialization (bool flag)
	Set to false to disable serialization of this object.

void	setFinished ()
	Tells this class that it is restored correctly and should not be deleted during destruction of an Archive.

void	setUuid (const agx::Uuid &uuid)
	Explicitly set a Uuid on a serializable object.

Static Public Member Functions
static agxStream::Serializable *	create (agxStream::InputArchive &)

Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Static Public Member Functions inherited from agxStream::Serializable
static void	setEnableUuidGeneration (bool flag)
	Specify if there should be UUID:s generated for each new Serializable object. By default it is enabled.

Protected Member Functions
virtual	~WireMergeSplitThresholds ()
	Reference counted object - protected destructor.

Protected Member Functions inherited from agxSDK::MergeSplitThresholds
	MergeSplitThresholds (const agx::UInt numValues)
	Construct given number of thresholds.

virtual	~MergeSplitThresholds ()
	Reference counted object, protected destructor.

void	cloneValuesTo (MergeSplitThresholds &target) const
	Resizes and copies values to `target`.

Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Protected Member Functions inherited from agxStream::Serializable
	Serializable ()
	Default constructor.

	Serializable (const Serializable &other)
	Copy constructor.

void	generateUuid ()

Additional Inherited Members
Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Detailed Description

Specific thresholds used to split and merge objects given wires.

Definition at line 28 of file WireMergeSplitThresholds.h.

Member Enumeration Documentation

◆ MergeThresholds

enum agxSDK::WireMergeSplitThresholds::MergeThresholds : agx::UInt

Enumerator
NUM_MERGE_THRESHOLDS

Definition at line 31 of file WireMergeSplitThresholds.h.

◆ SplitThresholds

enum agxSDK::WireMergeSplitThresholds::SplitThresholds : agx::UInt

Enumerator

MERGE_TENSION_SCALE

When a node is merged the tension is stored and monitored to perform split.

This threshold scales the merge tension making split more likely when < 1 and less likely > 1. When this scale is 0 the only force keeping the node merged is from the contact - which in most cases isn't enough.

FORCE_PROPAGATION_DECAY_SCALE

When external forces are acting on a partially merged wire, the force will propagate and split several nodes at once.

This threshold controls the amout of force (of the total external force) that is used to split each node. If this value is high (> 1), the force will not propagate 'too' long, keeping the wire merged. Default: 1.0

NUM_THRESHOLDS

Definition at line 36 of file WireMergeSplitThresholds.h.

Constructor & Destructor Documentation

◆ WireMergeSplitThresholds()

agxSDK::WireMergeSplitThresholds::WireMergeSplitThresholds ( )

Default constructor, all thresholds will be set to default.

◆ ~WireMergeSplitThresholds()

virtual agxSDK::WireMergeSplitThresholds::~WireMergeSplitThresholds ( )

protectedvirtual

Reference counted object - protected destructor.

Member Function Documentation

◆ AGXSTREAM_DECLARE_SERIALIZABLE_BASE()

agxSDK::WireMergeSplitThresholds::AGXSTREAM_DECLARE_SERIALIZABLE_BASE ( agxSDK::WireMergeSplitThresholds )

◆ clone()

virtual agx::ICloneableRef agxSDK::WireMergeSplitThresholds::clone ( agx::ICloneable * child = nullptr )

overridevirtual

Creates and returns a clone of this object.

Implements agx::ICloneable.

◆ create()

static agxStream::Serializable * agxSDK::WireMergeSplitThresholds::create ( agxStream::InputArchive & )

inlinestatic

Definition at line 91 of file WireMergeSplitThresholds.h.

◆ getForcePropagationDecayScale()

agx::Real agxSDK::WireMergeSplitThresholds::getForcePropagationDecayScale ( ) const

inline

Returns: the current force propagation decay scale

Definition at line 125 of file WireMergeSplitThresholds.h.

References FORCE_PROPAGATION_DECAY_SCALE, and agxSDK::MergeSplitThresholds::get().

◆ getMergeTensionScale()

agx::Real agxSDK::WireMergeSplitThresholds::getMergeTensionScale ( ) const

inline

Returns: the current merge tension scale

Definition at line 120 of file WireMergeSplitThresholds.h.

References agxSDK::MergeSplitThresholds::get(), and MERGE_TENSION_SCALE.

◆ resetToDefault()

virtual void agxSDK::WireMergeSplitThresholds::resetToDefault ( )

overridevirtual

Resets all values to default.

Implements agxSDK::MergeSplitThresholds.

◆ restoreLightData()

virtual void agxSDK::WireMergeSplitThresholds::restoreLightData ( agxStream::StorageStream & str )

overridevirtual

Restoring data from stream.

◆ setForcePropagationDecayScale()

void agxSDK::WireMergeSplitThresholds::setForcePropagationDecayScale ( agx::Real forcePropagationDecayScale )

When external forces are acting on a partially merged wire, the force will propagate and split several nodes at once.

This threshold controls the amout of force (of the total external force) that is used to split each node. If this value is high (> 1), the force will not propagate 'too' long, keeping the wire merged. Default: 1.0.

Parameters

forcePropagationDecayScale - the force propagation decay scale

◆ setMergeTensionScale()

void agxSDK::WireMergeSplitThresholds::setMergeTensionScale ( agx::Real mergeTensionScale )

When a node is merged the tension is stored and monitored to perform split.

This threshold scales the merge tension making split more likely when < 1 and less likely > 1. When this scale is 0 the only force keeping the node merged is from the contact - which in most cases isn't enough. Default: 1.0

Parameters

mergeTensionScale - the merge tension scale

◆ storeLightData()

virtual void agxSDK::WireMergeSplitThresholds::storeLightData ( agxStream::StorageStream & str ) const

overridevirtual

Storing data to stream.

The documentation for this class was generated from the following file:

WireMergeSplitThresholds.h
