Encoder instance class defined by an attachment constraint and a model. More...

#include <Encoder.h>

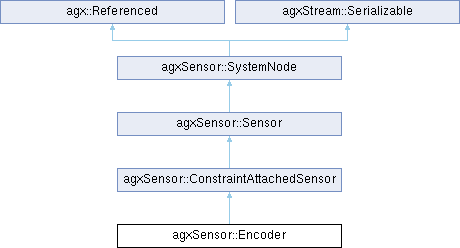

Inheritance diagram for agxSensor::Encoder:

Public Member Functions
	Encoder (agx::Constraint constraint, EncoderModel model, agx::UInt sampleDof)
	Construct this encoder with the given `model` and attached to the given constraint.

	Encoder (agx::CylindricalJoint cylindrical, EncoderModel model, agx::Constraint2DOF::DOF sampleDof=agx::Constraint2DOF::FIRST)
	Construct this encoder with the given `model` and attached to the given cylindrical joint constraint.

	Encoder (agx::Hinge hinge, EncoderModel model)
	Construct this encoder with the given `model` and attached to the given hinge constraint.

	Encoder (agx::Prismatic prismatic, EncoderModel model)
	Construct this encoder with the given `model` and attached to the given prismatic constraint.

	Encoder (agx::SlackCylindricalJoint cylindrical, EncoderModel model, agx::Constraint2DOF::DOF sampleDof=agx::Constraint2DOF::FIRST)
	Construct this encoder with the given `model` and attached to the given slack cylindrical joint constraint.

	Encoder (agx::SlackHingeJoint hinge, EncoderModel model)
	Construct this encoder with the given `model` and attached to the given slack hinge constraint.

	Encoder (agx::SlackPrismatic prismatic, EncoderModel model)
	Construct this encoder with the given `model` and attached to the given slack prismatic constraint.

	Encoder (agx::SplineJoint spline, EncoderModel model, agx::Constraint2DOF::DOF sampleDof=agx::Constraint2DOF::FIRST)
	Construct this encoder with the given `model` and attached to the given spline constraint.

	Encoder (agxVehicle::WheelJoint wheel, EncoderModel model, agxVehicle::WheelJoint::SecondaryConstraint sampleDof=agxVehicle::WheelJoint::WHEEL)
	Construct this encoder with the given `model` and attached to the given wheel joint constraint.

virtual agx::Constraint *	getConstraint () const override

agx::UInt	getConstraintSampleDof () const

EncoderModel *	getModel () const

EncoderOutputHandler *	getOutputHandler () const

virtual ISensorOutputHandler *	getOutputHandlerBase () const override

virtual void	setConstraint (agx::Constraint *constraint) override
	Assign a new parent constraint to attach this encoder to.

void	setConstraintSampleDof (agx::UInt dof)
	Set the DoF in the constraint form which the encoder samples the positional value.

Public Member Functions inherited from agxSensor::ConstraintAttachedSensor
	ConstraintAttachedSensor ()=default
	Default constructor.

virtual agx::Constraint *	getConstraint () const =0

virtual void	setConstraint (agx::Constraint *constraint)=0
	Assign a new parent constraint to attach this sensor to.

Public Member Functions inherited from agxSensor::Sensor
	Sensor ()=default
	Default constructor.

ISensorOutputHandler *	getOutputHandler () const

virtual ISensorOutputHandler *	getOutputHandlerBase () const =0

Public Member Functions inherited from agxSensor::SystemNode
	SystemNode (const SystemNode &)=delete
	Disallow direct copying of nodes.

virtual	~SystemNode ()=default

bool	addChild (SystemNode *child)
	Add unique child to this node.

virtual bool	addNotification ()
	Called when this system node has been added to a sensor environment.

bool	appendChild (SystemNode *child)
	Append child to vector of children, silently.

virtual void	cleanup ()=0
	The sensor environment is being put down, clean everything.

virtual void	complete ()
	Complete the execution of this system, finishing the integration forward in time.

bool	detachChild (SystemNode *child)
	Detach/erase child from vector of children, silently.

virtual bool	eraseAndConnect ()
	Erase this node from the tree and connect its children to the current parent of this node.

virtual void	execute (const CallbackData &data)
	Execute this system, integrating it `data.dt` forward in time.

template<typename T >
T *	findChild (bool recurse=true) const
	Find child of given type.

template<typename PredicateT >
SystemNode *	findChild (PredicateT pred, bool recurse=true) const
	Find child given predicate `pred`.

template<typename T >
T *	findParent () const

template<typename PredicateT >
SystemNode *	findParent (PredicateT pred) const
	Find parent given predicate.

template<typename T >
T *	getChild () const
	Searches children for a node of given type.

SystemNode *	getChild (size_t index) const

bool	getEnable () const

Environment *	getEnvironment () const

const agx::Name &	getName () const

size_t	getNumChildren () const

SystemNode *	getParent () const

SystemNode *	getRoot () const

bool	hasChild (const SystemNode *child, bool recurse=true) const

virtual bool	insertParent (SystemNode &parent)
	Inserts new parent to this node.

virtual bool	onAdd (agx::Referenced &instance)
	Called when an object has been added to the sensor environment.

virtual void	onChildAdded (SystemNode &child)
	Called when `child` has been added to this parent.

virtual void	onChildRemoved (SystemNode &child)
	Called when `child` has been removed from this parent.

virtual bool	onRemove (agx::Referenced &instance)
	Called when an object has been removed from the sensor environment.

bool	removeChild (SystemNode *child)
	Remove child from this node.

virtual void	removeNotification ()
	Called when this system node is being removed from a sensor environment.

virtual void	result (const CallbackData &data)
	If necessary assemble, and fetch results related to this system node after a step by `data.dt` has been completed.

void	setEnable (bool enable)
	Enable/disable this node.

void	setName (const agx::Name &name)
	Assign name to this node.

virtual void	synchronize (const CallbackData &data)
	Synchronization from the main thread.

virtual void	synchronizeGraphics (const agxRender::RenderManager &renderManager)
	At the very end of a step, synchronize any graphics related aspects of the system node.

template<typename VisitorT >
SystemNode *	visitBf (VisitorT visitor) const
	Visit the tree from, including, this node until `callback` returns true - using breadth first traversal.

template<typename VisitorT >
void	visitChildren (VisitorT visitor, bool recurse=true) const
	Visit all children with `func` as void( const SystemNode& child ).

template<typename VisitorT >
SystemNode *	visitChildrenBf (VisitorT visitor) const
	Visit the tree from the children of this node until `callback` returns true - using breadth first traversal.

template<typename VisitorT >
SystemNode *	visitChildrenDf (VisitorT visitor) const
	Visit the tree from the children of this node until `callback` returns true - using depth first traversal.

template<typename T , typename VisitorT >
void	visitChildrenOfType (VisitorT visitor, bool recurse=true) const
	Visit all children with `func` as void( const T& child ).

template<typename VisitorT >
SystemNode *	visitDf (VisitorT visitor) const
	Visit the tree from, including, this node until `callback` returns true - using depth first traversal.

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Public Member Functions inherited from agxStream::Serializable
virtual	~Serializable ()
	Destructor for normal C++ use but hidden from SWIG bindings.

virtual const char *	getClassName () const

bool	getEnableSerialization () const

bool	getEnableUuidGeneration ()

agx::UInt32	getIndex () const
	This index is given at creation of this object.

virtual StorageAgent *	getStorageAgent () const =0

agx::Uuid	getUuid () const

bool	isFinished () const

void	setEnableSerialization (bool flag)
	Set to false to disable serialization of this object.

void	setFinished ()
	Tells this class that it is restored correctly and should not be deleted during destruction of an Archive.

void	setUuid (const agx::Uuid &uuid)
	Explicitly set a Uuid on a serializable object.

Static Public Member Functions
static Encoder *	find (const agxSDK::Simulation *simulation, const agx::Name &name)
	Find encoder given name.

static Encoder *	find (const Environment *environment, const agx::Name &name)
	Find encoder given name.

static EncoderPtrVector	findAll (const agxSDK::Simulation *simulation)
	Find all encoders.

static EncoderPtrVector	findAll (const agxSDK::Simulation *simulation, const agx::Name &name)
	Find all encoders, given name.

static EncoderPtrVector	findAll (const Environment *environment)
	Find all encoders.

static EncoderPtrVector	findAll (const Environment *environment, const agx::Name &name)
	Find all encoders, given name.

Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Static Public Member Functions inherited from agxStream::Serializable
static void	setEnableUuidGeneration (bool flag)
	Specify if there should be UUID:s generated for each new Serializable object. By default it is enabled.

Additional Inherited Members
Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Protected Member Functions inherited from agxStream::Serializable
	Serializable ()
	Default constructor.

	Serializable (const Serializable &other)
	Copy constructor.

void	generateUuid ()

Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Detailed Description

Encoder instance class defined by an attachment constraint and a model.

Any output is accessed through the EncoderOutputHandler.

Definition at line 43 of file Encoder.h.

Constructor & Destructor Documentation

◆ Encoder() [1/9]

agxSensor::Encoder::Encoder	(	agx::CylindricalJoint *	cylindrical,
		EncoderModel *	model,
		agx::Constraint2DOF::DOF	sampleDof = `agx::Constraint2DOF::FIRST`
	)

Construct this encoder with the given model and attached to the given cylindrical joint constraint.

Note: This encoder instance is invalid if the given model is nullptr.

Parameters

cylindrical	- cylindrical constraint to attach to and sample from
model	- model defining the parameters of this encoder instance, invalid if nullptr
sampleDof	- DoF index from which the encoder should sample

◆ Encoder() [2/9]

agxSensor::Encoder::Encoder	(	agx::Hinge *	hinge,
		EncoderModel *	model
	)

Construct this encoder with the given model and attached to the given hinge constraint.

Note: This encoder instance is invalid if the given model is nullptr.

Parameters

hinge	- hinge constraint to attach to and sample from
model	- model defining the parameters of this encoder instance, invalid if nullptr

◆ Encoder() [3/9]

agxSensor::Encoder::Encoder	(	agx::Prismatic *	prismatic,
		EncoderModel *	model
	)

Construct this encoder with the given model and attached to the given prismatic constraint.

Note: This encoder instance is invalid if the given model is nullptr.

Parameters

prismatic	- prismatic constraint to attach to and sample from
model	- model defining the parameters of this encoder instance, invalid if nullptr

◆ Encoder() [4/9]

agxSensor::Encoder::Encoder	(	agx::SplineJoint *	spline,
		EncoderModel *	model,
		agx::Constraint2DOF::DOF	sampleDof = `agx::Constraint2DOF::FIRST`
	)

Construct this encoder with the given model and attached to the given spline constraint.

Note: This encoder instance is invalid if the given model is nullptr.

Parameters

spline	- spline constraint to attach to and sample from
model	- model defining the parameters of this encoder instance, invalid if nullptr
sampleDof	- DoF index from which the encoder should sample

◆ Encoder() [5/9]

agxSensor::Encoder::Encoder	(	agx::SlackCylindricalJoint *	cylindrical,
		EncoderModel *	model,
		agx::Constraint2DOF::DOF	sampleDof = `agx::Constraint2DOF::FIRST`
	)

Construct this encoder with the given model and attached to the given slack cylindrical joint constraint.

Note: This encoder instance is invalid if the given model is nullptr.

Parameters

cylindrical	- slack cylindrical constraint to attach to and sample from
model	- model defining the parameters of this encoder instance, invalid if nullptr
sampleDof	- DoF index from which the encoder should sample

◆ Encoder() [6/9]

agxSensor::Encoder::Encoder	(	agx::SlackHingeJoint *	hinge,
		EncoderModel *	model
	)

Construct this encoder with the given model and attached to the given slack hinge constraint.

Note: This encoder instance is invalid if the given model is nullptr.

Parameters

hinge	- slack hinge constraint to attach to and sample from
model	- model defining the parameters of this encoder instance, invalid if nullptr

◆ Encoder() [7/9]

agxSensor::Encoder::Encoder	(	agx::SlackPrismatic *	prismatic,
		EncoderModel *	model
	)

Construct this encoder with the given model and attached to the given slack prismatic constraint.

Note: This encoder instance is invalid if the given model is nullptr.

Parameters

prismatic	- slack prismatic constraint to attach to and sample from
model	- model defining the parameters of this encoder instance, invalid if nullptr

◆ Encoder() [8/9]

agxSensor::Encoder::Encoder	(	agxVehicle::WheelJoint *	wheel,
		EncoderModel *	model,
		agxVehicle::WheelJoint::SecondaryConstraint	sampleDof = `agxVehicle::WheelJoint::WHEEL`
	)

Construct this encoder with the given model and attached to the given wheel joint constraint.

Note: This encoder instance is invalid if the given model is nullptr.

Parameters

wheel	- wheel constraint to attach to and sample from
model	- model defining the parameters of this encoder instance, invalid if nullptr
sampleDof	- DoF index from which the encoder should sample

◆ Encoder() [9/9]

agxSensor::Encoder::Encoder	(	agx::Constraint *	constraint,
		EncoderModel *	model,
		agx::UInt	sampleDof
	)

Construct this encoder with the given model and attached to the given constraint.

Note: This encoder instance is invalid if the given model is nullptr.

Parameters

constraint	- constraint to attach to and sample from
model	- model defining the parameters of this encoder instance, invalid if nullptr
sampleDof	- DoF index from which the encoder should sample

Member Function Documentation

◆ find() [1/2]

static Encoder * agxSensor::Encoder::find	(	const agxSDK::Simulation *	simulation,
		const agx::Name &	name
	)

static

Find encoder given name.

Parameters

simulation	- simulation with a sensor environment
name	- name of encoder instance to search for

Returns: first encoder instance with name name if found, otherwise nullptr

◆ find() [2/2]

static Encoder * agxSensor::Encoder::find	(	const Environment *	environment,
		const agx::Name &	name
	)

static

Find encoder given name.

Parameters

environment	- sensor environment
name	- name of encoder instance to search for

Returns: first encoder instance with name name if found, otherwise nullptr

◆ findAll() [1/4]

static EncoderPtrVector agxSensor::Encoder::findAll ( const agxSDK::Simulation * simulation )

static

Find all encoders.

Parameters

simulation - simulation with a sensor environment

Returns: all encoder instances in the sensor environment

◆ findAll() [2/4]

static EncoderPtrVector agxSensor::Encoder::findAll	(	const agxSDK::Simulation *	simulation,
		const agx::Name &	name
	)

static

Find all encoders, given name.

Parameters

simulation	- simulation with a sensor environment
name	- name of encoder instance to search for

Returns: encoder instances with name name

◆ findAll() [3/4]

static EncoderPtrVector agxSensor::Encoder::findAll ( const Environment * environment )

static

Find all encoders.

Parameters

environment - sensor environment

Returns: all encoder instances in the given sensor environment environment

◆ findAll() [4/4]

static EncoderPtrVector agxSensor::Encoder::findAll	(	const Environment *	environment,
		const agx::Name &	name
	)

static

Find all encoders, given name.

Parameters

environment	- sensor environment
name	- name of encoder instance to search for

Returns: encoder instances with name name

◆ getConstraint()

virtual agx::Constraint * agxSensor::Encoder::getConstraint ( ) const

overridevirtual

Returns: the constraint of this encoder, defining what the encoder is attached to

Implements agxSensor::ConstraintAttachedSensor.

◆ getConstraintSampleDof()

agx::UInt agxSensor::Encoder::getConstraintSampleDof ( ) const

Returns: DoF index in the constraint from which the encoder samples the positional value

◆ getModel()

EncoderModel * agxSensor::Encoder::getModel ( ) const

Returns: the model of this encoder

◆ getOutputHandler()

EncoderOutputHandler * agxSensor::Encoder::getOutputHandler ( ) const

Returns: the output handler managing the outputs from the encoder

◆ getOutputHandlerBase()

virtual ISensorOutputHandler * agxSensor::Encoder::getOutputHandlerBase ( ) const

overridevirtual

Returns: the output handler managing the outputs from the encoder

Implements agxSensor::Sensor.

◆ setConstraint()

virtual void agxSensor::Encoder::setConstraint ( agx::Constraint * constraint )

overridevirtual

Assign a new parent constraint to attach this encoder to.

The effects will take place the next time the environment is stepped.

Parameters

constraint - new constraint for this encoder

Implements agxSensor::ConstraintAttachedSensor.

◆ setConstraintSampleDof()

void agxSensor::Encoder::setConstraintSampleDof ( agx::UInt dof )

Set the DoF in the constraint form which the encoder samples the positional value.

Parameters

dof	- DoF index in the constraint to sample

The documentation for this class was generated from the following file:

Encoder.h

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Encoder() [1/9]

◆ Encoder() [2/9]

◆ Encoder() [3/9]

◆ Encoder() [4/9]

◆ Encoder() [5/9]

◆ Encoder() [6/9]

◆ Encoder() [7/9]

◆ Encoder() [8/9]

◆ Encoder() [9/9]

Member Function Documentation

◆ find() [1/2]

◆ find() [2/2]

◆ findAll() [1/4]

◆ findAll() [2/4]

◆ findAll() [3/4]

◆ findAll() [4/4]

◆ getConstraint()

◆ getConstraintSampleDof()

◆ getModel()

◆ getOutputHandler()

◆ getOutputHandlerBase()

◆ setConstraint()

◆ setConstraintSampleDof()
