Interface for system node behavioral implementations intended to have multiple states/instances (SystemNodeProxy/ies) in the system graph. More...

#include <SystemNodeProxy.h>

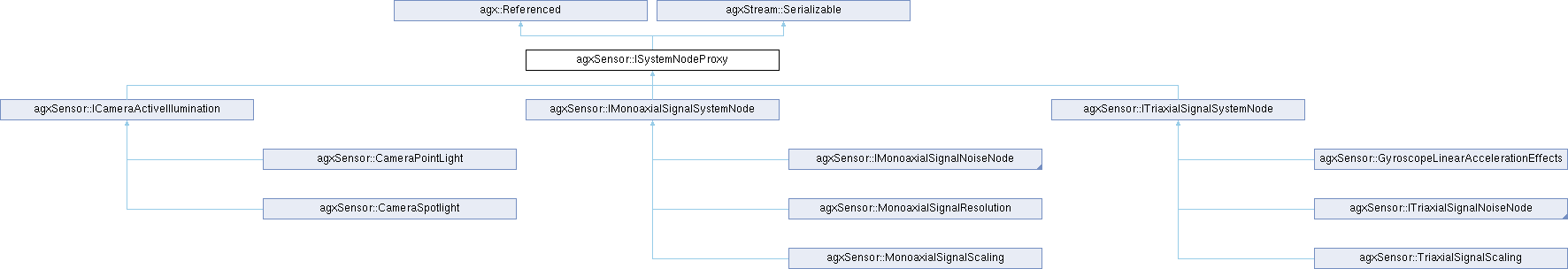

Inheritance diagram for agxSensor::ISystemNodeProxy:

Public Types
using	CallbackData = SystemNode::CallbackData

Public Member Functions
virtual bool	addNotification (SystemNodeProxy &proxy)
	Called when this system node has been added to a sensor environment.

virtual void	cleanup (SystemNodeProxy &proxy)=0
	The sensor environment is being put down, clean everything.

virtual void	complete (SystemNodeProxy &proxy)
	Complete the execution of this system, finishing the integration forward in time.

virtual SystemNodeProxyRef	createProxy ()=0

virtual void	execute (SystemNodeProxy &proxy, const CallbackData &data)
	Execute this system, integrating it `data.dt` forward in time.

virtual bool	onAdd (SystemNodeProxy &proxy, agx::Referenced &instance)
	Called when an object has been added to the sensor environment.

virtual void	onChildAdded (SystemNodeProxy &proxy, SystemNode &child)
	Called when `child` has been added to this parent.

virtual void	onChildRemoved (SystemNodeProxy &proxy, SystemNode &child)
	Called when `child` has been removed from this parent.

virtual bool	onRemove (SystemNodeProxy &proxy, agx::Referenced &instance)
	Called when an object has been removed from the sensor environment.

virtual void	removeNotification (SystemNodeProxy &proxy)
	Called when this system node is being removed from a sensor environment.

virtual void	result (SystemNodeProxy &proxy, const CallbackData &data)
	If necessary assemble, and fetch results related to this system node after a step by `data.dt` has been completed.

virtual void	synchronize (SystemNodeProxy &proxy, const CallbackData &data)
	Synchronization from the main thread.

virtual void	synchronizeGraphics (SystemNodeProxy &proxy, const agxRender::RenderManager &renderManager)
	At the very end of a step, synchronize any graphics related aspects of the system node.

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Public Member Functions inherited from agxStream::Serializable
virtual	~Serializable ()
	Destructor for normal C++ use but hidden from SWIG bindings.

virtual const char *	getClassName () const

bool	getEnableSerialization () const

bool	getEnableUuidGeneration ()

agx::UInt32	getIndex () const
	This index is given at creation of this object.

virtual StorageAgent *	getStorageAgent () const =0

agx::Uuid	getUuid () const

bool	isFinished () const

void	setEnableSerialization (bool flag)
	Set to false to disable serialization of this object.

void	setFinished ()
	Tells this class that it is restored correctly and should not be deleted during destruction of an Archive.

void	setUuid (const agx::Uuid &uuid)
	Explicitly set a Uuid on a serializable object.

Additional Inherited Members
Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Static Public Member Functions inherited from agxStream::Serializable
static void	setEnableUuidGeneration (bool flag)
	Specify if there should be UUID:s generated for each new Serializable object. By default it is enabled.

Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Protected Member Functions inherited from agxStream::Serializable
	Serializable ()
	Default constructor.

	Serializable (const Serializable &other)
	Copy constructor.

void	generateUuid ()

Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Detailed Description

Interface for system node behavioral implementations intended to have multiple states/instances (SystemNodeProxy/ies) in the system graph.

These implementations only store behavioral implementation parameters, while leaving the runtime state to each instance/proxy in the system graph.

Definition at line 32 of file SystemNodeProxy.h.

Member Typedef Documentation

◆ CallbackData

using agxSensor::ISystemNodeProxy::CallbackData = SystemNode::CallbackData

Definition at line 37 of file SystemNodeProxy.h.

Member Function Documentation

◆ addNotification()

virtual bool agxSensor::ISystemNodeProxy::addNotification ( SystemNodeProxy & proxy )

virtual

Called when this system node has been added to a sensor environment.

Parameters

proxy - system graph instance (proxy) carrying this implementation

Returns: true if successful and is ready to receive runtime calls

◆ cleanup()

virtual void agxSensor::ISystemNodeProxy::cleanup ( SystemNodeProxy & proxy )

pure virtual

The sensor environment is being put down, clean everything.

Parameters

proxy - system graph instance (proxy) carrying this implementation

◆ complete()

virtual void agxSensor::ISystemNodeProxy::complete ( SystemNodeProxy & proxy )

virtual

Complete the execution of this system, finishing the integration forward in time.

This call is made from a thread separate from the main/simulation thread so it's not valid to read data from the objects being simulated.

Parameters

proxy - system graph instance (proxy) carrying this implementation

◆ createProxy()

virtual SystemNodeProxyRef agxSensor::ISystemNodeProxy::createProxy ( )

pure virtual

Returns: new, unique, system node (proxy) of this implementation

◆ execute()

virtual void agxSensor::ISystemNodeProxy::execute	(	SystemNodeProxy &	proxy,
		const CallbackData &	data
	)

virtual

Execute this system, integrating it data.dt forward in time.

This call is made from a thread separate from the main/simulation thread so it's not valid to read data from the objects being simulated.

Parameters

proxy	- system graph instance (proxy) carrying this implementation
data	- runtime step data

◆ onAdd()

virtual bool agxSensor::ISystemNodeProxy::onAdd	(	SystemNodeProxy &	proxy,
		agx::Referenced &	instance
	)

virtual

Called when an object has been added to the sensor environment.

Parameters

proxy	- system graph instance (proxy) carrying this implementation
instance	- object that was added to the sensor environment

Returns: true if the object is consumed by the system, false if this system node doesn't handle/support this object.

◆ onChildAdded()

virtual void agxSensor::ISystemNodeProxy::onChildAdded	(	SystemNodeProxy &	proxy,
		SystemNode &	child
	)

virtual

Called when child has been added to this parent.

Parameters

proxy	- system graph instance (proxy) carrying this implementation
child	- child that has been added

◆ onChildRemoved()

virtual void agxSensor::ISystemNodeProxy::onChildRemoved	(	SystemNodeProxy &	proxy,
		SystemNode &	child
	)

virtual

Called when child has been removed from this parent.

Parameters

proxy	- system graph instance (proxy) carrying this implementation
child	- child that has been removed

◆ onRemove()

virtual bool agxSensor::ISystemNodeProxy::onRemove	(	SystemNodeProxy &	proxy,
		agx::Referenced &	instance
	)

virtual

Called when an object has been removed from the sensor environment.

Parameters

proxy	- system graph instance (proxy) carrying this implementation
instance	- object that was removed from the sensor environment

Returns: true if the object is consumed by the system, false if this system node doesn't handle/support this object.

◆ removeNotification()

virtual void agxSensor::ISystemNodeProxy::removeNotification ( SystemNodeProxy & proxy )

virtual

Called when this system node is being removed from a sensor environment.

Parameters

proxy - system graph instance (proxy) carrying this implementation

◆ result()

virtual void agxSensor::ISystemNodeProxy::result	(	SystemNodeProxy &	proxy,
		const CallbackData &	data
	)

virtual

If necessary assemble, and fetch results related to this system node after a step by data.dt has been completed.

This call is made from the main thread, post-step, and thus allows the latest possible data from objects/simulation to be read and processed.

Parameters

proxy	- system graph instance (proxy) carrying this implementation
data	- runtime step data

◆ synchronize()

virtual void agxSensor::ISystemNodeProxy::synchronize	(	SystemNodeProxy &	proxy,
		const CallbackData &	data
	)

virtual

Synchronization from the main thread.

Read data from objects/simulation should be done here before execute/stepping is made separate from the main thread.

Parameters

proxy	- system graph instance (proxy) carrying this implementation
data	- runtime step data

◆ synchronizeGraphics()

virtual void agxSensor::ISystemNodeProxy::synchronizeGraphics	(	SystemNodeProxy &	proxy,
		const agxRender::RenderManager &	renderManager
	)

virtual

At the very end of a step, synchronize any graphics related aspects of the system node.

Parameters

proxy	- system graph instance (proxy) carrying this implementation
renderManager	- simulation render manager

The documentation for this class was generated from the following file:

SystemNodeProxy.h
