Handler responsible for how the magnetometer readings are assembled and provided to the user. More...

#include <MagnetometerOutputHandler.h>

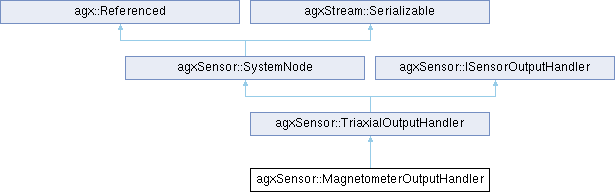

Inheritance diagram for agxSensor::MagnetometerOutputHandler:

Public Member Functions
	MagnetometerOutputHandler ()
	Default constructor.

bool	add (TriaxialGaussianNoise *noise)
	Add a Gaussian noise instance to the system tree.

bool	add (TriaxialSignalScaling *scaling)
	Add a signal scaling instance to the system tree.

bool	add (TriaxialSpectralGaussianNoise *noise)
	Add a noise density based noise instance to the system tree.

bool	contains (const TriaxialGaussianNoise *noise) const

bool	contains (const TriaxialSignalScaling *scaling) const

bool	contains (const TriaxialSpectralGaussianNoise *noise) const

bool	remove (TriaxialGaussianNoise *noise)
	Remove the Gaussian noise instance from the system tree.

bool	remove (TriaxialSignalScaling *scaling)
	Remove the signal scaling instance from the system tree.

bool	remove (TriaxialSpectralGaussianNoise *noise)
	Remove the noise density based noise instance from the system tree.

Public Member Functions inherited from agxSensor::TriaxialOutputHandler
	TriaxialOutputHandler ()
	Default constructor.

template<typename T , TriaxialOutput::Field... field>
OptionalTriaxialOutputMapping	add ()
	Build matching triaxial output to a given data type T.

template<typename T , TriaxialOutput::Field... field>
bool	add (size_t uniqueId)
	Build matching triaxial output to a given data type T and add it mapped to the given unique id.

bool	add (size_t uniqueId, TriaxialOutput *output)
	Add the given triaxial output to the output handler mapped to the given unique id.

OptionalUniqueId	add (TriaxialOutput *output)
	Add the given triaxial output to the output handler.

TriaxialOutput *	get (size_t uniqueId)
	Access triaxial output instance given the unique id from when it was added.

ISensorOutput *	getBase (size_t uniqueId) override
	Access triaxial output instance given the unique id from when it was added.

ITriaxialSignalSystemNodeRefVector	getOutputModifiers () const

Public Member Functions inherited from agxSensor::SystemNode
	SystemNode (const SystemNode &)=delete
	Disallow direct copying of nodes.

virtual	~SystemNode ()=default

bool	addChild (SystemNode *child)
	Add unique child to this node.

virtual bool	addNotification ()
	Called when this system node has been added to a sensor environment.

bool	appendChild (SystemNode *child)
	Append child to vector of children, silently.

virtual void	cleanup ()=0
	The sensor environment is being put down, clean everything.

virtual void	complete ()
	Complete the execution of this system, finishing the integration forward in time.

bool	detachChild (SystemNode *child)
	Detach/erase child from vector of children, silently.

virtual bool	eraseAndConnect ()
	Erase this node from the tree and connect its children to the current parent of this node.

virtual void	execute (const CallbackData &data)
	Execute this system, integrating it `data.dt` forward in time.

template<typename T >
T *	findChild (bool recurse=true) const
	Find child of given type.

template<typename PredicateT >
SystemNode *	findChild (PredicateT pred, bool recurse=true) const
	Find child given predicate `pred`.

template<typename T >
T *	findParent () const

template<typename PredicateT >
SystemNode *	findParent (PredicateT pred) const
	Find parent given predicate.

template<typename T >
T *	getChild () const
	Searches children for a node of given type.

SystemNode *	getChild (size_t index) const

bool	getEnable () const

Environment *	getEnvironment () const

const agx::Name &	getName () const

size_t	getNumChildren () const

SystemNode *	getParent () const

SystemNode *	getRoot () const

bool	hasChild (const SystemNode *child, bool recurse=true) const

virtual bool	insertParent (SystemNode &parent)
	Inserts new parent to this node.

virtual bool	onAdd (agx::Referenced &instance)
	Called when an object has been added to the sensor environment.

virtual void	onChildAdded (SystemNode &child)
	Called when `child` has been added to this parent.

virtual void	onChildRemoved (SystemNode &child)
	Called when `child` has been removed from this parent.

virtual bool	onRemove (agx::Referenced &instance)
	Called when an object has been removed from the sensor environment.

bool	removeChild (SystemNode *child)
	Remove child from this node.

virtual void	removeNotification ()
	Called when this system node is being removed from a sensor environment.

virtual void	result (const CallbackData &data)
	If necessary assemble, and fetch results related to this system node after a step by `data.dt` has been completed.

void	setEnable (bool enable)
	Enable/disable this node.

void	setName (const agx::Name &name)
	Assign name to this node.

virtual void	synchronize (const CallbackData &data)
	Synchronization from the main thread.

virtual void	synchronizeGraphics (const agxRender::RenderManager &renderManager)
	At the very end of a step, synchronize any graphics related aspects of the system node.

template<typename VisitorT >
SystemNode *	visitBf (VisitorT visitor) const
	Visit the tree from, including, this node until `callback` returns true - using breadth first traversal.

template<typename VisitorT >
void	visitChildren (VisitorT visitor, bool recurse=true) const
	Visit all children with `func` as void( const SystemNode& child ).

template<typename VisitorT >
SystemNode *	visitChildrenBf (VisitorT visitor) const
	Visit the tree from the children of this node until `callback` returns true - using breadth first traversal.

template<typename VisitorT >
SystemNode *	visitChildrenDf (VisitorT visitor) const
	Visit the tree from the children of this node until `callback` returns true - using depth first traversal.

template<typename T , typename VisitorT >
void	visitChildrenOfType (VisitorT visitor, bool recurse=true) const
	Visit all children with `func` as void( const T& child ).

template<typename VisitorT >
SystemNode *	visitDf (VisitorT visitor) const
	Visit the tree from, including, this node until `callback` returns true - using depth first traversal.

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Public Member Functions inherited from agxStream::Serializable
virtual	~Serializable ()
	Destructor for normal C++ use but hidden from SWIG bindings.

virtual const char *	getClassName () const

bool	getEnableSerialization () const

bool	getEnableUuidGeneration ()

agx::UInt32	getIndex () const
	This index is given at creation of this object.

virtual StorageAgent *	getStorageAgent () const =0

agx::Uuid	getUuid () const

bool	isFinished () const

void	setEnableSerialization (bool flag)
	Set to false to disable serialization of this object.

void	setFinished ()
	Tells this class that it is restored correctly and should not be deleted during destruction of an Archive.

void	setUuid (const agx::Uuid &uuid)
	Explicitly set a Uuid on a serializable object.

Public Member Functions inherited from agxSensor::ISensorOutputHandler
	ISensorOutputHandler ()=default
	Default constructor.

ISensorOutput *	get (size_t uniqueId)
	Access sensor output instance given the unique id from when it was added.

virtual ISensorOutput *	getBase (size_t uniqueId)=0
	Access sensor output instance given the unique id from when it was added.

template<typename T >
BinaryOutputView< T >	view (size_t uniqueId)
	Directly access an output view of the sensor output instance given the unique id from when it was added.

Additional Inherited Members
Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Static Public Member Functions inherited from agxStream::Serializable
static void	setEnableUuidGeneration (bool flag)
	Specify if there should be UUID:s generated for each new Serializable object. By default it is enabled.

Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Protected Member Functions inherited from agxStream::Serializable
	Serializable ()
	Default constructor.

	Serializable (const Serializable &other)
	Copy constructor.

void	generateUuid ()

Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Protected Attributes inherited from agxSensor::TriaxialOutputHandler
TriaxialSignalSystemNodeRefVector	m_outputModifiers

OutputTable	m_outputs

SystemNodeRef	m_tailNode

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Detailed Description

Handler responsible for how the magnetometer readings are assembled and provided to the user.

Definition at line 29 of file MagnetometerOutputHandler.h.

Constructor & Destructor Documentation

◆ MagnetometerOutputHandler()

agxSensor::MagnetometerOutputHandler::MagnetometerOutputHandler ( )

Default constructor.

Member Function Documentation

◆ add() [1/3]

bool agxSensor::MagnetometerOutputHandler::add ( TriaxialGaussianNoise * noise )

Add a Gaussian noise instance to the system tree.

Parameters

noise - output noise to add to the system tree

Returns: true if added successfully, false if nullptr or already added

◆ add() [2/3]

bool agxSensor::MagnetometerOutputHandler::add ( TriaxialSignalScaling * scaling )

Add a signal scaling instance to the system tree.

Parameters

scaling - signal scaling to add to the system tree

Returns: true if added successfully, false if nullptr or already added

◆ add() [3/3]

bool agxSensor::MagnetometerOutputHandler::add ( TriaxialSpectralGaussianNoise * noise )

Add a noise density based noise instance to the system tree.

Parameters

noise - output noise to add to the system tree

Returns: true if added successfully, false if nullptr or already added

◆ contains() [1/3]

bool agxSensor::MagnetometerOutputHandler::contains ( const TriaxialGaussianNoise * noise ) const

Parameters

noise - noise instance to check if present and active

Returns: true if noise is part of this output handler

◆ contains() [2/3]

bool agxSensor::MagnetometerOutputHandler::contains ( const TriaxialSignalScaling * scaling ) const

Parameters

scaling - signal scaling instance to check if present and active

Returns: true if scaling is part of this output handler

◆ contains() [3/3]

bool agxSensor::MagnetometerOutputHandler::contains ( const TriaxialSpectralGaussianNoise * noise ) const

Parameters

noise - noise instance to check if present and active

Returns: true if noise is part of this output handler

◆ remove() [1/3]

bool agxSensor::MagnetometerOutputHandler::remove ( TriaxialGaussianNoise * noise )

Remove the Gaussian noise instance from the system tree.

The noise will no longer be applied to the output data if removed successfully.

Parameters

noise - noise to remove

Returns: true if removed successfully, false if nullptr or not part of this system tree

◆ remove() [2/3]

bool agxSensor::MagnetometerOutputHandler::remove ( TriaxialSignalScaling * scaling )

Remove the signal scaling instance from the system tree.

The scaling will no longer be applied to the output data if removed successfully.

Parameters

scaling - scaling to remove

Returns: true if removed successfully, false if nullptr or not part of this system tree

◆ remove() [3/3]

bool agxSensor::MagnetometerOutputHandler::remove ( TriaxialSpectralGaussianNoise * noise )

Remove the noise density based noise instance from the system tree.

The noise will no longer be applied to the output data if removed successfully.

Parameters

noise - noise to remove

Returns: true if removed successfully, false if nullptr or not part of this system tree

The documentation for this class was generated from the following file:

MagnetometerOutputHandler.h

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MagnetometerOutputHandler()

Member Function Documentation

◆ add() [1/3]

◆ add() [2/3]

◆ add() [3/3]

◆ contains() [1/3]

◆ contains() [2/3]

◆ contains() [3/3]

◆ remove() [1/3]

◆ remove() [2/3]

◆ remove() [3/3]
