System node is a separate step/operation in an execution tree representing a sensor (or such) in a sensor simulation environment. More...

#include <SystemNode.h>

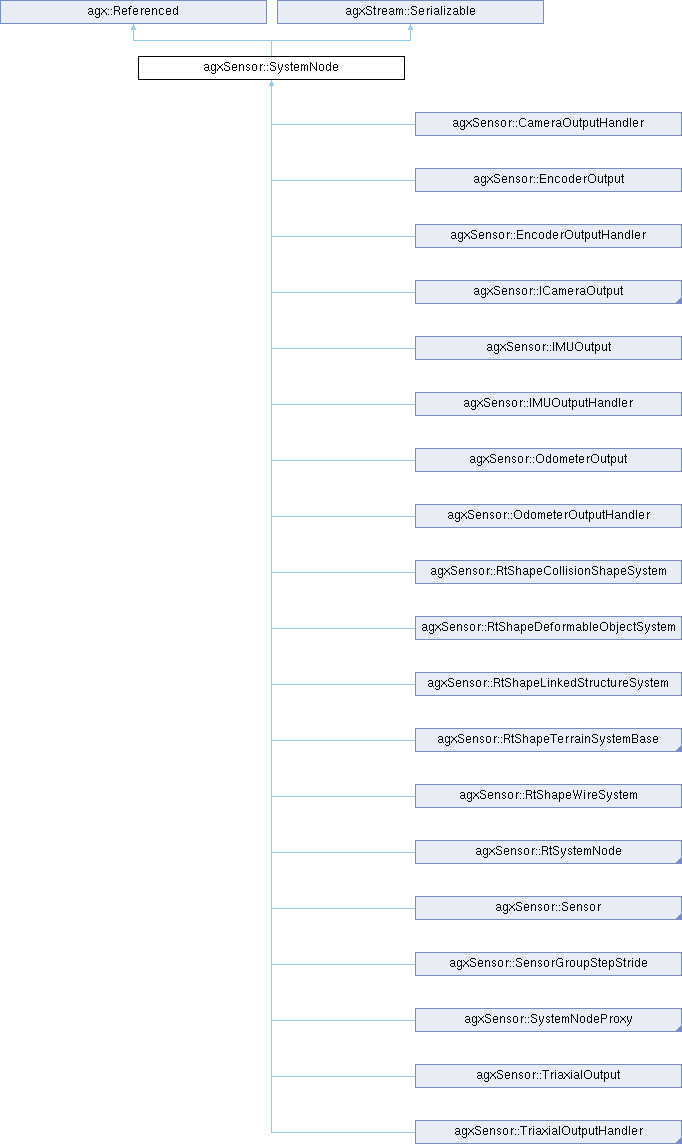

Inheritance diagram for agxSensor::SystemNode:

Classes
struct	CallbackData

Public Member Functions
	SystemNode (const SystemNode &)=delete
	Disallow direct copying of nodes.

virtual	~SystemNode ()=default

bool	addChild (SystemNode *child)
	Add unique child to this node.

virtual bool	addNotification ()
	Called when this system node has been added to a sensor environment.

bool	appendChild (SystemNode *child)
	Append child to vector of children, silently.

virtual void	cleanup ()=0
	The sensor environment is being put down, clean everything.

virtual void	complete ()
	Complete the execution of this system, finishing the integration forward in time.

bool	detachChild (SystemNode *child)
	Detach/erase child from vector of children, silently.

virtual bool	eraseAndConnect ()
	Erase this node from the tree and connect its children to the current parent of this node.

virtual void	execute (const CallbackData &data)
	Execute this system, integrating it `data.dt` forward in time.

template<typename T >
T *	findChild (bool recurse=true) const
	Find child of given type.

template<typename PredicateT >
SystemNode *	findChild (PredicateT pred, bool recurse=true) const
	Find child given predicate `pred`.

template<typename T >
T *	findParent () const

template<typename PredicateT >
SystemNode *	findParent (PredicateT pred) const
	Find parent given predicate.

template<typename T >
T *	getChild () const
	Searches children for a node of given type.

SystemNode *	getChild (size_t index) const

bool	getEnable () const

Environment *	getEnvironment () const

const agx::Name &	getName () const

size_t	getNumChildren () const

SystemNode *	getParent () const

SystemNode *	getRoot () const

bool	hasChild (const SystemNode *child, bool recurse=true) const

virtual bool	insertParent (SystemNode &parent)
	Inserts new parent to this node.

virtual bool	onAdd (agx::Referenced &instance)
	Called when an object has been added to the sensor environment.

virtual void	onChildAdded (SystemNode &child)
	Called when `child` has been added to this parent.

virtual void	onChildRemoved (SystemNode &child)
	Called when `child` has been removed from this parent.

virtual bool	onRemove (agx::Referenced &instance)
	Called when an object has been removed from the sensor environment.

bool	removeChild (SystemNode *child)
	Remove child from this node.

virtual void	removeNotification ()
	Called when this system node is being removed from a sensor environment.

virtual void	result (const CallbackData &data)
	If necessary assemble, and fetch results related to this system node after a step by `data.dt` has been completed.

void	setEnable (bool enable)
	Enable/disable this node.

void	setName (const agx::Name &name)
	Assign name to this node.

virtual void	synchronize (const CallbackData &data)
	Synchronization from the main thread.

virtual void	synchronizeGraphics (const agxRender::RenderManager &renderManager)
	At the very end of a step, synchronize any graphics related aspects of the system node.

template<typename VisitorT >
SystemNode *	visitBf (VisitorT visitor) const
	Visit the tree from, including, this node until `callback` returns true - using breadth first traversal.

template<typename VisitorT >
void	visitChildren (VisitorT visitor, bool recurse=true) const
	Visit all children with `func` as void( const SystemNode& child ).

template<typename VisitorT >
SystemNode *	visitChildrenBf (VisitorT visitor) const
	Visit the tree from the children of this node until `callback` returns true - using breadth first traversal.

template<typename VisitorT >
SystemNode *	visitChildrenDf (VisitorT visitor) const
	Visit the tree from the children of this node until `callback` returns true - using depth first traversal.

template<typename T , typename VisitorT >
void	visitChildrenOfType (VisitorT visitor, bool recurse=true) const
	Visit all children with `func` as void( const T& child ).

template<typename VisitorT >
SystemNode *	visitDf (VisitorT visitor) const
	Visit the tree from, including, this node until `callback` returns true - using depth first traversal.

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Public Member Functions inherited from agxStream::Serializable
virtual	~Serializable ()
	Destructor for normal C++ use but hidden from SWIG bindings.

virtual const char *	getClassName () const

bool	getEnableSerialization () const

bool	getEnableUuidGeneration ()

agx::UInt32	getIndex () const
	This index is given at creation of this object.

virtual StorageAgent *	getStorageAgent () const =0

agx::Uuid	getUuid () const

bool	isFinished () const

void	setEnableSerialization (bool flag)
	Set to false to disable serialization of this object.

void	setFinished ()
	Tells this class that it is restored correctly and should not be deleted during destruction of an Archive.

void	setUuid (const agx::Uuid &uuid)
	Explicitly set a Uuid on a serializable object.

Additional Inherited Members
Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Static Public Member Functions inherited from agxStream::Serializable
static void	setEnableUuidGeneration (bool flag)
	Specify if there should be UUID:s generated for each new Serializable object. By default it is enabled.

Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Protected Member Functions inherited from agxStream::Serializable
	Serializable ()
	Default constructor.

	Serializable (const Serializable &other)
	Copy constructor.

void	generateUuid ()

Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Detailed Description

System node is a separate step/operation in an execution tree representing a sensor (or such) in a sensor simulation environment.

Definition at line 43 of file SystemNode.h.

Constructor & Destructor Documentation

◆ SystemNode()

agxSensor::SystemNode::SystemNode ( const SystemNode & )

delete

Disallow direct copying of nodes.

◆ ~SystemNode()

virtual agxSensor::SystemNode::~SystemNode ( )

virtualdefault

Member Function Documentation

◆ addChild()

bool agxSensor::SystemNode::addChild ( SystemNode * child )

Add unique child to this node.

Parameters

child - child to add

Returns: true if added successfully, false if nullptr or already a child

◆ addNotification()

virtual bool agxSensor::SystemNode::addNotification ( )

virtual

Called when this system node has been added to a sensor environment.

Returns: true if successful and is ready to receive runtime calls

Reimplemented in agxSensor::RtSystemNode.

◆ appendChild()

bool agxSensor::SystemNode::appendChild ( SystemNode * child )

Append child to vector of children, silently.

This method will just check so that child hasn't already been added and set its parent (and push_back in vector) if not.

Parameters

child - child to add

Returns: true if added, false if nullptr or already added

◆ cleanup()

virtual void agxSensor::SystemNode::cleanup ( )

pure virtual

The sensor environment is being put down, clean everything.

Implemented in agxSensor::RtSystemNode, and agxSensor::SensorGroupStepStride.

◆ complete()

virtual void agxSensor::SystemNode::complete ( )

virtual

Complete the execution of this system, finishing the integration forward in time.

This call is made from a thread separate from the main/simulation thread so it's not valid to read data from the objects being simulated.

◆ detachChild()

bool agxSensor::SystemNode::detachChild ( SystemNode * child )

Detach/erase child from vector of children, silently.

This method will just check so that child is a child and has this node as parent.

Parameters

child - child to erase

Returns: true if erased, false if nullptr or not child to this node

◆ eraseAndConnect()

virtual bool agxSensor::SystemNode::eraseAndConnect ( )

virtual

Erase this node from the tree and connect its children to the current parent of this node.

Fails if this node doesn't have any children.

Note: This node may be destructed if no references are held to this node.

Returns: true if successfully erased

◆ execute()

virtual void agxSensor::SystemNode::execute ( const CallbackData & data )

virtual

Execute this system, integrating it data.dt forward in time.

This call is made from a thread separate from the main/simulation thread so it's not valid to read data from the objects being simulated.

Parameters

data	- runtime step data

◆ findChild() [1/2]

template<typename T >

T * agxSensor::SystemNode::findChild ( bool recurse = true ) const

Find child of given type.

If recurse is true, the search continues to the leafs.

Parameters

recurse - true to continue search to the leafs, false to only search this parents children

Returns: first child of given type, nullptr if not found

Definition at line 524 of file SystemNode.h.

◆ findChild() [2/2]

template<typename PredicateT >

SystemNode * agxSensor::SystemNode::findChild	(	PredicateT	pred,
		bool	recurse = `true`
	)		const

Find child given predicate pred.

If recurse is true, the search continues to the leafs.

Parameters

pred	- predicate bool( const SystemNode& child ) returning true if a child is a match, otherwise false
recurse	- true to continue search to the leafs, false to only search this parents children

Returns: child matching pred, otherwise nullptr for no match

Definition at line 502 of file SystemNode.h.

◆ findParent() [1/2]

template<typename T >

T * agxSensor::SystemNode::findParent

Returns: first parent of given type, nullptr if not found

Definition at line 561 of file SystemNode.h.

◆ findParent() [2/2]

template<typename PredicateT >

SystemNode * agxSensor::SystemNode::findParent ( PredicateT pred ) const

Find parent given predicate.

Parameters

pred	- predicate bool( const SystemNode& parent ) returning true if parent is a match, otherwise false

Returns: parent matching pred, otherwise nullptr for no match

Definition at line 551 of file SystemNode.h.

◆ getChild() [1/2]

template<typename T >

T * agxSensor::SystemNode::getChild

Searches children for a node of given type.

Note that it's only the children of which this node is parent that is searched.

Returns: child with type T if found, otherwise nullptr

See also: findChild

Definition at line 496 of file SystemNode.h.

◆ getChild() [2/2]

SystemNode * agxSensor::SystemNode::getChild ( size_t index ) const

Parameters

index - index of child

Returns: child with index index

◆ getEnable()

bool agxSensor::SystemNode::getEnable ( ) const

Returns: true if this node is enabled, false if disabled

◆ getEnvironment()

Environment * agxSensor::SystemNode::getEnvironment ( ) const

Returns: the sensor environment this node is part of

◆ getName()

const agx::Name & agxSensor::SystemNode::getName ( ) const

Returns: the name of this node

◆ getNumChildren()

size_t agxSensor::SystemNode::getNumChildren ( ) const

Returns: the number of children of this node

◆ getParent()

SystemNode * agxSensor::SystemNode::getParent ( ) const

Returns: parent of this node, nullptr if this is the root node

◆ getRoot()

SystemNode * agxSensor::SystemNode::getRoot ( ) const

Returns: the node with nullptr parent

◆ hasChild()

bool agxSensor::SystemNode::hasChild	(	const SystemNode *	child,
		bool	recurse = `true`
	)		const

Parameters

child	- possible child node
recurse	- true to continue search to the leafs, false to only search this parents children

Returns: the if child is child to this node, otherwise false

◆ insertParent()

virtual bool agxSensor::SystemNode::insertParent ( SystemNode & parent )

virtual

Inserts new parent to this node.

The previous parent to this node will get parent as child.

Parameters

parent - new parent to this node

Returns: true if successful, false if initialization of RtNode of parent failed

◆ onAdd()

virtual bool agxSensor::SystemNode::onAdd ( agx::Referenced & instance )

virtual

Called when an object has been added to the sensor environment.

Parameters

instance - object that was added to the sensor environment

Returns: true if the object is consumed by the system, false if this system node doesn't handle/support this object.

◆ onChildAdded()

virtual void agxSensor::SystemNode::onChildAdded ( SystemNode & child )

virtual

Called when child has been added to this parent.

Parameters

child - child that has been added

Reimplemented in agxSensor::RtSystemNode.

◆ onChildRemoved()

virtual void agxSensor::SystemNode::onChildRemoved ( SystemNode & child )

virtual

Called when child has been removed from this parent.

Parameters

child - child that has been removed

Reimplemented in agxSensor::RtSystemNode.

◆ onRemove()

virtual bool agxSensor::SystemNode::onRemove ( agx::Referenced & instance )

virtual

Called when an object has been removed from the sensor environment.

Parameters

instance - object that was removed from the sensor environment

Returns: true if the object is consumed by the system, false if this system node doesn't handle/support this object.

◆ removeChild()

bool agxSensor::SystemNode::removeChild ( SystemNode * child )

Remove child from this node.

Parameters

child - child to remove

Returns: true if removed successfully, false if nullptr or not child to this node

◆ removeNotification()

virtual void agxSensor::SystemNode::removeNotification ( )

virtual

Called when this system node is being removed from a sensor environment.

◆ result()

virtual void agxSensor::SystemNode::result ( const CallbackData & data )

virtual

If necessary assemble, and fetch results related to this system node after a step by data.dt has been completed.

This call is made from the main thread, post-step, and thus allows the latest possible data from objects/simulation to be read and processed.

Parameters

data	- runtime step data

◆ setEnable()

void agxSensor::SystemNode::setEnable ( bool enable )

Enable/disable this node.

Default enabled.

Parameters

enable - true (default) to enable, false to disable this node

◆ setName()

void agxSensor::SystemNode::setName ( const agx::Name & name )

Assign name to this node.

Parameters

name	- new name of this node

◆ synchronize()

virtual void agxSensor::SystemNode::synchronize ( const CallbackData & data )

virtual

Synchronization from the main thread.

Read data from objects/simulation should be done here before execute/stepping is made separate from the main thread.

Parameters

data	- runtime step data

◆ synchronizeGraphics()

virtual void agxSensor::SystemNode::synchronizeGraphics ( const agxRender::RenderManager & renderManager )

virtual

At the very end of a step, synchronize any graphics related aspects of the system node.

Parameters

renderManager - simulation render manager

◆ visitBf()

template<typename VisitorT >

SystemNode * agxSensor::SystemNode::visitBf ( VisitorT visitor ) const

Visit the tree from, including, this node until callback returns true - using breadth first traversal.

Template Parameters

VisitorT - implicit visitor type bool(SystemNode&) or similar

Parameters

visitor - node visitor returning true if match, return false to continue to the next node

Returns: node when visitor returns true, nullptr if no match

Definition at line 427 of file SystemNode.h.

◆ visitChildren()

template<typename VisitorT >

void agxSensor::SystemNode::visitChildren	(	VisitorT	visitor,
		bool	recurse = `true`
	)		const

Visit all children with func as void( const SystemNode& child ).

Parameters

visitor	- function to call for each child, void( SystemNode& child )
recurse	- true to continue the traverse to the leafs, false to only traverse this parents children

Definition at line 535 of file SystemNode.h.

◆ visitChildrenBf()

template<typename VisitorT >

SystemNode * agxSensor::SystemNode::visitChildrenBf ( VisitorT visitor ) const

Visit the tree from the children of this node until callback returns true - using breadth first traversal.

Template Parameters

VisitorT - implicit visitor type bool(SystemNode&) or similar

Parameters

visitor - node visitor returning true if match, return false to continue to the next node

Returns: node when visitor returns true, nullptr if no match

Definition at line 437 of file SystemNode.h.

◆ visitChildrenDf()

template<typename VisitorT >

SystemNode * agxSensor::SystemNode::visitChildrenDf ( VisitorT visitor ) const

Visit the tree from the children of this node until callback returns true - using depth first traversal.

Template Parameters

VisitorT - implicit visitor type bool(SystemNode&) or similar

Parameters

visitor - node visitor returning true if match, return false to continue to the next node

Returns: node when visitor returns true, nullptr if no match

Definition at line 471 of file SystemNode.h.

◆ visitChildrenOfType()

template<typename T , typename VisitorT >

void agxSensor::SystemNode::visitChildrenOfType	(	VisitorT	visitor,
		bool	recurse = `true`
	)		const

Visit all children with func as void( const T& child ).

Parameters

visitor	- function to call for each child, void( T& child )
recurse	- true to continue the traverse to the leafs, false to only traverse this parents children

Definition at line 571 of file SystemNode.h.

◆ visitDf()

template<typename VisitorT >

SystemNode * agxSensor::SystemNode::visitDf ( VisitorT visitor ) const

Visit the tree from, including, this node until callback returns true - using depth first traversal.

Template Parameters

VisitorT - implicit visitor type bool(SystemNode&) or similar

Parameters

visitor - node visitor returning true if match, return false to continue to the next node

Returns: node when visitor returns true, nullptr if no match

Definition at line 461 of file SystemNode.h.

The documentation for this class was generated from the following file:

SystemNode.h

Classes

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SystemNode()

◆ ~SystemNode()

Member Function Documentation

◆ addChild()

◆ addNotification()

◆ appendChild()

◆ cleanup()

◆ complete()

◆ detachChild()

◆ eraseAndConnect()

◆ execute()

◆ findChild() [1/2]

◆ findChild() [2/2]

◆ findParent() [1/2]

◆ findParent() [2/2]

◆ getChild() [1/2]

◆ getChild() [2/2]

◆ getEnable()

◆ getEnvironment()

◆ getName()

◆ getNumChildren()

◆ getParent()

◆ getRoot()

◆ hasChild()

◆ insertParent()

◆ onAdd()

◆ onChildAdded()

◆ onChildRemoved()

◆ onRemove()

◆ removeChild()

◆ removeNotification()

◆ result()

◆ setEnable()

◆ setName()

◆ synchronize()

◆ synchronizeGraphics()

◆ visitBf()

◆ visitChildren()

◆ visitChildrenBf()

◆ visitChildrenDf()

◆ visitChildrenOfType()

◆ visitDf()
