Base class for splines. More...

#include <Spline.h>

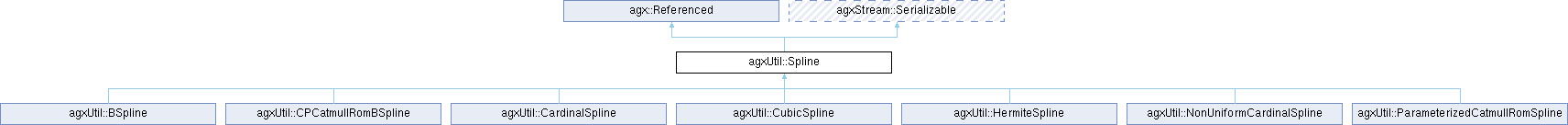

Inheritance diagram for agxUtil::Spline:

Classes
class	Point
	Point class for storing 3D point, tension, stretch and curvature. More...

class	Tangent
	Tangent. More...

Public Types
typedef agx::Vector< Point >	PointVector

typedef agx::Vector< Tangent >	TangentVector

Public Member Functions
	Spline ()
	Default constructor.

void	add (const agx::Vec3 &point, agx::Real tension=Point::DEFAULT_TENSION, agx::Real stretch=Point::DEFAULT_STRETCH, agx::Real curvature=Point::DEFAULT_CURVATURE)
	Add point to the control points given tension (1 max, 0 min) and stretch.

	AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE (agxUtil::Spline)

virtual void	clear ()
	Clears control points and tangents.

virtual Point	evaluate (size_t index, agx::Real t) const =0
	Interpolate from point with index `index` a time t forward (0 <= t <= 1)

size_t	getNumPoints () const

PointVector &	getPoints ()

const PointVector &	getPoints () const

virtual Tangent	getTangent (size_t, agx::Real) const

virtual agx::Real	getTension (size_t index, agx::Real time) const
	Linear interpolate of tension from point at index.

void	restore (agxStream::InputArchive &in) override

void	store (agxStream::OutputArchive &out) const override

virtual void	updateTangents ()=0
	All control points are added, computes the tangents.

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Public Member Functions inherited from agxStream::Serializable
virtual	~Serializable ()
	Destructor for normal C++ use but hidden from SWIG bindings.

virtual const char *	getClassName () const

bool	getEnableSerialization () const

bool	getEnableUuidGeneration ()

agx::UInt32	getIndex () const
	This index is given at creation of this object.

virtual StorageAgent *	getStorageAgent () const =0

agx::Uuid	getUuid () const

bool	isFinished () const

void	setEnableSerialization (bool flag)
	Set to false to disable serialization of this object.

void	setFinished ()
	Tells this class that it is restored correctly and should not be deleted during destruction of an Archive.

void	setUuid (const agx::Uuid &uuid)
	Explicitly set a Uuid on a serializable object.

Protected Member Functions
virtual	~Spline ()

Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Protected Member Functions inherited from agxStream::Serializable
	Serializable ()
	Default constructor.

	Serializable (const Serializable &other)
	Copy constructor.

void	generateUuid ()

Protected Attributes
PointVector	m_points

TangentVector	m_tangents

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Additional Inherited Members
Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Static Public Member Functions inherited from agxStream::Serializable
static void	setEnableUuidGeneration (bool flag)
	Specify if there should be UUID:s generated for each new Serializable object. By default it is enabled.

Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Detailed Description

Base class for splines.

Definition at line 31 of file Spline.h.

Member Typedef Documentation

◆ PointVector

typedef agx::Vector< Point > agxUtil::Spline::PointVector

Definition at line 85 of file Spline.h.

◆ TangentVector

typedef agx::Vector< Tangent > agxUtil::Spline::TangentVector

Definition at line 84 of file Spline.h.

Constructor & Destructor Documentation

◆ Spline()

agxUtil::Spline::Spline ( )

Default constructor.

◆ ~Spline()

virtual agxUtil::Spline::~Spline ( )

inlineprotectedvirtual

Definition at line 151 of file Spline.h.

Member Function Documentation

◆ add()

void agxUtil::Spline::add	(	const agx::Vec3 &	point,
		agx::Real	tension = `Point::DEFAULT_TENSION`,
		agx::Real	stretch = `Point::DEFAULT_STRETCH`,
		agx::Real	curvature = `Point::DEFAULT_CURVATURE`
	)

Add point to the control points given tension (1 max, 0 min) and stretch.

Parameters

point	- point to be added
tension	- tension at the specified point (clamped between 0 and 1)
stretch	- specified stretch at the point
curvature	- Specified curvature at the point

◆ AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE()

agxUtil::Spline::AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE ( agxUtil::Spline )

◆ clear()

virtual void agxUtil::Spline::clear ( )

virtual

Clears control points and tangents.

◆ evaluate()

virtual Point agxUtil::Spline::evaluate	(	size_t	index,
		agx::Real	t
	)		const

pure virtual

Interpolate from point with index index a time t forward (0 <= t <= 1)

Returns: Interpolated point, at a specified segment, at a specified time t.

Implemented in agxUtil::CubicSpline, agxUtil::CardinalSpline, agxUtil::NonUniformCardinalSpline, agxUtil::ParameterizedCatmullRomSpline, agxUtil::BSpline, agxUtil::CPCatmullRomBSpline, and agxUtil::HermiteSpline.

◆ getNumPoints()

size_t agxUtil::Spline::getNumPoints ( ) const

inline

Returns: number of points added

Definition at line 110 of file Spline.h.

◆ getPoints() [1/2]

PointVector & agxUtil::Spline::getPoints ( )

inline

Returns: vector containing the points added (class Spline::Point)

Definition at line 115 of file Spline.h.

◆ getPoints() [2/2]

const PointVector & agxUtil::Spline::getPoints ( ) const

inline

Returns: vector containing the points added (class Spline::Point)

Definition at line 121 of file Spline.h.

◆ getTangent()

virtual Tangent agxUtil::Spline::getTangent	(	size_t	,
		agx::Real
	)		const

inlinevirtual

Returns: the ith tangent computed (updated after updateTangents call, class Spline::Tangent)

Reimplemented in agxUtil::CubicSpline, agxUtil::CardinalSpline, agxUtil::NonUniformCardinalSpline, agxUtil::ParameterizedCatmullRomSpline, agxUtil::BSpline, agxUtil::CPCatmullRomBSpline, and agxUtil::HermiteSpline.

Definition at line 127 of file Spline.h.

◆ getTension()

agx::Real agxUtil::Spline::getTension	(	size_t	index,
		agx::Real	time
	)		const

inlinevirtual

Linear interpolate of tension from point at index.

Returns: interpolated tension at a given segment, at a specified time

Definition at line 161 of file Spline.h.

References agx::Vector< T, Allocator >::back(), agx::clamp(), agx::equalsZero(), agx::equivalent(), agxUtil::Spline::Point::getTension(), m_points, agx::RealEpsilon, and agx::Container::size().

◆ restore()

void agxUtil::Spline::restore ( agxStream::InputArchive & in )

override

◆ store()

void agxUtil::Spline::store ( agxStream::OutputArchive & out ) const

override

◆ updateTangents()

virtual void agxUtil::Spline::updateTangents ( )

pure virtual

All control points are added, computes the tangents.

Implemented in agxUtil::CubicSpline, agxUtil::CardinalSpline, agxUtil::NonUniformCardinalSpline, agxUtil::ParameterizedCatmullRomSpline, agxUtil::BSpline, agxUtil::CPCatmullRomBSpline, and agxUtil::HermiteSpline.

Member Data Documentation

◆ m_points

PointVector agxUtil::Spline::m_points

protected

Definition at line 154 of file Spline.h.

Referenced by getTension().

◆ m_tangents

TangentVector agxUtil::Spline::m_tangents

protected

Definition at line 155 of file Spline.h.

The documentation for this class was generated from the following file:

Spline.h
