#include <ConstraintAngle.h>

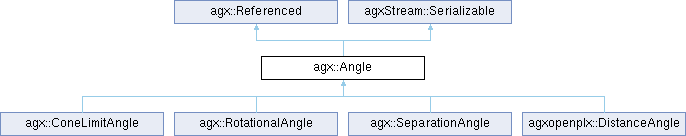

Inheritance diagram for agx::Angle:

Public Types
enum	Axis { U , V , N }
	Axis this constraint angle is defined about or along. More...

enum	Type { TRANSLATIONAL , ROTATIONAL }
	Type, i.e., defines `Axis` as 'along' or 'about'. More...

Public Member Functions
	AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE (agx::Angle)

agx::Angle::Axis	getAxis () const

virtual const agx::Vec3 &	getDir (const agx::AttachmentPair &ap, agx::UInt index) const

agx::Angle::Type	getType () const

agx::Real	getValue () const

virtual void	onPostSolve (const agx::AttachmentPair &ap, agx::Real dt)
	Post solvers, velocity dependent variables should be updated.

virtual void	restore (agxStream::InputArchive &in) override
	Restore given stream.

virtual void	restoreLightData (agxStream::StorageStream &str) override
	Restore structural independent data from stream.

virtual void	store (agxStream::OutputArchive &out) const override
	Store given stream.

virtual void	storeLightData (agxStream::StorageStream &str) const override
	Store structural independent data to stream.

virtual void	transform (const agx::AttachmentPair &ap)
	Transform method to update the value of this angle.

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Public Member Functions inherited from agxStream::Serializable
virtual	~Serializable ()
	Destructor for normal C++ use but hidden from SWIG bindings.

virtual const char *	getClassName () const

bool	getEnableSerialization () const

bool	getEnableUuidGeneration ()

agx::UInt32	getIndex () const
	This index is given at creation of this object.

virtual StorageAgent *	getStorageAgent () const =0

agx::Uuid	getUuid () const

bool	isFinished () const

void	setEnableSerialization (bool flag)
	Set to false to disable serialization of this object.

void	setFinished ()
	Tells this class that it is restored correctly and should not be deleted during destruction of an Archive.

void	setUuid (const agx::Uuid &uuid)
	Explicitly set a Uuid on a serializable object.

Protected Member Functions
	Angle (agx::Angle::Axis axis, agx::Angle::Type type, agx::Real initialAngle=agx::Real(0))
	Construct given axis and initial angle.

virtual	~Angle ()
	Reference counted object, protected destructor.

Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Protected Member Functions inherited from agxStream::Serializable
	Serializable ()
	Default constructor.

	Serializable (const Serializable &other)
	Copy constructor.

void	generateUuid ()

Protected Attributes
Axis	m_axis

Type	m_type

agx::Real	m_value

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Additional Inherited Members
Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Static Public Member Functions inherited from agxStream::Serializable
static void	setEnableUuidGeneration (bool flag)
	Specify if there should be UUID:s generated for each new Serializable object. By default it is enabled.

Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Detailed Description

Constraint angle class.

Definition at line 31 of file ConstraintAngle.h.

Member Enumeration Documentation

◆ Axis

enum agx::Angle::Axis

Axis this constraint angle is defined about or along.

Enumerator
U	Constraint x axis.
V	Constraint y axis.
N	Constraint z axis.

Definition at line 37 of file ConstraintAngle.h.

◆ Type

enum agx::Angle::Type

Type, i.e., defines Axis as 'along' or 'about'.

Enumerator
TRANSLATIONAL	`Axis` is along U, V or N.
ROTATIONAL	`Axis` is about U, V or N.

Definition at line 47 of file ConstraintAngle.h.

Constructor & Destructor Documentation

◆ Angle()

agx::Angle::Angle	(	agx::Angle::Axis	axis,
		agx::Angle::Type	type,
		agx::Real	initialAngle = `agx::Real(0)`
	)

protected

Construct given axis and initial angle.

◆ ~Angle()

virtual agx::Angle::~Angle ( )

protectedvirtual

Reference counted object, protected destructor.

Member Function Documentation

◆ AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE()

agx::Angle::AGXSTREAM_DECLARE_ABSTRACT_SERIALIZABLE ( agx::Angle )

◆ getAxis()

agx::Angle::Axis agx::Angle::getAxis ( ) const

Returns: the axis this constraint angle is defined about or along

◆ getDir()

virtual const agx::Vec3 & agx::Angle::getDir	(	const agx::AttachmentPair &	ap,
		agx::UInt	index
	)		const

virtual

Parameters

ap	- attachment pair
index	- which attachment (0,1)

Returns: the world direction of the axis given the attachment pair

Reimplemented in agxopenplx::DistanceAngle, and agx::ConeLimitAngle.

Referenced by agx::ConstraintAngleBasedData::getDir1(), and agx::ConstraintAngleBasedData::getDir2().

◆ getType()

agx::Angle::Type agx::Angle::getType ( ) const

Returns: the type of this constraint angle (i.e., if Axis is 'along' or 'about')

◆ getValue()

Real agx::Angle::getValue ( ) const

inline

Returns: const reference to value (so it may be used by elementary constraints that works on this angle)

Definition at line 345 of file ConstraintAngle.h.

References m_value.

◆ onPostSolve()

virtual void agx::Angle::onPostSolve	(	const agx::AttachmentPair &	ap,
		agx::Real	dt
	)

virtual

Post solvers, velocity dependent variables should be updated.

Parameters

ap	- attachment pair this angle is part of
dt	- time step size

Reimplemented in agx::RotationalAngle.

◆ restore()

virtual void agx::Angle::restore ( agxStream::InputArchive & in )

overridevirtual

Restore given stream.

◆ restoreLightData()

virtual void agx::Angle::restoreLightData ( agxStream::StorageStream & str )

overridevirtual

Restore structural independent data from stream.

Reimplemented in agx::RotationalAngle.

◆ store()

virtual void agx::Angle::store ( agxStream::OutputArchive & out ) const

overridevirtual

Store given stream.

◆ storeLightData()

virtual void agx::Angle::storeLightData ( agxStream::StorageStream & str ) const

overridevirtual

Store structural independent data to stream.

Reimplemented in agx::RotationalAngle.

◆ transform()

virtual void agx::Angle::transform ( const agx::AttachmentPair & ap )

virtual

Transform method to update the value of this angle.

Parameters

ap	- attachment pair this angle is part of

Reimplemented in agx::RotationalAngle, agx::SeparationAngle, agxopenplx::DistanceAngle, and agx::ConeLimitAngle.

Member Data Documentation

◆ m_axis

Axis agx::Angle::m_axis

protected

Definition at line 123 of file ConstraintAngle.h.

◆ m_type

Type agx::Angle::m_type

protected

Definition at line 124 of file ConstraintAngle.h.

◆ m_value

agx::Real agx::Angle::m_value

protected

Definition at line 125 of file ConstraintAngle.h.

Referenced by getValue(), and agxopenplx::DistanceAngle::transform().

The documentation for this class was generated from the following file:

ConstraintAngle.h
