agx::Component Class Reference

A component is an object containing other objects, enabling hierarchical structuring. More...

#include <Component.h>

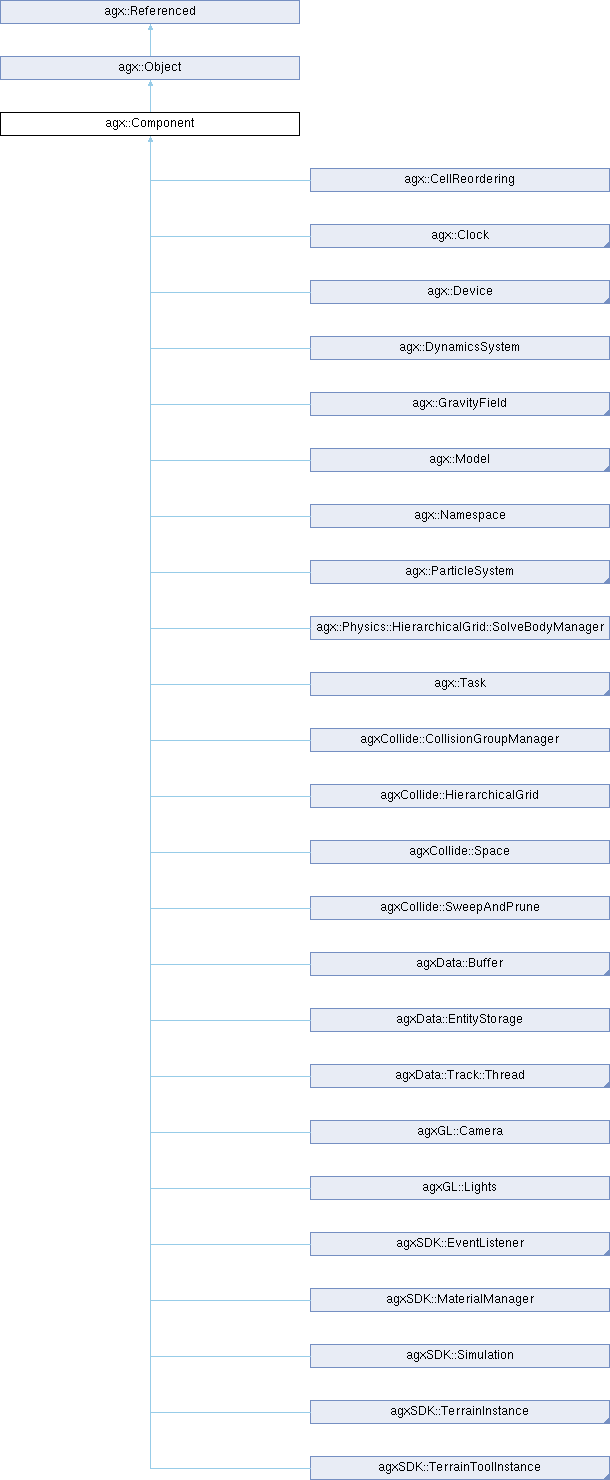

Inheritance diagram for agx::Component:

Public Types
typedef Event2< Component *, Object * >	ObjectEvent
	Event when adding removing child objects.
typedef Callback1< Object * >	TraverseCallback
Public Types inherited from agx::Object
typedef agx::observer_ptr< const Event >	EventConstObserver
typedef agx::ref_ptr< const Event >	EventConstRef
typedef agx::observer_ptr< Event >	EventObserver
typedef agx::Vector< EventObserver >	EventObserverVector
typedef agx::VectorPOD< Event * >	EventPtrVector
typedef agx::ref_ptr< Event >	EventRef
typedef agx::Vector< EventRef >	EventRefVector

Public Member Functions
	Component (const agx::Name &name=agx::Name(), agx::Model *model=agx::Component::ClassModel(), agx::Device *device=nullptr)
virtual void	addObject (agx::Object *object, bool assignContext=true)
	Add an object to the component.
virtual String	autoComplete (const String &partialName, StringVector &matchingNames) const
virtual void	buildNavigationTree (agxJson::Value &eNode) const override
void	configure (Model *model)
virtual void	configure (TiXmlElement *eComponent) override
agx::Device *	getDevice ()
template<typename T >
T *	getDevice ()
const agx::Device *	getDevice () const
template<typename T >
const T *	getDevice () const
size_t	getNumObjects (const agx::Name &name) const
agx::Object *	getObject (const agx::Name &name, agx::Model *model, size_t index=0)
const agx::Object *	getObject (const agx::Name &name, agx::Model *model, size_t index=0) const
agx::Object *	getObject (const agx::Name &name, size_t index=0)
template<typename T >
T *	getObject (const agx::Name &name, size_t index=0)
const agx::Object *	getObject (const agx::Name &name, size_t index=0) const
template<typename T >
const T *	getObject (const agx::Name &name, size_t index=0) const
const agx::ObjectRefVector &	getObjects () const
template<typename T >
void	getObjects (agx::ObjectPtrVector &result, bool recursive=false) const
void	getObjects (agx::ObjectPtrVector &result, const agx::Model *model, bool recursive=false) const
virtual Object *	getResourceImpl (const Path &path, agx::Model *model) override
virtual void	printSubtree () const override
void	printSubtree (std::ostream &stream, int depth=0) const
virtual void	rebind () override
void	removeAllObjects ()
	Remove all components.
virtual void	removeObject (agx::Object *object)
	Remove an object from the component.
void	removeObject (const agx::Name &name, size_t index=0)
	Remove an object with a specified name (and optional index) from the component.
virtual void	snapshot (TiXmlNode *eParent, const String &directory) const override
void	traverse (ComponentVisitor *)
void	traverse (const TraverseCallback &callback)
Public Member Functions inherited from agx::Object
	Object (const Name &name=Name(), Model *model=Object::ClassModel())
void	addListener (EventListener *listener)
virtual void	buildNavigationTree (agxJson::Value &eNode) const
virtual void	configure (TiXmlElement *)
agx::String	fullName () const
agx::String	fullPath () const
agx::String	fullPath (const agx::Object *root) const
template<typename T >
T *	getAutoScopedResource (const agx::Path &path)
template<typename T >
const T *	getAutoScopedResource (const agx::Path &path) const
agx::Object *	getAutoScopedResource (const agx::Path &path, agx::Model *model=nullptr)
const agx::Object *	getAutoScopedResource (const agx::Path &path, agx::Model *model=nullptr) const
agx::Object *	getContext ()
template<typename T >
T *	getContext ()
const agx::Object *	getContext () const
template<typename T >
const T *	getContext () const
agx::UInt32	getId () const
const agx::Name &	getImplementationName () const
agx::Model *	getModel ()
const agx::Model *	getModel () const
const agx::Name &	getName () const
agx::Object *	getNextSibling ()
const agx::Object *	getNextSibling () const
agx::Path	getPath () const
agx::Path	getPath (const agx::Object *root) const
template<typename T >
T *	getResource (const agx::Path &path)
template<typename T >
const T *	getResource (const agx::Path &path) const
agx::Object *	getResource (const agx::Path &path, agx::Model *model=nullptr)
const agx::Object *	getResource (const agx::Path &path, agx::Model *model=nullptr) const
virtual agx::Object *	getResourceImpl (const agx::Path &path, agx::Model *model)
agx::Object *	getRootContext ()
const agx::Object *	getRootContext () const
bool	hasListener (EventListener *listener)
bool	hasParent (const agx::Object *node) const
bool	isUnique () const
virtual void	printSubtree () const
virtual void	rebind ()
void	removeListener (EventListener *listener)
virtual void	save (TiXmlElement *) const
virtual void	setContext (agx::Object *context)
void	setId (UInt32 id)
void	setModel (agx::Model *model)
	Set the object model (handled automatically).
void	setName (const agx::Name &name)
	Set the name of the object.
virtual void	snapshot (TiXmlNode *, const String &) const
Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.
	Referenced (const Referenced &)
template<typename T >
T *	as ()
	Subclass casting.
template<typename T >
const T *	as () const
template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.
template<typename T >
const T *	asSafe () const
int	getReferenceCount () const
template<typename T >
bool	is () const
	Subclass test.
Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.
void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.
void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.
void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Static Public Member Functions
static Component *	_load (TiXmlElement *eComponent, Device *device)
static agx::Model *	ClassModel ()
static Component *	load (const Path &path, const Name &implementation, Device *device, const Path &_namespace=Path())
static Component *	load (const String &path, const Path &_namespace=Path())
static Component *	load (const String &path, Device *device, const Path &_namespace=Path())
static Component *	load (TiXmlElement *eComponent, Device *device)
Static Public Member Functions inherited from agx::Object
static agx::Model *	ClassModel ()
static agx::String	generateName (const agx::String &bindPath)
static const HashSet< Object * > &	getActiveObjects ()
static bool	getEnableRebind ()
	Should rebinding be allowed? Right now a global setting.
static Object *	load (const String &path, Device *device, const String &type, const String &attribute, const String &value)
template<typename T >
static T *	load (const String &path, Device *device, const String &type, const String &attribute, const String &value)
static Object *	load (const String &path, Device *device, const String &type="", size_t instance=0)
template<typename T >
static T *	load (const String &path, Device *device, const String &type="", size_t instance=0)
static void	load (const String &path, Device *device, ObjectPtrVector &loadedObjects)
static Object *	load (TiXmlElement *eObject, Device *device)
template<typename T >
static T *	load (TiXmlElement *eObject, Device *device)
static TiXmlDocument	openDocument (const String &path)
static void	setEnableRebind (bool flag)
	Sets if rebinding of objects should be allowed (Right now a global setting).
Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Public Attributes
ObjectEvent	addObjectEvent
ObjectEvent	removeObjectEvent

Protected Member Functions
virtual	~Component ()
String	expandAutoCompletionMatch (const String &query, const StringVector &matchingNames) const
void	setDevice (Device *device)
Protected Member Functions inherited from agx::Object
virtual	~Object ()
Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.
void	allocateObserverVector () const
void	deleteUsingDeleteHandler () const

Additional Inherited Members
Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()
static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.
Protected Attributes inherited from agx::Referenced
Mutex	m_mutex
ObserverContainer	m_observers
AtomicValue	m_refCount

Detailed Description

A component is an object containing other objects, enabling hierarchical structuring.

Allows multiple child objects with same name.

Definition at line 38 of file Component.h.

Member Typedef Documentation

ObjectEvent

typedef Event2<Component *, Object *> agx::Component::ObjectEvent

Event when adding removing child objects.

NOTE: Events are triggered recursively up the parent structure Example: B is added to root node A, one event is triggered (A.addObjectEvent(A, B)). Then when C is added to B two events are triggered (B.addObjectEvent(B, C), and A.addObjectEvent(B,C))

Definition at line 61 of file Component.h.

TraverseCallback

typedef Callback1<Object*> agx::Component::TraverseCallback

Definition at line 141 of file Component.h.

Constructor & Destructor Documentation

Component()

agx::Component::Component	(	const agx::Name &	name = agx::Name(),
		agx::Model *	model = agx::Component::ClassModel(),
		agx::Device *	device = nullptr
	)

~Component()

virtual agx::Component::~Component ( )

protectedvirtual

Member Function Documentation

_load()

static Component * agx::Component::_load ( TiXmlElement *  eComponent, Device *  device  )

static

addObject()

virtual void agx::Component::addObject ( agx::Object *  object, bool  assignContext = true  )

virtual

Add an object to the component.

Parameters

object	The object to be added
assignContext	True if the child get the component as the context, set to false to allow 'weak' coupled children

autoComplete()

virtual String agx::Component::autoComplete ( const String &  partialName, StringVector &  matchingNames  ) const

virtual

Reimplemented in agx::Namespace.

buildNavigationTree()

virtual void agx::Component::buildNavigationTree ( agxJson::Value &  eNode ) const

overridevirtual

Reimplemented from agx::Object.

Reimplemented in agx::Model, and agxData::Buffer.

ClassModel()

static agx::Model * agx::Component::ClassModel ( )

static

configure() [1/2]

void agx::Component::configure

(

Model *

model

)

configure() [2/2]

virtual void agx::Component::configure ( TiXmlElement *  eComponent )

overridevirtual

Reimplemented from agx::Object.

Reimplemented in agx::Clock, agx::Clock, agx::Kernel, agx::Task, and agx::UnresolvedTask.

expandAutoCompletionMatch()

String agx::Component::expandAutoCompletionMatch ( const String &  query, const StringVector &  matchingNames  ) const

protected

getDevice() [1/4]

Device * agx::Component::getDevice

(

)

Returns

The device which the component stored on.

Definition at line 222 of file Component.h.

Referenced by getDevice().

getDevice() [2/4]

template<typename T >

T * agx::Component::getDevice

Definition at line 226 of file Component.h.

References agxAssert.

getDevice() [3/4]

const Device * agx::Component::getDevice

(

)

const

Definition at line 223 of file Component.h.

References getDevice().

getDevice() [4/4]

template<typename T >

const T * agx::Component::getDevice

Definition at line 233 of file Component.h.

References agxAssert.

getNumObjects()

size_t agx::Component::getNumObjects

(

const agx::Name &

name

)

const

Returns

The number of child objects with a specified name.

Referenced by getObject().

getObject() [1/6]

Object * agx::Component::getObject	(	const agx::Name &	name,
		agx::Model *	model,
		size_t	index = 0
	)

Definition at line 197 of file Component.h.

getObject() [2/6]

const Object * agx::Component::getObject	(	const agx::Name &	name,
		agx::Model *	model,
		size_t	index = 0
	)		const

Definition at line 198 of file Component.h.

getObject() [3/6]

Object * agx::Component::getObject	(	const agx::Name &	name,
		size_t	index = 0
	)

Returns

The child object with specified name (and optional index).

Definition at line 194 of file Component.h.

Referenced by agxData::EntityPtr::operator()().

getObject() [4/6]

template<typename T >

T * agx::Component::getObject	(	const agx::Name &	name,
		size_t	index = 0
	)

Definition at line 202 of file Component.h.

References getNumObjects(), and agx::Object::getPath().

getObject() [5/6]

const Object * agx::Component::getObject	(	const agx::Name &	name,
		size_t	index = 0
	)		const

Definition at line 195 of file Component.h.

getObject() [6/6]

template<typename T >

const T * agx::Component::getObject	(	const agx::Name &	name,
		size_t	index = 0
	)		const

Definition at line 216 of file Component.h.

getObjects() [1/3]

const ObjectRefVector & agx::Component::getObjects

(

)

const

Returns

All child objects.

Definition at line 192 of file Component.h.

Referenced by getObjects().

getObjects() [2/3]

template<typename T >

void agx::Component::getObjects	(	agx::ObjectPtrVector &	result,
		bool	recursive = false
	)		const

Returns

All child objects of a specified type.

Definition at line 241 of file Component.h.

References getObjects().

getObjects() [3/3]

void agx::Component::getObjects	(	agx::ObjectPtrVector &	result,
		const agx::Model *	model,
		bool	recursive = false
	)		const

getResourceImpl()

virtual Object * agx::Component::getResourceImpl ( const Path &  path, agx::Model *  model  )

overridevirtual

Reimplemented from agx::Object.

Reimplemented in agxData::EntityStorage, and agx::Task.

load() [1/4]

static Component * agx::Component::load ( const Path &  path, const Name &  implementation, Device *  device, const Path &  _namespace = Path()  )

static

load() [2/4]

static Component * agx::Component::load ( const String &  path, const Path &  _namespace = Path()  )

static

load() [3/4]

static Component * agx::Component::load ( const String &  path, Device *  device, const Path &  _namespace = Path()  )

static

load() [4/4]

static Component * agx::Component::load ( TiXmlElement *  eComponent, Device *  device  )

static

printSubtree() [1/2]

virtual void agx::Component::printSubtree ( ) const

overridevirtual

Reimplemented from agx::Object.

printSubtree() [2/2]

void agx::Component::printSubtree	(	std::ostream &	stream,
		int	depth = 0
	)		const

rebind()

virtual void agx::Component::rebind ( )

overridevirtual

Reimplemented from agx::Object.

Reimplemented in agx::Clock, agx::Kernel, and agx::Task.

removeAllObjects()

void agx::Component::removeAllObjects

(

)

Remove all components.

removeObject() [1/2]

virtual void agx::Component::removeObject ( agx::Object *  object )

virtual

Remove an object from the component.

removeObject() [2/2]

void agx::Component::removeObject	(	const agx::Name &	name,
		size_t	index = 0
	)

Remove an object with a specified name (and optional index) from the component.

setDevice()

void agx::Component::setDevice ( Device *  device )

protected

snapshot()

virtual void agx::Component::snapshot ( TiXmlNode *  eParent, const String &  directory  ) const

overridevirtual

Reimplemented from agx::Object.

traverse() [1/2]

void agx::Component::traverse

(

ComponentVisitor *

)

traverse() [2/2]

void agx::Component::traverse

(

const TraverseCallback &

callback

)

Member Data Documentation

addObjectEvent

ObjectEvent agx::Component::addObjectEvent

Definition at line 63 of file Component.h.

removeObjectEvent

ObjectEvent agx::Component::removeObjectEvent

Definition at line 64 of file Component.h.

---

The documentation for this class was generated from the following file:

• Component.h
