Utility entrance to the task system, simplifying parallelization of algorithms. More...

#include <IndexLambdaKernel.h>

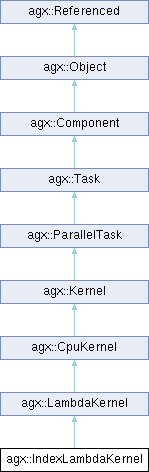

Inheritance diagram for agx::IndexLambdaKernel:

Public Types
using	IndexCallback = std::function< void(agx::UInt)>
	Default callback signature with current index.

Public Types inherited from agx::LambdaKernel
typedef std::function< UInt()>	DataSetSizeCallback

typedef std::function< void(const RangeJob &)>	LambdaCallback

Public Types inherited from agx::CpuKernel
typedef RangeJob::RangeCallback	RangeDispatch

Public Types inherited from agx::Task
typedef Event1< Task * >	ExecutionEvent

typedef Event2< Task , Parameter >	ParameterEvent

enum	ParameterMatch { NO_EVENTS = 0 , EMPTY_BINDING_LIST = (1<<0) , PARAMETER_VALID = (1<<1) , PARAMETER_NOT_REQUIRED = (1<<2) , PARAMETER_BOUND = (1<<3) , PARAMETER_HAS_BOUND_PATH = (1<<4) , FORMATS_MATCH = (1<<5) , NEED_DEVICE_TRANSFORM = (1<<6) , MISSING_BINDING = (1<<7) , BINDING_LACKS_TYPE = (1<<8) , FORMATS_MISSMATCH = (1<<9) , EXTRA_BINDING = (1<<10) , INCONSISTEN_PARAMETERS = (1<<11) , MATCH_MASK = EMPTY_BINDING_LIST \| PARAMETER_VALID \| PARAMETER_NOT_REQUIRED \| PARAMETER_BOUND \| PARAMETER_HAS_BOUND_PATH \| FORMATS_MATCH \| NEED_DEVICE_TRANSFORM , NO_MATCH_MASK = MISSING_BINDING \| BINDING_LACKS_TYPE \| FORMATS_MISSMATCH \| EXTRA_BINDING \| INCONSISTEN_PARAMETERS }
	Used for tracing mismatched parameter bindings. More...

enum	ProfilingMode { PROFILING_NONE , PROFILING_FAST , PROFILING_FULL }

Public Types inherited from agx::Component
typedef Event2< Component , Object >	ObjectEvent
	Event when adding removing child objects.

typedef Callback1< Object * >	TraverseCallback

Public Types inherited from agx::Object
typedef agx::observer_ptr< const Event >	EventConstObserver

typedef agx::ref_ptr< const Event >	EventConstRef

typedef agx::observer_ptr< Event >	EventObserver

typedef agx::Vector< EventObserver >	EventObserverVector

typedef agx::VectorPOD< Event * >	EventPtrVector

typedef agx::ref_ptr< Event >	EventRef

typedef agx::Vector< EventRef >	EventRefVector

Public Member Functions
	IndexLambdaKernel ()
	Default Constructor.

template<typename CallbackT , typename... Args>
void	execute (const agx::Name &name, agx::UInt numElements, CallbackT callback, Args &&... args)
	Execute `callback` given `name`, `numElements` and `args` (additional arguments to `callback`).

void	execute (IndexCallback callback, const agx::Name &name, agx::UInt numElements, agx::UInt jobSize=agx::InvalidIndex)
	Execute `callback` given `name` and `numElements`.

template<typename CallbackT , typename... Args>
void	executeEx (const agx::Name &name, agx::UInt numElements, agx::UInt jobSize, CallbackT callback, Args &&... args)
	Execute `callback` given `name`, `numElements` and `args` (additional arguments to `callback`).

Public Member Functions inherited from agx::LambdaKernel
	LambdaKernel (const agx::Name &name, LambdaCallback lambdaCallback, DataSetSizeCallback sizeCallback)
	Constructor.

Public Member Functions inherited from agx::CpuKernel
	CpuKernel (const agx::Name &name, Job::Callback serialDispatch)

	CpuKernel (const agx::Name &name, RangeDispatch rangeDispatch)

UInt	getNumJobs () const

const RangeDispatch &	getRangeDispatch () const

Public Member Functions inherited from agx::Kernel
	Kernel (const agx::Name &name, agx::Device *device, const agx::Job::Callback &dispatcher)

virtual void	configure (TiXmlElement *eKernel) override

virtual float	getComputeTime ()

agx::UInt	getCostPerElement () const

agx::UInt	getMaxJobSize () const

agx::UInt	getMinJobSize () const

agx::UInt	getNumJobsPerThread () const

agx::UInt	getNumWorkItems () const

virtual void	preDispatch ()
	Explicitly set the splitting parameter.

virtual void	rebind () override

void	setCostPerElement (agx::UInt cost)
	Set the per-element cost estimate.

void	setMaxJobSize (agx::UInt max)
	Set the maximum number of work elements per job.

void	setMinJobSize (agx::UInt min)
	Set the minimum number of work elements per job.

void	setNumJobsPerThread (agx::UInt numJobs)
	Set the number of jobs per thread.

Public Member Functions inherited from agx::ParallelTask
	ParallelTask (const agx::Name &name, agx::Device *device=agx::CpuDevice::instance())

	ParallelTask (const agx::Name &name, const agx::Job::Callback &dispatchCallback, agx::Device *device=agx::CpuDevice::instance())

void	addJob (agx::Job *job)
	Add a job to the task.

Job *	getDispatchJob ()

virtual agx::Job *	getPostJob () override

virtual agx::Job *	getPreJob () override

void	removeAllJobs ()
	Remove all jobs (except the original pre/dispatch/post jobs)

void	setDispatch (const agx::Job::Callback &dispatchCallback)

virtual void	setTargetThread (agx::Thread *thread) override
	Set a specific thread which must execute this task.

Public Member Functions inherited from agx::Task
	Task (const agx::Name &name, agx::Device *device=agx::CpuDevice::instance())
	Constructor.

void	addDependencies (const agx::String &paths)

void	addDependency (agx::Task *parent)
	Add a dependency.

void	addDependency (const agx::Path &path)

void	addParameter (agx::Parameter *parameter)
	Add a parameter.

void	addParameter (agx::Parameter *parameter, size_t index)

void	addResolvePath (const agx::Path &path)

void	addResolvePaths (const agx::String &paths)

void	addTriggerPath (const agx::Path &path)

void	addTriggerPaths (const agx::String &paths)

void	beginCallback ()

virtual void	configure (TiXmlElement *eTask) override

void	configure (TiXmlElement *eTask, bool loadParameters)

void	endCallback (agx::Real32 computeCost, agx::Real32 overheadCost=0)

void	execute ()
	Execute the task.

agx::Real32	getAccumulatedComputeCost () const

agx::Real32	getAccumulatedOverheadTime () const

agx::Real32	getAccumulatedWallTime () const

agx::ArrayParameter *	getArrayParameter (const agx::Name &name)

const agx::ArrayParameter *	getArrayParameter (const agx::Name &name) const

const agx::TaskPtrVector &	getChildren () const

agx::Real32	getComputeCost () const

agx::Thread *	getDispatchThread ()

agx::TaskGroup *	getGroup ()

const agx::TaskGroup *	getGroup () const

agx::UInt	getNumAccumulationSamples () const

agx::Real32	getOverheadTime () const

agx::Parameter *	getParameter (const agx::Name &name)

const agx::Parameter *	getParameter (const agx::Name &name) const

agx::Parameter *	getParameter (size_t index)

const agx::Parameter *	getParameter (size_t index) const

const agx::ParameterPtrVector &	getParameters () const

const agx::TaskPtrVector &	getParents () const

agx::PointerParameter *	getPointerParameter (const agx::Name &name)

const agx::PointerParameter *	getPointerParameter (const agx::Name &name) const

virtual agx::Job *	getPostJob ()=0

virtual agx::Job *	getPreJob ()=0

agx::ScalarParameter *	getScalarParameter (const agx::Name &name)

const agx::ScalarParameter *	getScalarParameter (const agx::Name &name) const

agx::Thread *	getTargetThread ()

agx::Real32	getWallTime () const
	Performance statistics.

bool	hasDependency (agx::Task *parent) const

bool	isEnabled () const

bool	isRunning () const

UInt32	matchParameters (agx::ParameterBindingVector &bindings, bool allowFormatPromotions)

UInt32	matchParameters (const agx::ParameterBindingVector &bindings)

UInt32	matchParameters (const ParameterTable &bindings)

void	print () const

void	print (std::ostream &stream) const

void	printBindings ()

void	printBindings (std::ostream &stream)

virtual void	rebind () override

void	removeDependency (agx::Task *parent)
	Remove a dependency.

void	removeParameter (agx::Parameter *parameter)
	Remove a parameter.

void	removeParameter (size_t index)

void	replace (agx::Task *other)
	Replace the task with another task by rerouting the dependencies.

void	resetAccumulationTimers (bool recursive=true)
	Reset accumulated performance statistics.

void	save (agx::TiXmlElement *parent) const override

virtual void	setContext (agx::Object *context) override

void	setEnable (bool flag)
	Enable/disable a task.

void	setModel (agx::Model *model)

virtual void	setTargetThread (agx::Thread *thread)
	Set a specific thread which must execute this task.

void	traverse (const Callback1< Task * > &callback, bool breadthFirst=true)

virtual void	wait ()
	Block until the task has completed execution.

Public Member Functions inherited from agx::Component
	Component (const agx::Name &name=agx::Name(), agx::Model model=agx::Component::ClassModel(), agx::Device device=nullptr)

virtual void	addObject (agx::Object *object, bool assignContext=true)
	Add an object to the component.

virtual String	autoComplete (const String &partialName, StringVector &matchingNames) const

virtual void	buildNavigationTree (agxJson::Value &eNode) const override

void	configure (Model *model)

virtual void	configure (TiXmlElement *eComponent) override

agx::Device *	getDevice ()

template<typename T >
T *	getDevice ()

const agx::Device *	getDevice () const

template<typename T >
const T *	getDevice () const

size_t	getNumObjects (const agx::Name &name) const

agx::Object *	getObject (const agx::Name &name, agx::Model *model, size_t index=0)

const agx::Object *	getObject (const agx::Name &name, agx::Model *model, size_t index=0) const

agx::Object *	getObject (const agx::Name &name, size_t index=0)

template<typename T >
T *	getObject (const agx::Name &name, size_t index=0)

const agx::Object *	getObject (const agx::Name &name, size_t index=0) const

template<typename T >
const T *	getObject (const agx::Name &name, size_t index=0) const

const agx::ObjectRefVector &	getObjects () const

template<typename T >
void	getObjects (agx::ObjectPtrVector &result, bool recursive=false) const
	Returns All child objects of a specified type in the result container.

void	getObjects (agx::ObjectPtrVector &result, const agx::Model *model, bool recursive=false) const

virtual Object *	getResourceImpl (const Path &path, agx::Model *model) override

virtual void	printSubtree () const override

void	printSubtree (std::ostream &stream, int depth=0) const

virtual void	rebind () override

void	removeAllObjects ()
	Remove all components.

virtual void	removeObject (agx::Object *object)
	Remove an object from the component.

void	removeObject (const agx::Name &name, size_t index=0)
	Remove an object with a specified name (and optional index) from the component.

virtual void	snapshot (TiXmlNode *eParent, const String &directory) const override

void	traverse (ComponentVisitor *)

void	traverse (const TraverseCallback &callback)

Public Member Functions inherited from agx::Object
	Object (const Name &name=Name(), Model *model=Object::ClassModel())

void	addListener (EventListener *listener)

virtual void	buildNavigationTree (agxJson::Value &eNode) const

virtual void	configure (TiXmlElement *)

agx::String	fullName () const

agx::String	fullPath () const

agx::String	fullPath (const agx::Object *root) const

template<typename T >
T *	getAutoScopedResource (const agx::Path &path)

template<typename T >
const T *	getAutoScopedResource (const agx::Path &path) const

agx::Object *	getAutoScopedResource (const agx::Path &path, agx::Model *model=nullptr)

const agx::Object *	getAutoScopedResource (const agx::Path &path, agx::Model *model=nullptr) const

agx::Object *	getContext ()

template<typename T >
T *	getContext ()

const agx::Object *	getContext () const

template<typename T >
const T *	getContext () const

agx::UInt32	getId () const

const agx::Name &	getImplementationName () const

agx::Model *	getModel ()

const agx::Model *	getModel () const

const agx::Name &	getName () const

agx::Object *	getNextSibling ()

const agx::Object *	getNextSibling () const

agx::Path	getPath () const

agx::Path	getPath (const agx::Object *root) const

template<typename T >
T *	getResource (const agx::Path &path)

template<typename T >
const T *	getResource (const agx::Path &path) const

agx::Object *	getResource (const agx::Path &path, agx::Model *model=nullptr)

const agx::Object *	getResource (const agx::Path &path, agx::Model *model=nullptr) const

virtual agx::Object *	getResourceImpl (const agx::Path &path, agx::Model *model)

agx::Object *	getRootContext ()

const agx::Object *	getRootContext () const

bool	hasListener (EventListener *listener)

bool	hasParent (const agx::Object *node) const

bool	isUnique () const

virtual void	printSubtree () const

virtual void	rebind ()

void	removeListener (EventListener *listener)

virtual void	save (TiXmlElement *) const

virtual void	setContext (agx::Object *context)

void	setId (UInt32 id)

void	setModel (agx::Model *model)
	Set the object model (handled automatically).

void	setName (const agx::Name &name)
	Set the name of the object.

virtual void	snapshot (TiXmlNode *, const String &) const

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Static Public Member Functions
template<typename CallbackT , typename... Args>
static IndexCallback	generate (CallbackT callback, Args &&... args)
	Generates IndexCallback given function and arguments.

Static Public Member Functions inherited from agx::CpuKernel
static CpuKernel *	load (TiXmlElement eKernel, Device device)

Static Public Member Functions inherited from agx::Kernel
static agx::Model *	ClassModel ()

static Kernel *	load (TiXmlElement eKernel, Device device)

Static Public Member Functions inherited from agx::Task
static agx::Model *	ClassModel ()

static ProfilingMode	getProfilingMode ()

static Task *	load (const char path, Device device=CpuDevice::instance())

static Task *	load (const Path &path, const Name &implementation, agx::ParameterBindingVector &parameterList, bool allowFormatPromotions, Device *device=CpuDevice::instance())

static Task *	load (const Path &path, const Name &implementation, const agx::ParameterBindingVector &parameterList, Device *device=CpuDevice::instance())

static Task *	load (const Path &path, const Name &implementation, Device *device=CpuDevice::instance())

static Task *	load (const Path &path, Device *device=CpuDevice::instance())

static Task *	load (const String &path, Device *device=CpuDevice::instance())

static Task *	load (TiXmlElement eTask, Device device)

static void	printParameterMatch (UInt32 parameterMatch)

static void	setProfilingMode (ProfilingMode mode)

Static Public Member Functions inherited from agx::Component
static Component *	_load (TiXmlElement eComponent, Device device)

static agx::Model *	ClassModel ()

static Component *	load (const Path &path, const Name &implementation, Device *device, const Path &_namespace=Path())

static Component *	load (const String &path, const Path &_namespace=Path())

static Component *	load (const String &path, Device *device, const Path &_namespace=Path())

static Component *	load (TiXmlElement eComponent, Device device)

Static Public Member Functions inherited from agx::Object
static agx::Model *	ClassModel ()

static agx::String	generateName (const agx::String &bindPath)

static const HashSet< Object * > &	getActiveObjects ()

static bool	getEnableRebind ()
	Should rebinding be allowed? Right now a global setting.

static Object *	load (const String &path, Device *device, const String &type, const String &attribute, const String &value)

template<typename T >
static T *	load (const String &path, Device *device, const String &type, const String &attribute, const String &value)

static Object *	load (const String &path, Device *device, const String &type="", size_t instance=0)

template<typename T >
static T *	load (const String &path, Device *device, const String &type="", size_t instance=0)

static void	load (const String &path, Device *device, ObjectPtrVector &loadedObjects)

static Object *	load (TiXmlElement eObject, Device device)

template<typename T >
static T *	load (TiXmlElement eObject, Device device)

static TiXmlDocument	openDocument (const String &path)

static void	setEnableRebind (bool flag)
	Sets if rebinding of objects should be allowed (Right now a global setting).

Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Protected Member Functions
virtual	~IndexLambdaKernel ()
	Reference counted object - protected destructor.

Protected Member Functions inherited from agx::CpuKernel
virtual	~CpuKernel ()

virtual RangeJob *	allocateRangeJobs (size_t numJobs)=0

void	generateJobs ()

Protected Member Functions inherited from agx::Kernel
virtual	~Kernel ()

void	locateNumWorkItemsValue ()

virtual void	parameterAddedCallback (Parameter *parameter) override

virtual void	parameterRemovedCallback (Parameter *parameter) override

Protected Member Functions inherited from agx::ParallelTask
virtual	~ParallelTask ()

void	endCallback ()

Protected Member Functions inherited from agx::Task
virtual	~Task ()

void	connectToChild (Task *descendant)

void	connectToParent (Task *ancestor)

void	disconnectFromChild (Task *descendant)

void	disconnectFromParent (Task *ancestor)

void	dispatchBlocking (Thread *thread)

void	enableCallback (agxData::Value *enable)

virtual Object *	getResourceImpl (const Path &path, agx::Model *model) override

void	init ()

virtual void	parameterAddedCallback (Parameter *)

virtual void	parameterRemovedCallback (Parameter *)

void	prepareGlobalResultSorting (size_t numJobs)

void	registerBufferReadersAndWriters ()

void	setGroup (TaskGroup *group)

virtual void	subtaskAddedCallback (Task *)

void	unregisterBufferReadersAndWriters ()

void	verifyParameters ()

Protected Member Functions inherited from agx::Component
virtual	~Component ()

String	expandAutoCompletionMatch (const String &query, const StringVector &matchingNames) const

void	setDevice (Device *device)

Protected Member Functions inherited from agx::Object
virtual	~Object ()

Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Additional Inherited Members
Public Attributes inherited from agx::Task
ParameterEvent	addParameterEvent
	Triggered when a parameter is added.

ExecutionEvent	completionEvent
	Triggered after the task has completed.

agxData::Val< Bool >	enableParameter
	Enable/disable the task, normally use setEnable/isEnabled instead.

ParameterEvent	removeParameterEvent
	Triggered when a parameter is removed.

ExecutionEvent	startEvent
	Triggered before the task begins.

Public Attributes inherited from agx::Component
ObjectEvent	addObjectEvent

ObjectEvent	removeObjectEvent

Static Protected Member Functions inherited from agx::Task
static void	addConnection (Task parent, Task child)

static bool	hasUnhandledException ()

static void	removeConnection (Task parent, Task child)

static void	signalUnhandledException ()

Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Protected Attributes inherited from agx::LambdaKernel
Vector< RangeJob >	m_rangeJobs

Protected Attributes inherited from agx::CpuKernel
UInt	m_numJobs

RangeDispatch	m_rangeDispatch

Protected Attributes inherited from agx::Kernel
agxData::ValueRefT< UInt >	m_numWorkItems

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Detailed Description

Utility entrance to the task system, simplifying parallelization of algorithms.

Example: void collectConstraintForces( agxSDK::Simulation* simulation ) { struct ConstraintForceData { agx::Bool valid; agx::Vec3 force[2]; agx::Vec3 torque[2]; }; using ConstraintForceDataVector = agx::VectorPOD<ConstraintForceData>;

const agx::ConstraintRefSetVector& constraints = simulation->getConstraints(); ConstraintForceData dataVector; dataVector.resize( constraints.size() );

auto kernel = simulation->getDynamicsSystem()->getIndexLambdaKernel(); kernel->execute( "Fetch constraint forces", constraints.size(), // Number of elements. []( agx::UInt index, const agx::ConstraintRefSetVector& constraints, ConstraintForceData& dataVector ) { auto& data = dataVector[ index ]; const auto constraint = constraints[ index ]; data.valid = constraint->getLastForce( 0, data.force[ 0 ], data.torque[ 0 ] ); data.valid = data.valid && constraint->getLastForce( 1, data.force[ 1 ], data.torque[ 1 ] ); }, std::cref( constraints ), // second function argument (first is always the current index) std::ref( dataVector ) ); // third function argument }

Definition at line 58 of file IndexLambdaKernel.h.

Member Typedef Documentation

◆ IndexCallback

using agx::IndexLambdaKernel::IndexCallback = std::function<void( agx::UInt )>

Default callback signature with current index.

Additional arguments are binded after the index.

Definition at line 65 of file IndexLambdaKernel.h.

Constructor & Destructor Documentation

◆ IndexLambdaKernel()

agx::IndexLambdaKernel::IndexLambdaKernel ( )

Default Constructor.

◆ ~IndexLambdaKernel()

virtual agx::IndexLambdaKernel::~IndexLambdaKernel ( )

protectedvirtual

Reference counted object - protected destructor.

Member Function Documentation

◆ execute() [1/2]

template<typename CallbackT , typename... Args>

void agx::IndexLambdaKernel::execute	(	const agx::Name &	name,
		agx::UInt	numElements,
		CallbackT	callback,
		Args &&...	args
	)

Execute callback given name, numElements and args (additional arguments to callback).

Parameters

name	- name of the kernel
numElements	- total number of elements
callback	- callback to execute
args	- additional arguments to `callback`

Definition at line 176 of file IndexLambdaKernel.h.

References executeEx(), and agx::InvalidIndex.

◆ execute() [2/2]

void agx::IndexLambdaKernel::execute	(	IndexCallback	callback,
		const agx::Name &	name,
		agx::UInt	numElements,
		agx::UInt	jobSize = `agx::InvalidIndex`
	)

Execute callback given name and numElements.

Parameters

callback	- index callback to execute
name	- name of the kernel
numElements	- total number of elements
jobSize	- number of items per job (default settings if jobSize == agx::InvalidIndex)

◆ executeEx()

template<typename CallbackT , typename... Args>

void agx::IndexLambdaKernel::executeEx	(	const agx::Name &	name,
		agx::UInt	numElements,
		agx::UInt	jobSize,
		CallbackT	callback,
		Args &&...	args
	)

Execute callback given name, numElements and args (additional arguments to callback).

Parameters

name	- name of the kernel
numElements	- total number of elements
callback	- callback to execute
args	- additional arguments to `callback`
jobSize	- number of items per job

Definition at line 182 of file IndexLambdaKernel.h.

References agx::Task::execute(), and generate().

Referenced by execute().

◆ generate()

template<typename CallbackT , typename... Args>

IndexLambdaKernel::IndexCallback agx::IndexLambdaKernel::generate	(	CallbackT	callback,
		Args &&...	args
	)

static

Generates IndexCallback given function and arguments.

Note that the callback must have UInt index as first arugment and args are added after.

Parameters

callback	- callback function
args	- additional arguments

Returns: callback function object including arguments

Definition at line 169 of file IndexLambdaKernel.h.

Referenced by executeEx().

The documentation for this class was generated from the following file:

IndexLambdaKernel.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ IndexCallback

Constructor & Destructor Documentation

◆ IndexLambdaKernel()

◆ ~IndexLambdaKernel()

Member Function Documentation

◆ execute() [1/2]

◆ execute() [2/2]

◆ executeEx()

◆ generate()
