agx::Interaction Class Reference

The base class for interactions. More...

#include <Interaction.h>

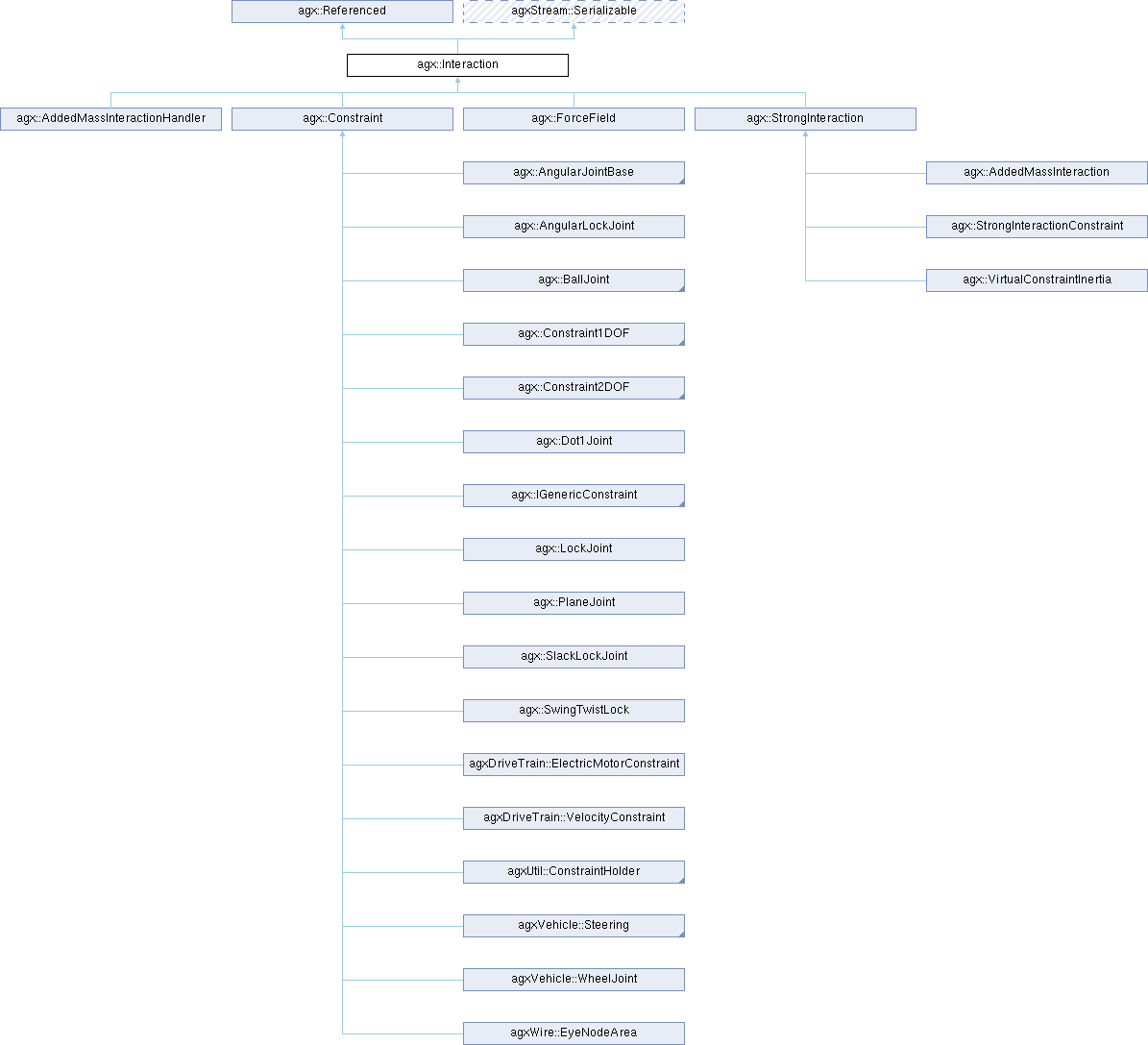

Inheritance diagram for agx::Interaction:

Public Member Functions
	Interaction ()
	Default constructor.
	AGXSTREAM_DECLARE_SERIALIZABLE_BASE (agx::Interaction)
const agx::Name &	getName () const
agx::PropertyContainer *	getPropertyContainer ()
const agx::PropertyContainer *	getPropertyContainer () const
agxSDK::SimulationProxy *	getSimulationProxy () const
agx::Bool	hasPropertyContainer () const
virtual void	postSystemCallback (agx::DynamicsSystem *)
	Called after all post step events, after solve.
virtual void	preSystemCallback (agx::DynamicsSystem *)
	Called after all pre step events, before solve.
void	setName (const agx::Name &name)
	Name this interaction.
void	setPropertyContainer (agx::PropertyContainer *propertyContainer)
	Assign a new property container.
virtual void	updateForce (agx::DynamicsSystem *dynamicsSystem)
	This virtual method is implemented so that it computes the interaction forces on all the physical bodies implicated.
Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.
	Referenced (const Referenced &)
template<typename T >
T *	as ()
	Subclass casting.
template<typename T >
const T *	as () const
template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.
template<typename T >
const T *	asSafe () const
int	getReferenceCount () const
template<typename T >
bool	is () const
	Subclass test.
Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.
void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.
void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.
void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.
Public Member Functions inherited from agxStream::Serializable
virtual	~Serializable ()
	Destructor for normal C++ use but hidden from SWIG bindings.
virtual const char *	getClassName () const
bool	getEnableSerialization () const
bool	getEnableUuidGeneration ()
agx::UInt32	getIndex () const
	This index is given at creation of this object.
virtual StorageAgent *	getStorageAgent () const =0
agx::Uuid	getUuid () const
bool	isFinished () const
void	setEnableSerialization (bool flag)
	Set to false to disable serialization of this object.
void	setFinished ()
	Tells this class that it is restored correctly and should not be deleted during destruction of an Archive.
void	setUuid (const agx::Uuid &uuid)
	Explicitly set a Uuid on a serializable object.

Static Public Member Functions
static agxStream::Serializable *	create (agxStream::InputArchive &)
Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)
Static Public Member Functions inherited from agxStream::Serializable
static void	setEnableUuidGeneration (bool flag)
	Specify if there should be UUID:s generated for each new Serializable object. By default it is enabled.

Protected Member Functions
virtual	~Interaction ()
	Reference counted object, protected destructor.
virtual void	addNotification ()
	Called when added to a simulation.
virtual void	removeNotification ()
	Called when removed from a simulation.
virtual void	setSimulation (agxSDK::Simulation *simulation)
	Assign simulation.
Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.
void	allocateObserverVector () const
void	deleteUsingDeleteHandler () const
Protected Member Functions inherited from agxStream::Serializable
	Serializable ()
	Default constructor.
	Serializable (const Serializable &other)
	Copy constructor.
void	generateUuid ()

Additional Inherited Members
Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()
static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.
Protected Attributes inherited from agx::Referenced
Mutex	m_mutex
ObserverContainer	m_observers
AtomicValue	m_refCount

Detailed Description

The base class for interactions.

Definition at line 32 of file Interaction.h.

Constructor & Destructor Documentation

Interaction()

agx::Interaction::Interaction

(

)

Default constructor.

~Interaction()

virtual agx::Interaction::~Interaction ( )

inlineprotectedvirtual

Reference counted object, protected destructor.

Definition at line 106 of file Interaction.h.

Member Function Documentation

addNotification()

virtual void agx::Interaction::addNotification ( )

protectedvirtual

Called when added to a simulation.

Reimplemented in agx::IGenericConstraint, agx::Constraint, agx::StrongInteraction, and agxDriveTrain::VelocityConstraint.

AGXSTREAM_DECLARE_SERIALIZABLE_BASE()

agx::Interaction::AGXSTREAM_DECLARE_SERIALIZABLE_BASE

(

agx::Interaction

)

create()

static agxStream::Serializable * agx::Interaction::create ( agxStream::InputArchive &  )

inlinestatic

Definition at line 100 of file Interaction.h.

getName()

const agx::Name & agx::Interaction::getName

(

)

const

Returns

the name of this interaction

getPropertyContainer() [1/2]

agx::PropertyContainer * agx::Interaction::getPropertyContainer

(

)

Returns

a property container (if it doesn't exist, a new will be created)

getPropertyContainer() [2/2]

const agx::PropertyContainer * agx::Interaction::getPropertyContainer

(

)

const

Returns

a property container (if it doesn't exist, a new will be created)

getSimulationProxy()

agxSDK::SimulationProxy * agx::Interaction::getSimulationProxy

(

)

const

Returns

the simulation proxy for this strong interaction

hasPropertyContainer()

agx::Bool agx::Interaction::hasPropertyContainer

(

)

const

Returns

true if a property container has been created, otherwise false

postSystemCallback()

virtual void agx::Interaction::postSystemCallback ( agx::DynamicsSystem *  )

inlinevirtual

Called after all post step events, after solve.

Reimplemented in agx::AddedMassInteractionHandler, agx::Constraint, and agx::StrongInteraction.

Definition at line 97 of file Interaction.h.

preSystemCallback()

virtual void agx::Interaction::preSystemCallback ( agx::DynamicsSystem *  )

inlinevirtual

Called after all pre step events, before solve.

Reimplemented in agx::AddedMassInteractionHandler, agx::Constraint, and agx::StrongInteraction.

Definition at line 93 of file Interaction.h.

removeNotification()

virtual void agx::Interaction::removeNotification ( )

protectedvirtual

Called when removed from a simulation.

Reimplemented in agx::IGenericConstraint, agx::Constraint, and agx::StrongInteraction.

setName()

void agx::Interaction::setName

(

const agx::Name &

name

)

Name this interaction.

Parameters

name	- new name of this interaction

setPropertyContainer()

void agx::Interaction::setPropertyContainer

(

agx::PropertyContainer *

propertyContainer

)

Assign a new property container.

Parameters

propertyContainer

- new property container

setSimulation()

virtual void agx::Interaction::setSimulation ( agxSDK::Simulation *  simulation )

protectedvirtual

Assign simulation.

Be careful.

Reimplemented in agx::Constraint.

updateForce()

void agx::Interaction::updateForce ( agx::DynamicsSystem *  dynamicsSystem )

inlinevirtual

This virtual method is implemented so that it computes the interaction forces on all the physical bodies implicated.

This method defaults to doing nothing. Constraints and other strong interactions might not implement anything for this because the forces they generate are computed by a solver. A weak interaction must implement this method to have any effect.

Parameters

dynamicsSystem

- the system to which the forces should be added

Definition at line 130 of file Interaction.h.

---

The documentation for this class was generated from the following file:

• Interaction.h
