An abstract job/workblock representation, which allows work threads to execute arbitrary tasks. More...

#include <Job.h>

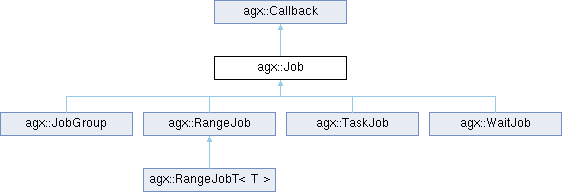

Inheritance diagram for agx::Job:

Public Member Functions
	Job ()

	Job (const Callback &callback, agx::UInt32 costEstimate=100)

	Job (const Job &other)

virtual	~Job ()

void	addDependency (Job *parent)
	Add a dependency to a job.

void	clearChildDependencies ()
	Remove all child dependencies.

void	decrementNumDependencies (agx::UInt32 size=1)
	Explicitly decrement the number of parent dependencies.

Thread *	getAssignedThread ()

const Callback &	getCallback () const
	Return the current callback.

const JobPtrVector &	getChildDependencies () const

agx::UInt32	getCostEstimate () const

Real	getExecutionTime () const

const char *	getName () const

agx::UInt32	getNumDependencies () const

const JobPtrVector &	getParentDependencies () const

SyncTag *	getSyncTag ()

agx::UInt32	getTag () const

Thread *	getTargetThread ()

Task *	getTask ()

const Timer &	getTimer () const

bool	hasDependency (Job *parent)

virtual void	implementation ()
	Job implementation, override in subclass.

void	incrementNumDependencies (agx::UInt32 size=1)
	Explicitly increment the number of parent dependencies.

agx::Index &	index ()

const agx::Index &	index () const

void	init (const Callback &callback=Callback(), agx::UInt32 costEstimate=100)
	Initialize the job.

Job &	operator= (const Job &other)

void	removeAllDependencies ()
	Remove all parent dependencies.

void	removeDependency (Job *parent)
	Remove a dependency from a job.

bool	resolve ()
	Increase the dependency counter for the job, and queue job for execution if all dependencies are resolved.

void	setCallback (const Callback &callback)
	Set the callback which is called when execute() runs.

void	setCostEstimate (agx::UInt32 cost)
	Specify the cost estimate for this job.

void	setName (const char *name)
	Set the name of the job, for debugging.

void	setNumDependencies (agx::UInt32 numDependencies)
	Explicitly set the number of parent dependencies.

void	setSyncTag (SyncTag *tag)
	Set the synchronization tag which must enter completion status before the job is executed.

void	setTag (agx::UInt32 tag)
	Set the job tag, can be used to keep track of different job classes etc.

void	setTargetThread (Thread *thread)
	Set the target thread which the job will be executed on.

void	setTask (Task *task)
	Set the task which the job belongs to.

void	spawn ()
	Schedule job for execution in thread pool.

Public Member Functions inherited from agx::Callback
	Callback ()

	Callback (const CallbackFunction &func, bool repeatEnable=true)

template<class ClassT >
	Callback (void(ClassT::fun)(), ClassT obj, bool repeatEnable=true)

const CallbackFunction &	implementation () const
	Return the std representation.

bool	isRepeating () const

bool	isValid () const

	operator bool () const

	operator const CallbackFunction & () const

void	operator() () const
	Execute the callback.

void	run () const

Protected Attributes
Thread *	m_assignedThread

Callback	m_callback

JobPtrVector	m_children

agx::UInt32	m_cost

std::atomic< Int32 >	m_dependencyCounter

agx::Index	m_index

const char *	m_name

agx::UInt32	m_numDependencies

JobPtrVector	m_parents

SyncTagRef	m_syncTag

agx::UInt32	m_tag

Thread *	m_targetThread

Task *	m_task

Timer	m_timer

Additional Inherited Members
Public Types inherited from agx::Callback
typedef std::function< void()>	CallbackFunction

Detailed Description

An abstract job/workblock representation, which allows work threads to execute arbitrary tasks.

The jobs have specified dependecies which enables them to be organized in an execution graph.

Definition at line 60 of file Job.h.

Constructor & Destructor Documentation

◆ Job() [1/3]

agx::Job::Job ( )

Definition at line 418 of file Job.h.

◆ Job() [2/3]

agx::Job::Job ( const Job & other )

Definition at line 432 of file Job.h.

◆ Job() [3/3]

agx::Job::Job	(	const Callback &	callback,
		agx::UInt32	costEstimate = `100`
	)

Definition at line 453 of file Job.h.

◆ ~Job()

virtual agx::Job::~Job ( )

virtual

References agx::init().

Member Function Documentation

◆ addDependency()

void agx::Job::addDependency ( Job * parent )

Add a dependency to a job.

Parameters

parent The parent dependency

Definition at line 503 of file Job.h.

References agxAssert, m_children, m_numDependencies, m_parents, and agx::VectorPOD< T, Allocator >::push_back().

◆ clearChildDependencies()

void agx::Job::clearChildDependencies ( )

Remove all child dependencies.

NOTE: Parent dependencies in children are not updated

Definition at line 536 of file Job.h.

References agx::VectorPOD< T, Allocator >::clear(), and m_children.

◆ decrementNumDependencies()

void agx::Job::decrementNumDependencies ( agx::UInt32 size = 1 )

Explicitly decrement the number of parent dependencies.

Definition at line 548 of file Job.h.

References m_numDependencies.

◆ getAssignedThread()

Thread * agx::Job::getAssignedThread ( )

Returns: The thread which executed the job.

Definition at line 497 of file Job.h.

References m_assignedThread.

◆ getCallback()

const Job::Callback & agx::Job::getCallback ( ) const

Return the current callback.

Definition at line 553 of file Job.h.

References m_callback.

◆ getChildDependencies()

const JobPtrVector & agx::Job::getChildDependencies ( ) const

Returns: The list of child dependencies.

Definition at line 550 of file Job.h.

References m_children.

◆ getCostEstimate()

agx::UInt32 agx::Job::getCostEstimate ( ) const

Returns: The estimated job size.

Definition at line 575 of file Job.h.

References m_cost.

Referenced by agx::JobGroup::addJob().

◆ getExecutionTime()

Real agx::Job::getExecutionTime ( ) const

Returns: The execution time, in ms.

Definition at line 573 of file Job.h.

References agx::Timer::getTime(), and m_timer.

◆ getName()

const char * agx::Job::getName ( ) const

Returns: The name of the job.

Definition at line 488 of file Job.h.

References m_name.

◆ getNumDependencies()

agx::UInt32 agx::Job::getNumDependencies ( ) const

Returns: The number of parent dependencies.

Definition at line 546 of file Job.h.

References m_numDependencies.

◆ getParentDependencies()

const JobPtrVector & agx::Job::getParentDependencies ( ) const

Returns: The parent jobs. NOTE Only available in debug build, in release the vector is always empty.

Definition at line 534 of file Job.h.

References m_parents.

◆ getSyncTag()

SyncTag * agx::Job::getSyncTag ( )

Returns: The synchronization tag for this job.

Definition at line 495 of file Job.h.

References m_syncTag.

◆ getTag()

agx::UInt32 agx::Job::getTag ( ) const

Returns: The job tag.

Definition at line 499 of file Job.h.

References m_tag.

◆ getTargetThread()

Thread * agx::Job::getTargetThread ( )

Returns: The thread this job is bound to. nullptr if no explicit thread binding.

Definition at line 491 of file Job.h.

References m_targetThread.

◆ getTask()

Task * agx::Job::getTask ( )

Returns: The task which this job is part of.

Definition at line 493 of file Job.h.

References m_task.

◆ getTimer()

const Timer & agx::Job::getTimer ( ) const

Returns: The execution timer.

Definition at line 574 of file Job.h.

References m_timer.

◆ hasDependency()

bool agx::Job::hasDependency ( Job * parent )

Parameters

parent - The parent job to check

Returns: True if the specified job is a direct parent dependency, not recursive.

Definition at line 528 of file Job.h.

References agxAssert, agx::VectorPOD< T, Allocator >::contains(), and m_children.

◆ implementation()

virtual void agx::Job::implementation ( )

virtual

Job implementation, override in subclass.

Default implementation use a generic callback.

Reimplemented in agx::RangeJob, agx::RangeJobT< T >, and agx::JobGroup.

◆ incrementNumDependencies()

void agx::Job::incrementNumDependencies ( agx::UInt32 size = 1 )

Explicitly increment the number of parent dependencies.

Definition at line 547 of file Job.h.

References m_numDependencies.

◆ index() [1/2]

agx::Index & agx::Job::index ( )

Returns: The index of the job (for parallel kernels)

Definition at line 578 of file Job.h.

References m_index.

◆ index() [2/2]

const agx::Index & agx::Job::index ( ) const

Definition at line 579 of file Job.h.

References m_index.

◆ init()

void agx::Job::init	(	const Callback &	callback = `Callback()`,
		agx::UInt32	costEstimate = `100`
	)

Initialize the job.

Definition at line 556 of file Job.h.

References agx::VectorPOD< T, Allocator >::clear(), m_assignedThread, m_callback, m_children, m_cost, m_index, m_parents, m_tag, m_targetThread, and setNumDependencies().

Referenced by agx::JobGroup::init(), agx::RangeJob::init(), and agx::TaskJob::init().

◆ operator=()

Job & agx::Job::operator= ( const Job & other )

Definition at line 468 of file Job.h.

References m_assignedThread, m_callback, m_children, m_cost, m_dependencyCounter, m_index, m_name, m_numDependencies, m_parents, m_syncTag, m_tag, m_targetThread, m_task, and m_timer.

◆ removeAllDependencies()

void agx::Job::removeAllDependencies ( )

Remove all parent dependencies.

NOTE: Child dependencies in parents are not updated

Definition at line 538 of file Job.h.

References agx::VectorPOD< T, Allocator >::clear(), m_numDependencies, and m_parents.

◆ removeDependency()

void agx::Job::removeDependency ( Job * parent )

Remove a dependency from a job.

Parameters

parent The parent dependency

Definition at line 515 of file Job.h.

References agxAssert, agxVerify, agx::VectorPOD< T, Allocator >::findAndErase(), m_children, m_numDependencies, and m_parents.

◆ resolve()

bool agx::Job::resolve ( )

Increase the dependency counter for the job, and queue job for execution if all dependencies are resolved.

Automatically called as parent dependencies are completed.

Returns: true if all dependencies are resolved

◆ setCallback()

void agx::Job::setCallback ( const Callback & callback )

Set the callback which is called when execute() runs.

Definition at line 552 of file Job.h.

References m_callback.

◆ setCostEstimate()

void agx::Job::setCostEstimate ( agx::UInt32 cost )

Specify the cost estimate for this job.

Definition at line 576 of file Job.h.

References m_cost.

◆ setName()

void agx::Job::setName ( const char * name )

Set the name of the job, for debugging.

Definition at line 489 of file Job.h.

References m_name.

◆ setNumDependencies()

void agx::Job::setNumDependencies ( agx::UInt32 numDependencies )

Explicitly set the number of parent dependencies.

NOTE: Only use if you know what you are doing....

Definition at line 537 of file Job.h.

References m_numDependencies.

Referenced by init().

◆ setSyncTag()

void agx::Job::setSyncTag ( SyncTag * tag )

Set the synchronization tag which must enter completion status before the job is executed.

Definition at line 496 of file Job.h.

References m_syncTag.

◆ setTag()

void agx::Job::setTag ( agx::UInt32 tag )

Set the job tag, can be used to keep track of different job classes etc.

Definition at line 500 of file Job.h.

References m_tag.

◆ setTargetThread()

void agx::Job::setTargetThread ( Thread * thread )

Set the target thread which the job will be executed on.

Definition at line 492 of file Job.h.

References m_targetThread.

◆ setTask()

void agx::Job::setTask ( Task * task )

Set the task which the job belongs to.

Normally handled automatically.

Definition at line 494 of file Job.h.

References m_task.

◆ spawn()

void agx::Job::spawn ( )

Schedule job for execution in thread pool.

Member Data Documentation

◆ m_assignedThread

Thread* agx::Job::m_assignedThread

protected

Definition at line 266 of file Job.h.

Referenced by getAssignedThread(), init(), and operator=().

◆ m_callback

Callback agx::Job::m_callback

protected

Definition at line 260 of file Job.h.

Referenced by getCallback(), init(), operator=(), and setCallback().

◆ m_children

JobPtrVector agx::Job::m_children

protected

Definition at line 258 of file Job.h.

Referenced by addDependency(), clearChildDependencies(), getChildDependencies(), hasDependency(), init(), operator=(), and removeDependency().

◆ m_cost

agx::UInt32 agx::Job::m_cost

protected

Definition at line 268 of file Job.h.

Referenced by agx::JobGroup::addJob(), getCostEstimate(), agx::JobGroup::init(), init(), operator=(), and setCostEstimate().

◆ m_dependencyCounter

std::atomic<Int32> agx::Job::m_dependencyCounter

protected

Definition at line 263 of file Job.h.

Referenced by operator=().

◆ m_index

agx::Index agx::Job::m_index

protected

Definition at line 270 of file Job.h.

Referenced by index(), init(), and operator=().

◆ m_name

const char* agx::Job::m_name

protected

Definition at line 257 of file Job.h.

Referenced by getName(), operator=(), and setName().

◆ m_numDependencies

agx::UInt32 agx::Job::m_numDependencies

protected

Definition at line 262 of file Job.h.

Referenced by addDependency(), decrementNumDependencies(), getNumDependencies(), incrementNumDependencies(), operator=(), removeAllDependencies(), removeDependency(), and setNumDependencies().

◆ m_parents

JobPtrVector agx::Job::m_parents

protected

Definition at line 259 of file Job.h.

Referenced by addDependency(), getParentDependencies(), init(), operator=(), removeAllDependencies(), and removeDependency().

◆ m_syncTag

SyncTagRef agx::Job::m_syncTag

protected

Definition at line 267 of file Job.h.

Referenced by getSyncTag(), operator=(), and setSyncTag().

◆ m_tag

agx::UInt32 agx::Job::m_tag

protected

Definition at line 269 of file Job.h.

Referenced by getTag(), init(), operator=(), and setTag().

◆ m_targetThread

Thread* agx::Job::m_targetThread

protected

Definition at line 265 of file Job.h.

Referenced by getTargetThread(), init(), operator=(), and setTargetThread().

◆ m_task

Task* agx::Job::m_task

protected

Definition at line 264 of file Job.h.

Referenced by getTask(), operator=(), and setTask().

◆ m_timer

Timer agx::Job::m_timer

protected

Definition at line 261 of file Job.h.

Referenced by getExecutionTime(), getTimer(), and operator=().

The documentation for this class was generated from the following file:

Job.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Job() [1/3]

◆ Job() [2/3]

◆ Job() [3/3]

◆ ~Job()

Member Function Documentation

◆ addDependency()

◆ clearChildDependencies()

◆ decrementNumDependencies()

◆ getAssignedThread()

◆ getCallback()

◆ getChildDependencies()

◆ getCostEstimate()

◆ getExecutionTime()

◆ getName()

◆ getNumDependencies()

◆ getParentDependencies()

◆ getSyncTag()

◆ getTag()

◆ getTargetThread()

◆ getTask()

◆ getTimer()

◆ hasDependency()

◆ implementation()

◆ incrementNumDependencies()

◆ index() [1/2]

◆ index() [2/2]

◆ init()

◆ operator=()

◆ removeAllDependencies()

◆ removeDependency()

◆ resolve()

◆ setCallback()

◆ setCostEstimate()

◆ setName()

◆ setNumDependencies()

◆ setSyncTag()

◆ setTag()

◆ setTargetThread()

◆ setTask()

◆ spawn()

Member Data Documentation

◆ m_assignedThread

◆ m_callback

◆ m_children

◆ m_cost

◆ m_dependencyCounter

◆ m_index

◆ m_name

◆ m_numDependencies

◆ m_parents

◆ m_syncTag

◆ m_tag

◆ m_targetThread

◆ m_task

◆ m_timer
