A basic particle system that contains all the storages and buffers required for basic operation and also a rendering task. More...

#include <ParticleSystem.h>

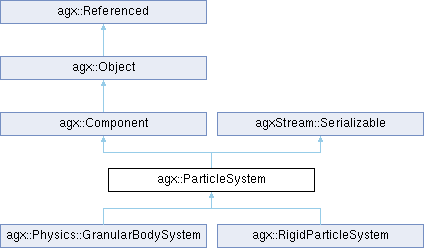

Inheritance diagram for agx::ParticleSystem:

Classes
class	MaterialUuidBufferListener

class	UpdateRenderingListener

Public Member Functions
void	_setGravityTask (Task *task)

void	addCollisionGroup (agx::UInt32 id, bool updateExistingParticles=true)
	Add the specified `id` to a vector of group id, this will make a all newly created particles part of the group `id`.

void	addCollisionGroup (const agx::Name &id, bool updateExistingParticles=true)

void	addCollisionGroupParticle (agx::UInt32 id, agx::Physics::ParticlePtr ptr)
	Add the specified `id` to a vector of group id, this make the specific particle part of the group `id`.

void	addCollisionGroupParticle (const agx::Name &id, agx::Physics::ParticlePtr ptr)

void	addCustomBufferInt (const agx::String &buffername)
	Adds a custom attribute Int buffer for the particle system.

void	addCustomBufferReal (const agx::String &buffername)
	Adds a custom attribute Real buffer for the particle system.

void	addCustomBufferReal32 (const agx::String &buffername)
	Adds a custom attribute Real32 buffer for the particle system.

void	addCustomBufferVec3 (const agx::String &buffername)
	Adds a custom attribute Vec3 buffer for the particle system.

virtual void	addNotification (agxSDK::Simulation *simulation)
	Triggers when particlesystem is added to the simulation.

void	applyAirForceDragSimple (agx::Real cd, agx::Real cr)
	Apply air drag to the particles according to formula: cd * velocity^2 + cr * velocity.

void	attach ()
	Binds relevant buffer pointers to objects after inserting the particle system into the simulation.

agx::Real	calculateMeanRadius () const
	Returns the calculated mean radius of all the particles. Will return 0 if the system contains no particles.

agx::Real	calculateTotalParticleMass () const
	Calculates the total particle mass in the particle system.

agx::Real	calculateTotalParticleVolume () const

void	clearAllParticles ()
	Utility method for clearing all particles in the particle system.

void	clearContactData ()

void	colorParticlesWithLevelsInBound (const agx::Bound3 &bound, const agx::Vec4fVector &colors)
	Colors particles with different levels in the vertical z-direction inside a specified bound.

void	commitAllBuffers ()
	Executes the "commit" command all buffers in the particle system.

void	commitColorBuffer ()
	Executes the "commit" command on the buffer so that particle rendering can be updated properly.

Physics::ParticlePtr	createParticle ()
	Create a new particle in the particle system.

agx::Physics::ParticleGeometryContactPtr	createParticleGeometryContact (agx::Physics::ParticlePtr particle, agx::Physics::GeometryPtr geometry)

agx::Physics::ParticlePairContactPtr	createParticlePairContact (agx::Physics::ParticlePtr p1, agx::Physics::ParticlePtr p2)

agxData::EntityRange	createParticles (size_t numParticles)
	Create a set of particles in the particle system.

void	destroyParticle (Physics::ParticlePtr particle)
	Destroy a particle.

void	destroyParticles (agxData::EntityRange particles)
	Destroy a range of particles.

void	destroyParticles (const agxData::EntityPtrVector &particles)

void	destroyParticles (const Physics::ParticlePtrVector &particles)
	Destroy a list of particles.

virtual void	destroySingleParticle (agx::Index particleId)
	Destroy particle with specified id.

void	detach ()
	Unbinds relevant buffer pointers from objects after removing the particle system into the simulation.

void	evaluateParticleDefaultMass ()
	This should be called if the density of the bulk material is changed, so the particle default mass is updated accordingly.

agx::Physics::CollisionGroupSetPtr	getCollisionGroupSet () const

agx::Int	getCustomBufferValueInt (agx::Index id, const agx::String &buffername)
	Returns a custom Int buffer value from a particle.

agx::Real	getCustomBufferValueReal (agx::Index id, const agx::String &buffername)
	Returns a custom Real buffer value from a particle.

agx::Real32	getCustomBufferValueReal32 (agx::Index id, const agx::String &buffername)
	Returns a custom Real32 buffer value from a particle.

agx::Vec3	getCustomBufferValueVec3 (agx::Index id, const agx::String &buffername)
	Returns a custom Vec3 buffer value from a particle.

const agxCollide::GeometryHashVector &	getDisabledCollisions () const

bool	getEnableCollisions (const agxCollide::Geometry *geometry) const

agxData::EntityStorage *	getGeometryParticleContactListStorage ()

Material *	getMaterial ()

const Material *	getMaterial () const

size_t	getNumActiveParticleGeometryContacts ()
	Returns the number of ACTIVE particle-geometry contacts, after the last conducted contact filtering.

size_t	getNumActiveParticleParticleContacts ()
	Returns the number of ACTIVE particle-particle contacts, after the last conducted contact filtering.

size_t	getNumParticleGeometryContacts ()
	Returns the number of particle-geometry contacts.

size_t	getNumParticleParticleContacts ()
	Returns the number of particle-particle contacts.

size_t	getNumParticles () const

Physics::ParticlePtr	getParticle (agx::Index particleId)
	Returns a particle from the particle system given a particle id.

const agx::Bound3 &	getParticleBound ()

agx::Vector< agx::Physics::ParticleGeometryContactPtr >	getParticleGeometryContacts ()
	Returns the current ParticleGeometryContacts in the simulation.

agxData::EntityStorage *	getParticleGeometryContactStorage ()

agx::Index	getParticleIdFromIndex (agx::Index index) const
	Return the particle id for the specified particle entity array index.

Real	getParticleMass () const

agxData::EntityStorage *	getParticlePairContactStorage ()

agx::Vector< agx::Physics::ParticlePairContactPtr >	getParticleParticleContacts ()
	Returns the current ParticleParticle contacts in the simulation.

Real	getParticleRadius () const

agx::Physics::ParticlePtrArray	getParticles ()

const agx::Physics::ParticlePtrArray	getParticles () const

agxData::EntityStorage *	getParticleStorage ()

const agxData::EntityStorage *	getParticleStorage () const

virtual agx::Vec4f	getSingleParticleColor (agx::Index particleId)
	Get particle color with specified id.

virtual agx::Vec3	getSingleParticleForce (agx::Index particleId)
	Get particle velocity with specified id.

virtual agx::Real	getSingleParticleMass (agx::Index particleId)
	Get particle radius with specified id.

virtual agx::Vec3	getSingleParticlePosition (agx::Index particleId)
	Get particle position with specified id.

virtual agx::Real	getSingleParticleRadius (agx::Index particleId)
	Get particle radius with specified id.

virtual agx::Vec3	getSingleParticleVelocity (agx::Index particleId)
	Get particle velocity with specified id.

agx::Real	getTotalParticleGeometryContactForces ()

agx::Real	getTotalParticleParticleContactForces ()

Task *	getUpdateTask ()

bool	hasCollisionGroup (agx::UInt32 id) const
	This is performing a linear search among the group id for this particle.

bool	hasCollisionGroup (const agx::Name &id) const

bool	hasCollisionGroupParticle (agx::UInt32 id, agx::Physics::ParticlePtr ptr) const
	This is performing a linear search among the group id for this particle.

bool	hasCollisionGroupParticle (const agx::Name &id, agx::Physics::ParticlePtr ptr) const

bool	hasCustomBuffer (const agx::String &buffername, const agx::String &formatName)
	Returns true if the particle system has a buffer with the specified name and format.

bool	isParticleGeometryContactValid (Physics::ParticleGeometryContactPtr contact)

bool	isParticlePairContactValid (Physics::ParticlePairContactPtr contact)

bool	isValid (Physics::ParticlePtr particle) const

bool	particleExistsWithId (agx::Index id)
	Check if there is a particle with a specified id.

void	removeCollisionGroup (agx::UInt32 id, bool updateExistingParticles=true)
	Remove a group id from the vector of group ids.

void	removeCollisionGroup (const agx::Name &id, bool updateExistingParticles=true)

void	removeCollisionGroupParticle (agx::UInt32 id, agx::Physics::ParticlePtr ptr)
	Remove a group id from the vector of group ids.

void	removeCollisionGroupParticle (const agx::Name &id, agx::Physics::ParticlePtr ptr)

bool	removeParticle (Physics::ParticlePtr particle)
	Tag a particle for removal at the end of the time step.

agx::Physics::ParticlePtrVector	removeParticlesOutsideBound (const agx::Bound3 &bound)
	Removes and returns particles in the specified particle system outside the given 3D bound.

void	setCustomBufferValueInt (agx::Index id, const agx::String &buffername, agx::Int val)
	Sets a custom Int buffer value to a particle.

void	setCustomBufferValueReal (agx::Index id, const agx::String &buffername, agx::Real val)
	Sets a custom Real buffer value to a particle.

void	setCustomBufferValueReal32 (agx::Index id, const agx::String &buffername, agx::Real32 val)
	Sets a custom Real32 buffer value to a particle.

void	setCustomBufferValueVec3 (agx::Index id, const agx::String &buffername, agx::Vec3 val)
	Sets a custom Vec3 buffer value to a particle.

void	setEnableCollisions (const agxCollide::Geometry *geometry, bool flag)
	Specify whether `otherGeometry` is allowed to collide with this geometry.

void	setMaterial (Material *material, bool updateExistingParticles=false)
	Set the default particle material.

virtual void	setParticleMass (Real mass, bool updateExistingParticles=false)
	Set particle mass.

void	setParticleRadius (Real radius, bool updateExistingParticles=false)
	Set the default particle radius of created particles, with option of updating existing particles.

virtual void	setSingleParticleColor (agx::Index particleId, const agx::Vec4f &color)
	Set particle color with specified id.

virtual void	setSingleParticleForce (agx::Index particleId, const agx::Vec3 &force)
	Set particle force with specified id.

virtual void	setSingleParticleMass (agx::Index particleId, agx::Real mass)
	Set particle radius with specified id.

virtual void	setSingleParticleRadius (agx::Index particleId, agx::Real radius)
	Set particle radius with specified id.

virtual void	setSingleParticleVelocity (agx::Index particleId, const agx::Vec3 &velocity)
	Set particle velocity with specified id.

void	setSpace (agxCollide::Space *space)

virtual bool	setUpdateTask (Task *updateTask)
	Set the task that will be executed whenever it is time to step the simulation.

agxData::EntityRange	spawnParticles (const agx::Vec3Vector &positions)
	Spawn particles with defined positions.

agx::Physics::ParticlePtrVector	spawnParticlesInBound (const agx::Bound3 &bound, agx::Emitter::DistributionTable *sourceTable, const agx::Vec3 &spacing, agx::Real jitterFactor=agx::Real(0))
	Spawns particles In a specified bound from a distribution table.

agx::Physics::ParticlePtrVector	spawnParticlesInBound (const agx::Bound3 &bound, Real radius, const agx::Vec3 &spacing, agx::Real jitterFactor=agx::Real(0))
	Spawns particles in a specified bound.

agx::Physics::ParticlePtrVector	spawnParticlesInBoundHCP (const agx::Bound3 &bound, agx::Emitter::DistributionTable *sourceTable, const agx::Vec3 &spacing, agx::Real jitterFactor=agx::Real(0))
	Spawns particles in a specified bound from a distribution table using a Hexagonal-Close-Packing (HCP) lattice.

agx::Physics::ParticlePtrVector	spawnParticlesInBoundHCP (const agx::Bound3 &bound, Real radius, const agx::Vec3 &spacing, agx::Real jitterFactor=agx::Real(0))
	Spawns particles In a specified bound using a Hexagonal-Close-Packing (HCP) lattice.

agx::Physics::ParticlePtrVector	spawnParticlesInGeometry (agxCollide::Geometry geometry, agx::Emitter::DistributionTable sourceTable, const agx::Vec3 &spacing, agx::Real jitterFactor=agx::Real(0))
	Spawns particles In a specified geometry from a distribution table.

agx::Physics::ParticlePtrVector	spawnParticlesInGeometry (agxCollide::Geometry *geometry, Real radius, const agx::Vec3 &spacing, agx::Real jitterFactor=agx::Real(0))
	Spawns particles In a specified geometry.

agx::Physics::ParticlePtrVector	spawnParticlesInGeometryHCP (agxCollide::Geometry geometry, agx::Emitter::DistributionTable sourceTable, const agx::Vec3 &spacing, agx::Real jitterFactor=agx::Real(0))
	Spawns particles In a specified geometry from a distribution table using a Hexagonal-Close-Packing (HCP) lattice.

agx::Physics::ParticlePtrVector	spawnParticlesInGeometryHCP (agxCollide::Geometry *geometry, Real radius, const agx::Vec3 &spacing, agx::Real jitterFactor=agx::Real(0))
	Spawns particles In a specified geometry using a Hexagonal-Close-Packing (HCP) lattice.

Vec3	sumForceMagnitudes (RigidBody *body)
	Sums force magnitudes from particle system onto rigid body.

void	updateShouldRender ()
	Update the shouldRender variable in particles given renders states such as clipping and filtering.

Public Member Functions inherited from agx::Component
	Component (const agx::Name &name=agx::Name(), agx::Model model=agx::Component::ClassModel(), agx::Device device=nullptr)

virtual void	addObject (agx::Object *object, bool assignContext=true)
	Add an object to the component.

virtual String	autoComplete (const String &partialName, StringVector &matchingNames) const

virtual void	buildNavigationTree (agxJson::Value &eNode) const override

void	configure (Model *model)

virtual void	configure (TiXmlElement *eComponent) override

agx::Device *	getDevice ()

template<typename T >
T *	getDevice ()

const agx::Device *	getDevice () const

template<typename T >
const T *	getDevice () const

size_t	getNumObjects (const agx::Name &name) const

agx::Object *	getObject (const agx::Name &name, agx::Model *model, size_t index=0)

const agx::Object *	getObject (const agx::Name &name, agx::Model *model, size_t index=0) const

agx::Object *	getObject (const agx::Name &name, size_t index=0)

template<typename T >
T *	getObject (const agx::Name &name, size_t index=0)

const agx::Object *	getObject (const agx::Name &name, size_t index=0) const

template<typename T >
const T *	getObject (const agx::Name &name, size_t index=0) const

const agx::ObjectRefVector &	getObjects () const

template<typename T >
void	getObjects (agx::ObjectPtrVector &result, bool recursive=false) const

void	getObjects (agx::ObjectPtrVector &result, const agx::Model *model, bool recursive=false) const

virtual Object *	getResourceImpl (const Path &path, agx::Model *model) override

virtual void	printSubtree () const override

void	printSubtree (std::ostream &stream, int depth=0) const

virtual void	rebind () override

void	removeAllObjects ()
	Remove all components.

virtual void	removeObject (agx::Object *object)
	Remove an object from the component.

void	removeObject (const agx::Name &name, size_t index=0)
	Remove an object with a specified name (and optional index) from the component.

virtual void	snapshot (TiXmlNode *eParent, const String &directory) const override

void	traverse (ComponentVisitor *)

void	traverse (const TraverseCallback &callback)

Public Member Functions inherited from agx::Object
	Object (const Name &name=Name(), Model *model=Object::ClassModel())

void	addListener (EventListener *listener)

virtual void	buildNavigationTree (agxJson::Value &eNode) const

virtual void	configure (TiXmlElement *)

agx::String	fullName () const

agx::String	fullPath () const

agx::String	fullPath (const agx::Object *root) const

template<typename T >
T *	getAutoScopedResource (const agx::Path &path)

template<typename T >
const T *	getAutoScopedResource (const agx::Path &path) const

agx::Object *	getAutoScopedResource (const agx::Path &path, agx::Model *model=nullptr)

const agx::Object *	getAutoScopedResource (const agx::Path &path, agx::Model *model=nullptr) const

agx::Object *	getContext ()

template<typename T >
T *	getContext ()

const agx::Object *	getContext () const

template<typename T >
const T *	getContext () const

agx::UInt32	getId () const

const agx::Name &	getImplementationName () const

agx::Model *	getModel ()

const agx::Model *	getModel () const

const agx::Name &	getName () const

agx::Object *	getNextSibling ()

const agx::Object *	getNextSibling () const

agx::Path	getPath () const

agx::Path	getPath (const agx::Object *root) const

template<typename T >
T *	getResource (const agx::Path &path)

template<typename T >
const T *	getResource (const agx::Path &path) const

agx::Object *	getResource (const agx::Path &path, agx::Model *model=nullptr)

const agx::Object *	getResource (const agx::Path &path, agx::Model *model=nullptr) const

virtual agx::Object *	getResourceImpl (const agx::Path &path, agx::Model *model)

agx::Object *	getRootContext ()

const agx::Object *	getRootContext () const

bool	hasListener (EventListener *listener)

bool	hasParent (const agx::Object *node) const

bool	isUnique () const

virtual void	printSubtree () const

virtual void	rebind ()

void	removeListener (EventListener *listener)

virtual void	save (TiXmlElement *) const

virtual void	setContext (agx::Object *context)

void	setId (UInt32 id)

void	setModel (agx::Model *model)
	Set the object model (handled automatically).

void	setName (const agx::Name &name)
	Set the name of the object.

virtual void	snapshot (TiXmlNode *, const String &) const

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Public Member Functions inherited from agxStream::Serializable
virtual	~Serializable ()
	Destructor for normal C++ use but hidden from SWIG bindings.

virtual const char *	getClassName () const

bool	getEnableSerialization () const

bool	getEnableUuidGeneration ()

agx::UInt32	getIndex () const
	This index is given at creation of this object.

virtual StorageAgent *	getStorageAgent () const =0

agx::Uuid	getUuid () const

bool	isFinished () const

void	setEnableSerialization (bool flag)
	Set to false to disable serialization of this object.

void	setFinished ()
	Tells this class that it is restored correctly and should not be deleted during destruction of an Archive.

void	setUuid (const agx::Uuid &uuid)
	Explicitly set a Uuid on a serializable object.

Static Public Member Functions
static Model *	ClassModel ()

Static Public Member Functions inherited from agx::Component
static Component *	_load (TiXmlElement eComponent, Device device)

static agx::Model *	ClassModel ()

static Component *	load (const Path &path, const Name &implementation, Device *device, const Path &_namespace=Path())

static Component *	load (const String &path, const Path &_namespace=Path())

static Component *	load (const String &path, Device *device, const Path &_namespace=Path())

static Component *	load (TiXmlElement eComponent, Device device)

Static Public Member Functions inherited from agx::Object
static agx::Model *	ClassModel ()

static agx::String	generateName (const agx::String &bindPath)

static const HashSet< Object * > &	getActiveObjects ()

static bool	getEnableRebind ()
	Should rebinding be allowed? Right now a global setting.

static Object *	load (const String &path, Device *device, const String &type, const String &attribute, const String &value)

template<typename T >
static T *	load (const String &path, Device *device, const String &type, const String &attribute, const String &value)

static Object *	load (const String &path, Device *device, const String &type="", size_t instance=0)

template<typename T >
static T *	load (const String &path, Device *device, const String &type="", size_t instance=0)

static void	load (const String &path, Device *device, ObjectPtrVector &loadedObjects)

static Object *	load (TiXmlElement eObject, Device device)

template<typename T >
static T *	load (TiXmlElement eObject, Device device)

static TiXmlDocument	openDocument (const String &path)

static void	setEnableRebind (bool flag)
	Sets if rebinding of objects should be allowed (Right now a global setting).

Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Static Public Member Functions inherited from agxStream::Serializable
static void	setEnableUuidGeneration (bool flag)
	Specify if there should be UUID:s generated for each new Serializable object. By default it is enabled.

Protected Types
typedef agx::observer_ptr< const MaterialUuidBufferListener >	MaterialUuidBufferListenerConstObserver

typedef agx::ref_ptr< const MaterialUuidBufferListener >	MaterialUuidBufferListenerConstRef

typedef agx::observer_ptr< MaterialUuidBufferListener >	MaterialUuidBufferListenerObserver

typedef agx::ref_ptr< MaterialUuidBufferListener >	MaterialUuidBufferListenerRef

typedef agx::observer_ptr< const UpdateRenderingListener >	UpdateRenderingListenerConstObserver

typedef agx::ref_ptr< const UpdateRenderingListener >	UpdateRenderingListenerConstRef

typedef agx::observer_ptr< UpdateRenderingListener >	UpdateRenderingListenerObserver

typedef agx::ref_ptr< UpdateRenderingListener >	UpdateRenderingListenerRef

Protected Member Functions
	ParticleSystem ()

	ParticleSystem (const String &model, Device *device=CpuDevice::instance())

virtual	~ParticleSystem ()

void	init (bool createMaterial=true)

void	invalidLicenseCallback ()

void	setCollisionGroupSet (agx::Physics::CollisionGroupSetPtr)

void	setRadiusOnParticles (agxData::EntityRange &entityRange, agx::Real radius)

Protected Member Functions inherited from agx::Component
virtual	~Component ()

String	expandAutoCompletionMatch (const String &query, const StringVector &matchingNames) const

void	setDevice (Device *device)

Protected Member Functions inherited from agx::Object
virtual	~Object ()

Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Protected Member Functions inherited from agxStream::Serializable
	Serializable ()
	Default constructor.

	Serializable (const Serializable &other)
	Copy constructor.

void	generateUuid ()

Protected Attributes
agxData::EntityStorageRef	m_particleStorage

TaskGroupRef	m_updateTask

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Additional Inherited Members
Public Types inherited from agx::Component
typedef Event2< Component , Object >	ObjectEvent
	Event when adding removing child objects.

typedef Callback1< Object * >	TraverseCallback

Public Types inherited from agx::Object
typedef agx::observer_ptr< const Event >	EventConstObserver

typedef agx::ref_ptr< const Event >	EventConstRef

typedef agx::observer_ptr< Event >	EventObserver

typedef agx::Vector< EventObserver >	EventObserverVector

typedef agx::VectorPOD< Event * >	EventPtrVector

typedef agx::ref_ptr< Event >	EventRef

typedef agx::Vector< EventRef >	EventRefVector

Public Attributes inherited from agx::Component
ObjectEvent	addObjectEvent

ObjectEvent	removeObjectEvent

Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Detailed Description

A basic particle system that contains all the storages and buffers required for basic operation and also a rendering task.

It does not contain any update task. A simulated particle system is created by either adding an update task using setUpdateTask(Task*), or by creating one of the pre-configured particle systems available as sub-classes. Currently available are RigidParticleSystem and GranularBodySystem.

ConstraintFluid is currently disabled.

Definition at line 67 of file ParticleSystem.h.

Member Typedef Documentation

◆ MaterialUuidBufferListenerConstObserver

typedef agx::observer_ptr< const MaterialUuidBufferListener > agx::ParticleSystem::MaterialUuidBufferListenerConstObserver

protected

Definition at line 706 of file ParticleSystem.h.

◆ MaterialUuidBufferListenerConstRef

typedef agx::ref_ptr< const MaterialUuidBufferListener > agx::ParticleSystem::MaterialUuidBufferListenerConstRef

protected

Definition at line 706 of file ParticleSystem.h.

◆ MaterialUuidBufferListenerObserver

typedef agx::observer_ptr< MaterialUuidBufferListener > agx::ParticleSystem::MaterialUuidBufferListenerObserver

protected

Definition at line 706 of file ParticleSystem.h.

◆ MaterialUuidBufferListenerRef

typedef agx::ref_ptr< MaterialUuidBufferListener > agx::ParticleSystem::MaterialUuidBufferListenerRef

protected

Definition at line 706 of file ParticleSystem.h.

◆ UpdateRenderingListenerConstObserver

typedef agx::observer_ptr< const UpdateRenderingListener > agx::ParticleSystem::UpdateRenderingListenerConstObserver

protected

Definition at line 733 of file ParticleSystem.h.

◆ UpdateRenderingListenerConstRef

typedef agx::ref_ptr< const UpdateRenderingListener > agx::ParticleSystem::UpdateRenderingListenerConstRef

protected

Definition at line 733 of file ParticleSystem.h.

◆ UpdateRenderingListenerObserver

typedef agx::observer_ptr< UpdateRenderingListener > agx::ParticleSystem::UpdateRenderingListenerObserver

protected

Definition at line 733 of file ParticleSystem.h.

◆ UpdateRenderingListenerRef

typedef agx::ref_ptr< UpdateRenderingListener > agx::ParticleSystem::UpdateRenderingListenerRef

protected

Definition at line 733 of file ParticleSystem.h.

Constructor & Destructor Documentation

◆ ParticleSystem() [1/2]

agx::ParticleSystem::ParticleSystem	(	const String &	model,
		Device *	device = `CpuDevice::instance()`
	)

protected

◆ ParticleSystem() [2/2]

agx::ParticleSystem::ParticleSystem ( )

protected

◆ ~ParticleSystem()

virtual agx::ParticleSystem::~ParticleSystem ( )

protectedvirtual

Member Function Documentation

◆ _setGravityTask()

void agx::ParticleSystem::_setGravityTask ( Task * task )

◆ addCollisionGroup() [1/2]

void agx::ParticleSystem::addCollisionGroup	(	agx::UInt32	id,
		bool	updateExistingParticles = `true`
	)

Add the specified id to a vector of group id, this will make a all newly created particles part of the group id.

Returns: true if the ParticleSystem can collide with a specified geometry.

Following has to be true to make this method return true.

if they belong to a group pair that is not disabled
collisions for g1 is not disabled against g2 (g1->setEnableCollisions(g2, false) By default the particles are not part of any group.

This can be used to partition the simulation where some groups cannot collide with other groups. Which groups that can collide or not is determined by Space and can be set using the method agxCollide::Space::setEnablePair( id1, id2, enable );

◆ addCollisionGroup() [2/2]

void agx::ParticleSystem::addCollisionGroup	(	const agx::Name &	id,
		bool	updateExistingParticles = `true`
	)

◆ addCollisionGroupParticle() [1/2]

void agx::ParticleSystem::addCollisionGroupParticle	(	agx::UInt32	id,
		agx::Physics::ParticlePtr	ptr
	)

Add the specified id to a vector of group id, this make the specific particle part of the group id.

By default the specific particle is not part of any group.

This can be used to partition the simulation where some groups cannot collide with other groups. Which groups that can collide or not is determined by Space and can be set using the method agxCollide::Space::setEnablePair( id1, id2, enable );

◆ addCollisionGroupParticle() [2/2]

void agx::ParticleSystem::addCollisionGroupParticle	(	const agx::Name &	id,
		agx::Physics::ParticlePtr	ptr
	)

◆ addCustomBufferInt()

void agx::ParticleSystem::addCustomBufferInt ( const agx::String & buffername )

Adds a custom attribute Int buffer for the particle system.

Allows for setting custom properties of type Int for each particle in the particle system.

Parameters

buffername The name of the attribute buffer

Definition at line 825 of file ParticleSystem.h.

◆ addCustomBufferReal()

void agx::ParticleSystem::addCustomBufferReal ( const agx::String & buffername )

Adds a custom attribute Real buffer for the particle system.

Allows for setting custom properties of type Real for each particle in the particle system.

Parameters

buffername The name of the attribute buffer

Definition at line 820 of file ParticleSystem.h.

◆ addCustomBufferReal32()

void agx::ParticleSystem::addCustomBufferReal32 ( const agx::String & buffername )

Adds a custom attribute Real32 buffer for the particle system.

Allows for setting custom properties of type Real32 for each particle in the particle system.

Parameters

buffername The name of the attribute buffer

Definition at line 830 of file ParticleSystem.h.

◆ addCustomBufferVec3()

void agx::ParticleSystem::addCustomBufferVec3 ( const agx::String & buffername )

Adds a custom attribute Vec3 buffer for the particle system.

Allows for setting custom properties of type Vec3 for each particle in the particle system.

Parameters

buffername The name of the Vec3 attribute buffer to add

Definition at line 835 of file ParticleSystem.h.

◆ addNotification()

virtual void agx::ParticleSystem::addNotification ( agxSDK::Simulation * simulation )

virtual

Triggers when particlesystem is added to the simulation.

◆ applyAirForceDragSimple()

void agx::ParticleSystem::applyAirForceDragSimple	(	agx::Real	cd,
		agx::Real	cr
	)

Apply air drag to the particles according to formula: cd * velocity^2 + cr * velocity.

◆ attach()

void agx::ParticleSystem::attach ( )

Binds relevant buffer pointers to objects after inserting the particle system into the simulation.

◆ calculateMeanRadius()

agx::Real agx::ParticleSystem::calculateMeanRadius ( ) const

Returns the calculated mean radius of all the particles. Will return 0 if the system contains no particles.

◆ calculateTotalParticleMass()

agx::Real agx::ParticleSystem::calculateTotalParticleMass ( ) const

Calculates the total particle mass in the particle system.

◆ calculateTotalParticleVolume()

agx::Real agx::ParticleSystem::calculateTotalParticleVolume ( ) const

◆ ClassModel()

static Model * agx::ParticleSystem::ClassModel ( )

static

◆ clearAllParticles()

void agx::ParticleSystem::clearAllParticles ( )

Utility method for clearing all particles in the particle system.

◆ clearContactData()

void agx::ParticleSystem::clearContactData ( )

◆ colorParticlesWithLevelsInBound()

void agx::ParticleSystem::colorParticlesWithLevelsInBound	(	const agx::Bound3 &	bound,
		const agx::Vec4fVector &	colors
	)

Colors particles with different levels in the vertical z-direction inside a specified bound.

Parameters

bound	The bound that is used to color the particles
colors	Vector containing the colors that will be used in the coloring

◆ commitAllBuffers()

void agx::ParticleSystem::commitAllBuffers ( )

Executes the "commit" command all buffers in the particle system.

This is necessary if the raw data buffers been modified during a simulation where a journal is recorded.

◆ commitColorBuffer()

void agx::ParticleSystem::commitColorBuffer ( )

Executes the "commit" command on the buffer so that particle rendering can be updated properly.

◆ createParticle()

Physics::ParticlePtr agx::ParticleSystem::createParticle ( )

Create a new particle in the particle system.

Referenced by agx::Physics::GranularBodySystem::createParticle().

◆ createParticleGeometryContact()

agx::Physics::ParticleGeometryContactPtr agx::ParticleSystem::createParticleGeometryContact	(	agx::Physics::ParticlePtr	particle,
		agx::Physics::GeometryPtr	geometry
	)

◆ createParticlePairContact()

agx::Physics::ParticlePairContactPtr agx::ParticleSystem::createParticlePairContact	(	agx::Physics::ParticlePtr	p1,
		agx::Physics::ParticlePtr	p2
	)

◆ createParticles()

agxData::EntityRange agx::ParticleSystem::createParticles ( size_t numParticles )

Create a set of particles in the particle system.

◆ destroyParticle()

void agx::ParticleSystem::destroyParticle ( Physics::ParticlePtr particle )

Destroy a particle.

◆ destroyParticles() [1/3]

void agx::ParticleSystem::destroyParticles ( agxData::EntityRange particles )

Destroy a range of particles.

◆ destroyParticles() [2/3]

void agx::ParticleSystem::destroyParticles ( const agxData::EntityPtrVector & particles )

◆ destroyParticles() [3/3]

void agx::ParticleSystem::destroyParticles ( const Physics::ParticlePtrVector & particles )

Destroy a list of particles.

◆ destroySingleParticle()

virtual void agx::ParticleSystem::destroySingleParticle ( agx::Index particleId )

virtual

Destroy particle with specified id.

◆ detach()

void agx::ParticleSystem::detach ( )

Unbinds relevant buffer pointers from objects after removing the particle system into the simulation.

◆ evaluateParticleDefaultMass()

void agx::ParticleSystem::evaluateParticleDefaultMass ( )

This should be called if the density of the bulk material is changed, so the particle default mass is updated accordingly.

◆ getCollisionGroupSet()

agx::Physics::CollisionGroupSetPtr agx::ParticleSystem::getCollisionGroupSet ( ) const

inline

Returns: a GroupSet with all the group id:s for the particle system

Definition at line 817 of file ParticleSystem.h.

◆ getCustomBufferValueInt()

agx::Int agx::ParticleSystem::getCustomBufferValueInt	(	agx::Index	id,
		const agx::String &	buffername
	)

Returns a custom Int buffer value from a particle.

Parameters

id	Id of the particle
buffername	The name of the custom Int attribute buffer

Returns: The custom Int value of the particle.

Definition at line 827 of file ParticleSystem.h.

◆ getCustomBufferValueReal()

agx::Real agx::ParticleSystem::getCustomBufferValueReal	(	agx::Index	id,
		const agx::String &	buffername
	)

Returns a custom Real buffer value from a particle.

Parameters

id	Id of the particle
buffername	The name of the custom Real attribute buffer

Returns: The custom Real value of the particle.

Definition at line 822 of file ParticleSystem.h.

◆ getCustomBufferValueReal32()

agx::Real32 agx::ParticleSystem::getCustomBufferValueReal32	(	agx::Index	id,
		const agx::String &	buffername
	)

Returns a custom Real32 buffer value from a particle.

Parameters

id	Id of the particle
buffername	The name of the custom Real32 attribute buffer

Returns: The custom Real value of the particle.

Definition at line 832 of file ParticleSystem.h.

◆ getCustomBufferValueVec3()

agx::Vec3 agx::ParticleSystem::getCustomBufferValueVec3	(	agx::Index	id,
		const agx::String &	buffername
	)

Returns a custom Vec3 buffer value from a particle.

Parameters

id	Id of the particle
buffername	The name of the custom Vec3 attribute buffer

Returns: The custom Vec3 value of the particle.

Definition at line 837 of file ParticleSystem.h.

◆ getDisabledCollisions()

const agxCollide::GeometryHashVector & agx::ParticleSystem::getDisabledCollisions ( ) const

Returns: The set of disabled geometry collisions.

Definition at line 815 of file ParticleSystem.h.

◆ getEnableCollisions()

bool agx::ParticleSystem::getEnableCollisions ( const agxCollide::Geometry * geometry ) const

Returns: true if this geometry is allowed to collide with geometry.

◆ getGeometryParticleContactListStorage()

agxData::EntityStorage * agx::ParticleSystem::getGeometryParticleContactListStorage ( )

Returns: The storage for Geometry-Particle contact lists.

Definition at line 812 of file ParticleSystem.h.

◆ getMaterial() [1/2]

Material * agx::ParticleSystem::getMaterial ( )

Returns: The default particle material of created particles.

◆ getMaterial() [2/2]

const Material * agx::ParticleSystem::getMaterial ( ) const

◆ getNumActiveParticleGeometryContacts()

size_t agx::ParticleSystem::getNumActiveParticleGeometryContacts ( )

Returns the number of ACTIVE particle-geometry contacts, after the last conducted contact filtering.

◆ getNumActiveParticleParticleContacts()

size_t agx::ParticleSystem::getNumActiveParticleParticleContacts ( )

Returns the number of ACTIVE particle-particle contacts, after the last conducted contact filtering.

◆ getNumParticleGeometryContacts()

size_t agx::ParticleSystem::getNumParticleGeometryContacts ( )

Returns the number of particle-geometry contacts.

◆ getNumParticleParticleContacts()

size_t agx::ParticleSystem::getNumParticleParticleContacts ( )

Returns the number of particle-particle contacts.

◆ getNumParticles()

size_t agx::ParticleSystem::getNumParticles ( ) const

Returns: The current number of particles in the system.

◆ getParticle()

Physics::ParticlePtr agx::ParticleSystem::getParticle ( agx::Index particleId )

Returns a particle from the particle system given a particle id.

◆ getParticleBound()

const agx::Bound3 & agx::ParticleSystem::getParticleBound ( )

◆ getParticleGeometryContacts()

agx::Vector< agx::Physics::ParticleGeometryContactPtr > agx::ParticleSystem::getParticleGeometryContacts ( )

Returns the current ParticleGeometryContacts in the simulation.

◆ getParticleGeometryContactStorage()

agxData::EntityStorage * agx::ParticleSystem::getParticleGeometryContactStorage ( )

Returns: The storage for Particle-Geometry contacts.

Definition at line 811 of file ParticleSystem.h.

◆ getParticleIdFromIndex()

agx::Index agx::ParticleSystem::getParticleIdFromIndex ( agx::Index index ) const

Return the particle id for the specified particle entity array index.

Parameters

index - specified entity array index.

Returns: the particle id given a specified entity array index. Will return InvalidIndex if index is outside array range.

◆ getParticleMass()

Real agx::ParticleSystem::getParticleMass ( ) const

Returns: The default particle mass. By default, the mass is derived from the assigned default agx::Material of the system.

◆ getParticlePairContactStorage()

agxData::EntityStorage * agx::ParticleSystem::getParticlePairContactStorage ( )

Returns: The storage for the particle pair contacts.

Definition at line 813 of file ParticleSystem.h.

◆ getParticleParticleContacts()

agx::Vector< agx::Physics::ParticlePairContactPtr > agx::ParticleSystem::getParticleParticleContacts ( )

Returns the current ParticleParticle contacts in the simulation.

◆ getParticleRadius()

Real agx::ParticleSystem::getParticleRadius ( ) const

Returns: The default particle radius of created particles.

◆ getParticles() [1/2]

agx::Physics::ParticlePtrArray agx::ParticleSystem::getParticles ( )

Definition at line 804 of file ParticleSystem.h.

◆ getParticles() [2/2]

const agx::Physics::ParticlePtrArray agx::ParticleSystem::getParticles ( ) const

Returns: All active particles in the particle system (only valid until storage is modified, e.g. by deleting a particle).

Definition at line 799 of file ParticleSystem.h.

◆ getParticleStorage() [1/2]

agxData::EntityStorage * agx::ParticleSystem::getParticleStorage ( )

Returns: The storage where the particle data is stored.

Definition at line 809 of file ParticleSystem.h.

Referenced by agx::Physics::GranularBodySystem::getParticles().

◆ getParticleStorage() [2/2]

const agxData::EntityStorage * agx::ParticleSystem::getParticleStorage ( ) const

Returns: The storage where the particle data is stored.

Definition at line 810 of file ParticleSystem.h.

◆ getSingleParticleColor()

virtual agx::Vec4f agx::ParticleSystem::getSingleParticleColor ( agx::Index particleId )

virtual

Get particle color with specified id.

◆ getSingleParticleForce()

virtual agx::Vec3 agx::ParticleSystem::getSingleParticleForce ( agx::Index particleId )

virtual

Get particle velocity with specified id.

◆ getSingleParticleMass()

virtual agx::Real agx::ParticleSystem::getSingleParticleMass ( agx::Index particleId )

virtual

Get particle radius with specified id.

◆ getSingleParticlePosition()

virtual agx::Vec3 agx::ParticleSystem::getSingleParticlePosition ( agx::Index particleId )

virtual

Get particle position with specified id.

◆ getSingleParticleRadius()

virtual agx::Real agx::ParticleSystem::getSingleParticleRadius ( agx::Index particleId )

virtual

Get particle radius with specified id.

◆ getSingleParticleVelocity()

virtual agx::Vec3 agx::ParticleSystem::getSingleParticleVelocity ( agx::Index particleId )

virtual

Get particle velocity with specified id.

◆ getTotalParticleGeometryContactForces()

agx::Real agx::ParticleSystem::getTotalParticleGeometryContactForces ( )

◆ getTotalParticleParticleContactForces()

agx::Real agx::ParticleSystem::getTotalParticleParticleContactForces ( )

◆ getUpdateTask()

Task * agx::ParticleSystem::getUpdateTask ( )

Returns: The current update task.

Definition at line 797 of file ParticleSystem.h.

◆ hasCollisionGroup() [1/2]

bool agx::ParticleSystem::hasCollisionGroup ( agx::UInt32 id ) const

This is performing a linear search among the group id for this particle.

Parameters

id	- The group id we are looking for.

Returns: true if the Geometry is part of the group id

◆ hasCollisionGroup() [2/2]

bool agx::ParticleSystem::hasCollisionGroup ( const agx::Name & id ) const

◆ hasCollisionGroupParticle() [1/2]

bool agx::ParticleSystem::hasCollisionGroupParticle	(	agx::UInt32	id,
		agx::Physics::ParticlePtr	ptr
	)		const

This is performing a linear search among the group id for this particle.

Parameters

id	- The group id we are looking for.

Returns: true if the Geometry is part of the group id

◆ hasCollisionGroupParticle() [2/2]

bool agx::ParticleSystem::hasCollisionGroupParticle	(	const agx::Name &	id,
		agx::Physics::ParticlePtr	ptr
	)		const

◆ hasCustomBuffer()

bool agx::ParticleSystem::hasCustomBuffer	(	const agx::String &	buffername,
		const agx::String &	formatName
	)

Returns true if the particle system has a buffer with the specified name and format.

◆ init()

void agx::ParticleSystem::init ( bool createMaterial = true )

protected

◆ invalidLicenseCallback()

void agx::ParticleSystem::invalidLicenseCallback ( )

protected

◆ isParticleGeometryContactValid()

bool agx::ParticleSystem::isParticleGeometryContactValid ( Physics::ParticleGeometryContactPtr contact )

Returns: true if particle geometry contact is valid

◆ isParticlePairContactValid()

bool agx::ParticleSystem::isParticlePairContactValid ( Physics::ParticlePairContactPtr contact )

Returns: true if particle-particle contact is valid

◆ isValid()

bool agx::ParticleSystem::isValid ( Physics::ParticlePtr particle ) const

Returns: true if particle is not destroyed or marked to be removed

◆ particleExistsWithId()

bool agx::ParticleSystem::particleExistsWithId ( agx::Index id )

Check if there is a particle with a specified id.

◆ removeCollisionGroup() [1/2]

void agx::ParticleSystem::removeCollisionGroup	(	agx::UInt32	id,
		bool	updateExistingParticles = `true`
	)

Remove a group id from the vector of group ids.

Parameters

id	- The group id to be removed

◆ removeCollisionGroup() [2/2]

void agx::ParticleSystem::removeCollisionGroup	(	const agx::Name &	id,
		bool	updateExistingParticles = `true`
	)

◆ removeCollisionGroupParticle() [1/2]

void agx::ParticleSystem::removeCollisionGroupParticle	(	agx::UInt32	id,
		agx::Physics::ParticlePtr	ptr
	)

Remove a group id from the vector of group ids.

Parameters

id	- The group id to be removed

◆ removeCollisionGroupParticle() [2/2]

void agx::ParticleSystem::removeCollisionGroupParticle	(	const agx::Name &	id,
		agx::Physics::ParticlePtr	ptr
	)

◆ removeParticle()

bool agx::ParticleSystem::removeParticle ( Physics::ParticlePtr particle )

Tag a particle for removal at the end of the time step.

Parameters

particle - the specified particlePtr to mark for removal.

Returns: - true if particle was successfully removed, false otherwise.

Note: - This is a more preferable way to remove particles than destroyParticle since it will not change the internal particle data structure during the time step

◆ removeParticlesOutsideBound()

agx::Physics::ParticlePtrVector agx::ParticleSystem::removeParticlesOutsideBound ( const agx::Bound3 & bound )

Removes and returns particles in the specified particle system outside the given 3D bound.

Parameters

bound - the specified 3D bound which all particle center positions will be tested against.

Returns: a vector with the successfully removed particles.

◆ setCollisionGroupSet()

void agx::ParticleSystem::setCollisionGroupSet ( agx::Physics::CollisionGroupSetPtr )

protected

◆ setCustomBufferValueInt()

void agx::ParticleSystem::setCustomBufferValueInt	(	agx::Index	id,
		const agx::String &	buffername,
		agx::Int	val
	)

Sets a custom Int buffer value to a particle.

Parameters

id	Id of the particle
buffername	The name of the custom Int attribute buffer
val	The Int value to be set on the particle

Definition at line 826 of file ParticleSystem.h.

◆ setCustomBufferValueReal()

void agx::ParticleSystem::setCustomBufferValueReal	(	agx::Index	id,
		const agx::String &	buffername,
		agx::Real	val
	)

Sets a custom Real buffer value to a particle.

Parameters

id	Id of the particle
buffername	The name of the custom Real attribute buffer
val	The Real value to be set on the particle

Definition at line 821 of file ParticleSystem.h.

◆ setCustomBufferValueReal32()

void agx::ParticleSystem::setCustomBufferValueReal32	(	agx::Index	id,
		const agx::String &	buffername,
		agx::Real32	val
	)

Sets a custom Real32 buffer value to a particle.

Parameters

id	Id of the particle
buffername	The name of the custom Real attribute buffer
val	The Real32 value to be set on the particle

Definition at line 831 of file ParticleSystem.h.

◆ setCustomBufferValueVec3()

void agx::ParticleSystem::setCustomBufferValueVec3	(	agx::Index	id,
		const agx::String &	buffername,
		agx::Vec3	val
	)

Sets a custom Vec3 buffer value to a particle.

Parameters

id	Id of the particle
buffername	The name of the custom Vec3 attribute buffer
val	The Vec3 value to be set on the particle

Definition at line 836 of file ParticleSystem.h.

◆ setEnableCollisions()

void agx::ParticleSystem::setEnableCollisions	(	const agxCollide::Geometry *	geometry,
		bool	flag
	)

Specify whether otherGeometry is allowed to collide with this geometry.

◆ setMaterial()

void agx::ParticleSystem::setMaterial	(	Material *	material,
		bool	updateExistingParticles = `false`
	)

Set the default particle material.

The default particle mass is derived from the density of the default material.

Note: - When updating the material of existing particles, their mass properties will be updated according to the radius of each individual particle. This will override any manual mass value that has been set to the particles.

Parameters

material	- the specific material to set as the default particle material.
updateExistingParticles	- true if existing particles should be updated, false otherwise. ( Default: false )

◆ setParticleMass()

virtual void agx::ParticleSystem::setParticleMass	(	Real	mass,
		bool	updateExistingParticles = `false`
	)

virtual

Set particle mass.

Note that the default particle mass is normally derived from the default material of the particle system when particles are created. This function is used to set the default value of the mass buffer and also to manually set the mass on all particles.

Note: - Setting a material on either the particle system or an individual particle will override this mass value.

Parameters

mass	- the specified mass to set as default and to all particles if that option is used.
updateExistingParticles	- true if the mass of all existing particles should be updated, false otherwise. ( Default: false )

Reimplemented in agx::Physics::GranularBodySystem.

◆ setParticleRadius()

void agx::ParticleSystem::setParticleRadius	(	Real	radius,
		bool	updateExistingParticles = `false`
	)

Set the default particle radius of created particles, with option of updating existing particles.

Note: - When updating the radius of existing particles, their mass properties will be updated according to the density of each individual particle material. This will override any manual mass value that has been set to the particles.

Parameters

radius	- the specified default radius to set to the particle system.
updateExistingParticles	- true if the existing particles should be updated, false otherwise. ( Default: false )

◆ setRadiusOnParticles()

void agx::ParticleSystem::setRadiusOnParticles	(	agxData::EntityRange &	entityRange,
		agx::Real	radius
	)

protected

◆ setSingleParticleColor()

virtual void agx::ParticleSystem::setSingleParticleColor	(	agx::Index	particleId,
		const agx::Vec4f &	color
	)

virtual

Set particle color with specified id.

◆ setSingleParticleForce()

virtual void agx::ParticleSystem::setSingleParticleForce	(	agx::Index	particleId,
		const agx::Vec3 &	force
	)

virtual

Set particle force with specified id.

◆ setSingleParticleMass()

virtual void agx::ParticleSystem::setSingleParticleMass	(	agx::Index	particleId,
		agx::Real	mass
	)

virtual

Set particle radius with specified id.

◆ setSingleParticleRadius()

virtual void agx::ParticleSystem::setSingleParticleRadius	(	agx::Index	particleId,
		agx::Real	radius
	)

virtual

Set particle radius with specified id.

Reimplemented in agx::Physics::GranularBodySystem.

◆ setSingleParticleVelocity()

virtual void agx::ParticleSystem::setSingleParticleVelocity	(	agx::Index	particleId,
		const agx::Vec3 &	velocity
	)

virtual

Set particle velocity with specified id.

◆ setSpace()

void agx::ParticleSystem::setSpace ( agxCollide::Space * space )

◆ setUpdateTask()

virtual bool agx::ParticleSystem::setUpdateTask ( Task * updateTask )

virtual

Set the task that will be executed whenever it is time to step the simulation.

Reimplemented in agx::Physics::GranularBodySystem.

◆ spawnParticles()

agxData::EntityRange agx::ParticleSystem::spawnParticles ( const agx::Vec3Vector & positions )

Spawn particles with defined positions.

◆ spawnParticlesInBound() [1/2]

agx::Physics::ParticlePtrVector agx::ParticleSystem::spawnParticlesInBound	(	const agx::Bound3 &	bound,
		agx::Emitter::DistributionTable *	sourceTable,
		const agx::Vec3 &	spacing,
		agx::Real	jitterFactor = `agx::Real(0)`
	)

Spawns particles In a specified bound from a distribution table.

Parameters

bound	The specified bound to spawn in
sourceTable	The particle model distribution table used to spawn particles
spacing	spacing between the particle center points that are spawned
jitterFactor	The factor of the distance that is used to randomize particle positions

Returns: A vector containing the created particles.

◆ spawnParticlesInBound() [2/2]

agx::Physics::ParticlePtrVector agx::ParticleSystem::spawnParticlesInBound	(	const agx::Bound3 &	bound,
		Real	radius,
		const agx::Vec3 &	spacing,
		agx::Real	jitterFactor = `agx::Real(0)`
	)

Spawns particles in a specified bound.

Parameters

bound	the specified bound to spawn in
radius	The radius for the new particles
spacing	spacing between the particle center points that are spawned
jitterFactor	the factor of the distance that is used to randomize particle positions

Returns: A vector containing the created particles.

◆ spawnParticlesInBoundHCP() [1/2]

agx::Physics::ParticlePtrVector agx::ParticleSystem::spawnParticlesInBoundHCP	(	const agx::Bound3 &	bound,
		agx::Emitter::DistributionTable *	sourceTable,
		const agx::Vec3 &	spacing,
		agx::Real	jitterFactor = `agx::Real(0)`
	)

Spawns particles in a specified bound from a distribution table using a Hexagonal-Close-Packing (HCP) lattice.

Parameters

bound	The specified bound to spawn in
sourceTable	The particle model distribution table used to spawn particles
spacing	Spacing between the particle center points that are spawned
jitterFactor	The factor of the distance that is used to randomize particle positions

Returns: A vector containing the created particles.

◆ spawnParticlesInBoundHCP() [2/2]

agx::Physics::ParticlePtrVector agx::ParticleSystem::spawnParticlesInBoundHCP	(	const agx::Bound3 &	bound,
		Real	radius,
		const agx::Vec3 &	spacing,
		agx::Real	jitterFactor = `agx::Real(0)`
	)

Spawns particles In a specified bound using a Hexagonal-Close-Packing (HCP) lattice.

Parameters

bound	The specified bound to spawn in
radius	The radius for the new particles
spacing	Spacing between the particle center points that are spawned
jitterFactor	The factor of the distance that is used to randomize particle positions

Returns: A vector containing the created particles.

◆ spawnParticlesInGeometry() [1/2]

agx::Physics::ParticlePtrVector agx::ParticleSystem::spawnParticlesInGeometry	(	agxCollide::Geometry *	geometry,
		agx::Emitter::DistributionTable *	sourceTable,
		const agx::Vec3 &	spacing,
		agx::Real	jitterFactor = `agx::Real(0)`
	)

Spawns particles In a specified geometry from a distribution table.

Parameters

geometry	The specified geometry to spawn particles in
sourceTable	The particle model distribution table used to spawn particles
spacing	Spacing between the particle center points that are spawned
jitterFactor	The factor of the distance that is used to randomize particle positions

Returns: A vector containing the created particles.

◆ spawnParticlesInGeometry() [2/2]

agx::Physics::ParticlePtrVector agx::ParticleSystem::spawnParticlesInGeometry	(	agxCollide::Geometry *	geometry,
		Real	radius,
		const agx::Vec3 &	spacing,
		agx::Real	jitterFactor = `agx::Real(0)`
	)

Spawns particles In a specified geometry.

Parameters

geometry	The specified geometry to spawn particles in
radius	The radius for the new particles
spacing	Spacing between the particle center points that are spawned
jitterFactor	The factor of the distance that is used to randomize particle positions

Returns: A vector containing the created particles.

◆ spawnParticlesInGeometryHCP() [1/2]

agx::Physics::ParticlePtrVector agx::ParticleSystem::spawnParticlesInGeometryHCP	(	agxCollide::Geometry *	geometry,
		agx::Emitter::DistributionTable *	sourceTable,
		const agx::Vec3 &	spacing,
		agx::Real	jitterFactor = `agx::Real(0)`
	)

Spawns particles In a specified geometry from a distribution table using a Hexagonal-Close-Packing (HCP) lattice.

Parameters

geometry	The specified geometry to spawn particles in
sourceTable	The particle model distribution table used to spawn particles
spacing	Spacing between the particle center points that are spawned
jitterFactor	The factor of the distance that is used to randomize particle positions

Returns: A vector containing the created particles.

◆ spawnParticlesInGeometryHCP() [2/2]

agx::Physics::ParticlePtrVector agx::ParticleSystem::spawnParticlesInGeometryHCP	(	agxCollide::Geometry *	geometry,
		Real	radius,
		const agx::Vec3 &	spacing,
		agx::Real	jitterFactor = `agx::Real(0)`
	)

Spawns particles In a specified geometry using a Hexagonal-Close-Packing (HCP) lattice.

Parameters

geometry	The specified geometry to spawn particles in
radius	The radius for the new particles
spacing	Spacing between the particle center points that are spawned
jitterFactor	The factor of the distance that is used to randomize particle positions

Returns: A vector containing the created particles.

◆ sumForceMagnitudes()

Vec3 agx::ParticleSystem::sumForceMagnitudes ( RigidBody * body )

Sums force magnitudes from particle system onto rigid body.

Only valid for iterative solver.

Parameters

body	The rigid body.

◆ updateShouldRender()

void agx::ParticleSystem::updateShouldRender ( )

Update the shouldRender variable in particles given renders states such as clipping and filtering.

This determines if an individual particle should be rendered or not.

Member Data Documentation

◆ m_particleStorage

agxData::EntityStorageRef agx::ParticleSystem::m_particleStorage

protected

Definition at line 756 of file ParticleSystem.h.

◆ m_updateTask

TaskGroupRef agx::ParticleSystem::m_updateTask

protected

Definition at line 696 of file ParticleSystem.h.

The documentation for this class was generated from the following file:

ParticleSystem.h

Classes

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ MaterialUuidBufferListenerConstObserver

◆ MaterialUuidBufferListenerConstRef

◆ MaterialUuidBufferListenerObserver

◆ MaterialUuidBufferListenerRef

◆ UpdateRenderingListenerConstObserver

◆ UpdateRenderingListenerConstRef

◆ UpdateRenderingListenerObserver

◆ UpdateRenderingListenerRef

Constructor & Destructor Documentation

◆ ParticleSystem() [1/2]

◆ ParticleSystem() [2/2]

◆ ~ParticleSystem()

Member Function Documentation

◆ _setGravityTask()

◆ addCollisionGroup() [1/2]

◆ addCollisionGroup() [2/2]

◆ addCollisionGroupParticle() [1/2]

◆ addCollisionGroupParticle() [2/2]

◆ addCustomBufferInt()

◆ addCustomBufferReal()

◆ addCustomBufferReal32()

◆ addCustomBufferVec3()

◆ addNotification()

◆ applyAirForceDragSimple()

◆ attach()

◆ calculateMeanRadius()

◆ calculateTotalParticleMass()

◆ calculateTotalParticleVolume()

◆ ClassModel()

◆ clearAllParticles()

◆ clearContactData()

◆ colorParticlesWithLevelsInBound()

◆ commitAllBuffers()

◆ commitColorBuffer()

◆ createParticle()

◆ createParticleGeometryContact()

◆ createParticlePairContact()

◆ createParticles()

◆ destroyParticle()

◆ destroyParticles() [1/3]

◆ destroyParticles() [2/3]

◆ destroyParticles() [3/3]

◆ destroySingleParticle()

◆ detach()

◆ evaluateParticleDefaultMass()

◆ getCollisionGroupSet()

◆ getCustomBufferValueInt()

◆ getCustomBufferValueReal()

◆ getCustomBufferValueReal32()

◆ getCustomBufferValueVec3()

◆ getDisabledCollisions()

◆ getEnableCollisions()

◆ getGeometryParticleContactListStorage()

◆ getMaterial() [1/2]

◆ getMaterial() [2/2]

◆ getNumActiveParticleGeometryContacts()

◆ getNumActiveParticleParticleContacts()

◆ getNumParticleGeometryContacts()

◆ getNumParticleParticleContacts()

◆ getNumParticles()

◆ getParticle()

◆ getParticleBound()

◆ getParticleGeometryContacts()

◆ getParticleGeometryContactStorage()

◆ getParticleIdFromIndex()

◆ getParticleMass()

◆ getParticlePairContactStorage()

◆ getParticleParticleContacts()

◆ getParticleRadius()

◆ getParticles() [1/2]

◆ getParticles() [2/2]
