The JournalArchive provides an abstract class for inspecting and manipulating the contents of a created journal. More...

#include <JournalArchive.h>

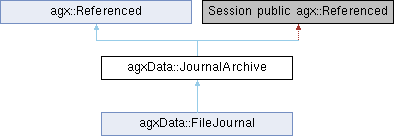

Inheritance diagram for agxData::JournalArchive:

Public Types
typedef agxNet::StructuredMessage	PlotData

typedef agx::ref_ptr< PlotData >	PlotDataRef

typedef agx::Vector< PlotDataRef >	PlotDataRefVector

typedef agx::observer_ptr< const Session >	SessionConstObserver

typedef agx::ref_ptr< const Session >	SessionConstRef

typedef agx::observer_ptr< Session >	SessionObserver

typedef agx::ref_ptr< Session >	SessionRef

typedef agx::HashTable< agx::Name, agxData::JournalArchive::SessionRef >	SessionTable

Public Member Functions
bool	copySession (agxData::JournalArchive::Session session, agxData::JournalArchive target)
	Copy the given session from this journal into the given target journal.

bool	copyTo (agxData::JournalArchive *target)
	Copy the session to another JournalArchive.

virtual DiskFrameReader *	createFrameReader (agxData::JournalArchive::Session *session)=0

virtual DiskFrameWriter *	createFrameWriter (agxData::JournalArchive::Session *session)=0

virtual agxData::JournalArchive::Session *	createNewSession (const agx::Name &name)=0
	Create a new session with the given name.

virtual void	finalizeHeader ()=0

agx::UInt32	getAgxVersionNumber () const

const agx::String &	getAgxVersionString () const

virtual void	getAllPlots (PlotDataRefVector &result)=0

agx::Real64	getComputationTime () const

virtual agx::String	getCustomFilesPath (bool create=true) const =0
	Returns the path to a disk directory where custom files related to the journal may be stored.

virtual agx::String	getCustomFilesPath (bool create=true) const =0
	Get the path a disk directory where additional files related to the session may be stored.

virtual agx::String	getCustomFilesPath (const agx::Name &sessionName, bool create=true) const =0
	Returns the path to a disk directory where custom files related to the given session may be stored.

const agx::Date *	getDate () const

agx::UInt64	getFirstFrameIndex () const

agx::Real64	getFirstFrameTimeStamp () const

virtual agxData::Frame::Header	getFrameHeader (agx::UInt frameIndex) const =0
	Load the header data for a particular frame.

agxData::FrameIO *	getFrameIO ()

agx::UInt64	getFrameStride () const

SerializedFrame::HeaderFormat	getHeaderFormat () const

agxData::JournalArchive *	getJournal ()

const agxData::JournalArchive *	getJournal () const

agx::UInt64	getLastFrameIndex () const

agx::Real64	getLastFrameTimeStamp () const

const agx::Name &	getName () const

const agx::Name &	getName () const

virtual agx::UInt	getNextFrameIndex (agx::UInt currentFrameIndex, agx::Int offset) const =0

agx::UInt64	getNumFrames () const

size_t	getNumSessions () const

const agx::String &	getPath () const

virtual agx::String	getPath () const =0
	Returns a format specific string that identifies the location of this session within a journal.

virtual PlotData *	getPlot (const agx::String &plotName)=0

virtual void	getPlotList (agx::StringVector &result)=0

virtual agx::String	getScenePath (bool create=true) const =0
	Get the path on disk where the .agx file, called the scene file, containing the initial state of the simulation may be stored.

agxData::JournalArchive::Session *	getSession (const agx::Name &name)

const agxData::JournalArchive::Session *	getSession (const agx::Name &name) const

const SessionTable &	getSessions () const

agx::Component *	getSimulationHeader ()

agx::Real64	getTimeStep () const

bool	is64BitArchitecture () const

bool	is64BitReal () const

bool	isLittleEndian () const

bool	isOwnerOf (const agxData::JournalArchive::Session *session) const

void	listSessionNames (agx::Vector< agx::Name > &result) const
	Add to the end of the given Vector the names of all the sessions in the Journal.

virtual bool	packSceneData (std::istream &sceneData)=0
	Copy the scene data found in the given stringstream into the journal in some format specific way.

virtual bool	packSceneData (std::stringstream &sceneData)=0
	Copy the scene data found in the given stringstream into the journal in some format specific way.

virtual bool	recordExtraData (const agx::String &key, const agx::String &value)=0
	Store a string key-value pair to the session on disk.

bool	recordExtraDataAsJSon (const agx::String &key, const agx::String &value)
	Store a string key-value pair to the session on disk, without ruining the .

virtual void	removePlot (const agx::String &plotName)=0

virtual bool	removeSession (agxData::JournalArchive::Session *session)=0
	Remove the given session from the journal.

bool	removeSession (const agx::Name &name)
	Remove the session with the given name from the journal.

virtual bool	renameSession (agxData::JournalArchive::Session *session, const agx::Name &newName)=0
	Rename the given session to the given new name.

agx::String	retrieveExtraData (const agx::String &key)

virtual bool	retrieveExtraData (const agx::String &key, agx::String &value)=0
	Read back the value associated with the key from disk.

agx::String	retrieveExtraDataAsJSon (const agx::String &key)

bool	retrieveExtraDataAsJSon (const agx::String &key, agx::String &value)
	Read back the value associated with the key from disk.

virtual void	savePlot (const PlotData *plot)=0

void	set64BitArchitecture (bool flag)

void	set64BitReal (bool flag)

void	setAgxVersionNumber (const agx::UInt32 version)

void	setAgxVersionString (const agx::String &version)

void	setComputationTime (agx::Real64 computationTime)

void	setDate (agx::Date *date)

void	setFirstFrameIndex (agx::UInt64 startFrame)

void	setFirstFrameTimeStamp (agx::Real64 startTime)

void	setFrameIO (agxData::FrameIO *frameIO)

void	setFrameStride (agx::UInt64 stride)

void	setHeaderFormat (SerializedFrame::HeaderFormat format)
	Some journal formats support more than one format for frame metadata.

void	setLastFrameIndex (agx::UInt64 endFrame)

void	setLastFrameTimeStamp (agx::Real64 endTime)

void	setLittleEndian (bool flag)

void	setNumFrames (agx::UInt64 numFrames)

void	setSimulationHeader (agx::Component *header)

void	setTimeStep (agx::Real64 timeStep)

bool	transferSession (agxData::JournalArchive::Session session, agxData::JournalArchive target)
	Transfer the given session from this journal into the given target.

bool	transferTo (agxData::JournalArchive *target)
	Transfer the session to another JournalArchive. The target JournalArchive must be of the same correct type.

virtual bool	truncate (agx::UInt firstFrameToRemove)=0
	Remove all frames from the given index and forward.

virtual bool	unpackSceneData (std::ostream &sceneData)=0
	Copy scene data from the archive, stored in some format specific way, into the given stringstream.

virtual bool	unpackSceneData (std::stringstream &sceneData)=0
	Copy scene data from the archive, stored in some format specific way, into the given stringstream.

virtual bool	unpackSceneFile ()=0
	Ensure that the scene file for the session is available at the location returned by getScenePath.

virtual void	writeHeader ()=0

Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.

	Referenced (const Referenced &)

template<typename T >
T *	as ()
	Subclass casting.

template<typename T >
const T *	as () const

template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.

template<typename T >
const T *	asSafe () const

int	getReferenceCount () const

template<typename T >
bool	is () const
	Subclass test.

Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.

void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.

void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.

Static Public Member Functions
static agx::String	generateNameFromCurrentDate ()

Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)

Protected Member Functions
	JournalArchive ()

	JournalArchive (const agx::Name &name, const agx::String &path)

virtual	~JournalArchive ()

virtual	~Session ()

virtual agxData::JournalArchive::Session *	makeCopy (agxData::JournalArchive::Session *session)=0
	Create a copy of the given session. The copy will have its disk data stored in the current JournalArchive.

bool	registerSession (agxData::JournalArchive::Session *newSession)
	Create the Journal <-> Session coupling.

bool	rename (const agx::Name &name)

	Session (const agx::Name &name)

void	setName (const agx::Name &name)

void	setPath (const agx::String &path)

bool	unregisterSession (agxData::JournalArchive::Session *removedSession)
	Remove the Journal <-> Session coupling.

bool	updateSessionAndTableWithNewName (agxData::JournalArchive::Session *session, const agx::Name &newName)
	Change the name of the given session. Will ensure that the session table is kept consistent.

Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.

void	allocateObserverVector () const

void	deleteUsingDeleteHandler () const

Additional Inherited Members
Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()

static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.

Protected Attributes inherited from agx::Referenced
Mutex	m_mutex

ObserverContainer	m_observers

AtomicValue	m_refCount

Detailed Description

The JournalArchive provides an abstract class for inspecting and manipulating the contents of a created journal.

Support for the various saved journal formats is provided by classes deriving from this one.

Definition at line 41 of file JournalArchive.h.

Member Typedef Documentation

◆ PlotData

typedef agxNet::StructuredMessage agxData::JournalArchive::PlotData

Definition at line 316 of file JournalArchive.h.

◆ PlotDataRef

typedef agx::ref_ptr<PlotData> agxData::JournalArchive::PlotDataRef

Definition at line 317 of file JournalArchive.h.

◆ PlotDataRefVector

typedef agx::Vector<PlotDataRef> agxData::JournalArchive::PlotDataRefVector

Definition at line 318 of file JournalArchive.h.

◆ SessionConstObserver

typedef agx::observer_ptr< const Session > agxData::JournalArchive::SessionConstObserver

Definition at line 44 of file JournalArchive.h.

◆ SessionConstRef

typedef agx::ref_ptr< const Session > agxData::JournalArchive::SessionConstRef

Definition at line 44 of file JournalArchive.h.

◆ SessionObserver

typedef agx::observer_ptr< Session > agxData::JournalArchive::SessionObserver

Definition at line 44 of file JournalArchive.h.

◆ SessionRef

typedef agx::ref_ptr< Session > agxData::JournalArchive::SessionRef

Definition at line 44 of file JournalArchive.h.

◆ SessionTable

typedef agx::HashTable<agx::Name, agxData::JournalArchive::SessionRef> agxData::JournalArchive::SessionTable

Definition at line 47 of file JournalArchive.h.

Constructor & Destructor Documentation

◆ JournalArchive() [1/2]

agxData::JournalArchive::JournalArchive	(	const agx::Name &	name,
		const agx::String &	path
	)

protected

◆ JournalArchive() [2/2]

agxData::JournalArchive::JournalArchive ( )

protected

◆ ~JournalArchive()

virtual agxData::JournalArchive::~JournalArchive ( )

protectedvirtual

◆ ~Session()

virtual agxData::JournalArchive::~Session ( )

protectedvirtual

Member Function Documentation

◆ copySession()

bool agxData::JournalArchive::copySession	(	agxData::JournalArchive::Session *	session,
		agxData::JournalArchive *	target
	)

Copy the given session from this journal into the given target journal.

The session must be owned by the current JournalArchive and the target must be of the same journal type, i.e, use the same disk format.

Parameters

session	The session to copy.
target	The journal that should receive the copy.

Returns: True if the copy is successful, false otherwise.

◆ copyTo()

bool agxData::JournalArchive::copyTo ( agxData::JournalArchive * target )

Copy the session to another JournalArchive.

The target JournalArchive must be of the same correct type. The result is the same as if "session->getJournal()->copySession(session, target)" had been called.

◆ createFrameReader()

virtual DiskFrameReader * agxData::JournalArchive::createFrameReader ( agxData::JournalArchive::Session * session )

pure virtual

◆ createFrameWriter()

virtual DiskFrameWriter * agxData::JournalArchive::createFrameWriter ( agxData::JournalArchive::Session * session )

pure virtual

◆ createNewSession()

virtual agxData::JournalArchive::Session * agxData::JournalArchive::createNewSession ( const agx::Name & name )

pure virtual

Create a new session with the given name.

Returns: The session just created.

Implemented in agxData::FileJournal.

◆ finalizeHeader()

virtual void agxData::JournalArchive::finalizeHeader ( )

pure virtual

◆ generateNameFromCurrentDate()

static agx::String agxData::JournalArchive::generateNameFromCurrentDate ( )

static

◆ getAgxVersionNumber()

agx::UInt32 agxData::JournalArchive::getAgxVersionNumber ( ) const

◆ getAgxVersionString()

const agx::String & agxData::JournalArchive::getAgxVersionString ( ) const

◆ getAllPlots()

virtual void agxData::JournalArchive::getAllPlots ( PlotDataRefVector & result )

pure virtual

◆ getComputationTime()

agx::Real64 agxData::JournalArchive::getComputationTime ( ) const

◆ getCustomFilesPath() [1/3]

virtual agx::String agxData::JournalArchive::getCustomFilesPath ( bool create = true ) const

pure virtual

Returns the path to a disk directory where custom files related to the journal may be stored.

The directory, including parents, is created if necessary if the 'create' argument is true.

Parameters

create If true then missing directories in the returned path is created.

Returns: Path to custom files directory on disk.

Implemented in agxData::FileJournal.

◆ getCustomFilesPath() [2/3]

virtual agx::String agxData::JournalArchive::getCustomFilesPath ( bool create = true ) const

pure virtual

Get the path a disk directory where additional files related to the session may be stored.

Can create the folder structure if it does not yet exist.

Parameters

create If true then the returned folder and its parents are created.

Returns: Path to a folder owned by this session.

Implemented in agxData::FileJournal.

◆ getCustomFilesPath() [3/3]

virtual agx::String agxData::JournalArchive::getCustomFilesPath	(	const agx::Name &	sessionName,
		bool	create = `true`
	)		const

pure virtual

Returns the path to a disk directory where custom files related to the given session may be stored.

The directory, including parents, is created if necessary if the 'create' parameter is true. The given session name does not need to denote a session that is part of the journal. If not, then the returned path is the path that a sessions with the given name would have if such a session existed.

Parameters

sessionName The name of the session whose custom files path is needed.

Returns: Path to custom files directory on disk for the given session.

Implemented in agxData::FileJournal.

◆ getDate()

const agx::Date * agxData::JournalArchive::getDate ( ) const

◆ getFirstFrameIndex()

agx::UInt64 agxData::JournalArchive::getFirstFrameIndex ( ) const

◆ getFirstFrameTimeStamp()

agx::Real64 agxData::JournalArchive::getFirstFrameTimeStamp ( ) const

◆ getFrameHeader()

virtual agxData::Frame::Header agxData::JournalArchive::getFrameHeader ( agx::UInt frameIndex ) const

pure virtual

Load the header data for a particular frame.

◆ getFrameIO()

agxData::FrameIO * agxData::JournalArchive::getFrameIO ( )

◆ getFrameStride()

agx::UInt64 agxData::JournalArchive::getFrameStride ( ) const

◆ getHeaderFormat()

SerializedFrame::HeaderFormat agxData::JournalArchive::getHeaderFormat ( ) const

◆ getJournal() [1/2]

agxData::JournalArchive * agxData::JournalArchive::getJournal ( )

Returns: The JournalArchive that this session is part of.

◆ getJournal() [2/2]

const agxData::JournalArchive * agxData::JournalArchive::getJournal ( ) const

Returns: The JournalArchive that this session is part of.

◆ getLastFrameIndex()

agx::UInt64 agxData::JournalArchive::getLastFrameIndex ( ) const

◆ getLastFrameTimeStamp()

agx::Real64 agxData::JournalArchive::getLastFrameTimeStamp ( ) const

◆ getName() [1/2]

const agx::Name & agxData::JournalArchive::getName ( ) const

Returns: The name of the journal. This is often the same as the name of a file on disk.

◆ getName() [2/2]

const agx::Name & agxData::JournalArchive::getName ( ) const

Returns: The name of the session.

◆ getNextFrameIndex()

virtual agx::UInt agxData::JournalArchive::getNextFrameIndex	(	agx::UInt	currentFrameIndex,
		agx::Int	offset
	)		const

pure virtual

◆ getNumFrames()

agx::UInt64 agxData::JournalArchive::getNumFrames ( ) const

◆ getNumSessions()

size_t agxData::JournalArchive::getNumSessions ( ) const

Returns: The number of sessions currently stored in the journal.

◆ getPath() [1/2]

const agx::String & agxData::JournalArchive::getPath ( ) const

Returns: A search path to the saved journal. The semantics of the string is storage format dependent, but is often a path to a file on disk.

◆ getPath() [2/2]

virtual agx::String agxData::JournalArchive::getPath ( ) const

pure virtual

Returns a format specific string that identifies the location of this session within a journal.

This may be, for example, a disk or HDF5 path.

◆ getPlot()

virtual PlotData * agxData::JournalArchive::getPlot ( const agx::String & plotName )

pure virtual

◆ getPlotList()

virtual void agxData::JournalArchive::getPlotList ( agx::StringVector & result )

pure virtual

◆ getScenePath()

virtual agx::String agxData::JournalArchive::getScenePath ( bool create = true ) const

pure virtual

Get the path on disk where the .agx file, called the scene file, containing the initial state of the simulation may be stored.

Actual presence of the .agx file depends on if it has been written yet.

If the journal stores the scene data in some internal format, then the unpackSceneFile may be used to copy the initial state from the internal format into a .agx file located at the path returned by this function.

Returns: The path to the .agx file containing the initial state of the simulation.

◆ getSession() [1/2]

agxData::JournalArchive::Session * agxData::JournalArchive::getSession ( const agx::Name & name )

Returns: The session with the given name, or nullptr if no such session exists.

◆ getSession() [2/2]

const agxData::JournalArchive::Session * agxData::JournalArchive::getSession ( const agx::Name & name ) const

Returns: The session with the given name, or nullptr if no such session exists.

◆ getSessions()

const SessionTable & agxData::JournalArchive::getSessions ( ) const

Returns: A table containing all sessions stored in the journal, mapping session names to sessions themselves.

◆ getSimulationHeader()

agx::Component * agxData::JournalArchive::getSimulationHeader ( )

◆ getTimeStep()

agx::Real64 agxData::JournalArchive::getTimeStep ( ) const

◆ is64BitArchitecture()

bool agxData::JournalArchive::is64BitArchitecture ( ) const

◆ is64BitReal()

bool agxData::JournalArchive::is64BitReal ( ) const

◆ isLittleEndian()

bool agxData::JournalArchive::isLittleEndian ( ) const

◆ isOwnerOf()

bool agxData::JournalArchive::isOwnerOf ( const agxData::JournalArchive::Session * session ) const

Returns: True if this journal is the owner of the given session. False otherwise.

◆ listSessionNames()

void agxData::JournalArchive::listSessionNames ( agx::Vector< agx::Name > & result ) const

Add to the end of the given Vector the names of all the sessions in the Journal.

◆ makeCopy()

virtual agxData::JournalArchive::Session * agxData::JournalArchive::makeCopy ( agxData::JournalArchive::Session * session )

protectedpure virtual

Create a copy of the given session. The copy will have its disk data stored in the current JournalArchive.

Implemented in agxData::FileJournal.

◆ packSceneData() [1/2]

virtual bool agxData::JournalArchive::packSceneData ( std::istream & sceneData )

pure virtual

Copy the scene data found in the given stringstream into the journal in some format specific way.

The method is intended to be used with a stringstream filled using the agxSDK::Simulation::write method.

◆ packSceneData() [2/2]

virtual bool agxData::JournalArchive::packSceneData ( std::stringstream & sceneData )

pure virtual

Copy the scene data found in the given stringstream into the journal in some format specific way.

The method is intended to be used with a stringstream filled using the agxSDK::Simulation::write method.

◆ recordExtraData()

virtual bool agxData::JournalArchive::recordExtraData	(	const agx::String &	key,
		const agx::String &	value
	)

pure virtual

Store a string key-value pair to the session on disk.

◆ recordExtraDataAsJSon()

bool agxData::JournalArchive::recordExtraDataAsJSon	(	const agx::String &	key,
		const agx::String &	value
	)

Store a string key-value pair to the session on disk, without ruining the .

◆ registerSession()

bool agxData::JournalArchive::registerSession ( agxData::JournalArchive::Session * newSession )

protected

Create the Journal <-> Session coupling.

Will fail if there already is a session with the given name in the session table.

◆ removePlot()

virtual void agxData::JournalArchive::removePlot ( const agx::String & plotName )

pure virtual

◆ removeSession() [1/2]

virtual bool agxData::JournalArchive::removeSession ( agxData::JournalArchive::Session * session )

pure virtual

Remove the given session from the journal.

Implemented in agxData::FileJournal.

◆ removeSession() [2/2]

bool agxData::JournalArchive::removeSession ( const agx::Name & name )

Remove the session with the given name from the journal.

◆ rename()

bool agxData::JournalArchive::rename ( const agx::Name & name )

protected

◆ renameSession()

virtual bool agxData::JournalArchive::renameSession	(	agxData::JournalArchive::Session *	session,
		const agx::Name &	newName
	)

pure virtual

Rename the given session to the given new name.

Parameters

session	The session to rename.
newName	The name that the session should be renamed to.

Implemented in agxData::FileJournal.

◆ retrieveExtraData() [1/2]

agx::String agxData::JournalArchive::retrieveExtraData ( const agx::String & key )

◆ retrieveExtraData() [2/2]

virtual bool agxData::JournalArchive::retrieveExtraData	(	const agx::String &	key,
		agx::String &	value
	)

pure virtual

Read back the value associated with the key from disk.

The value, if found, is stored in 'value'

◆ retrieveExtraDataAsJSon() [1/2]

agx::String agxData::JournalArchive::retrieveExtraDataAsJSon ( const agx::String & key )

◆ retrieveExtraDataAsJSon() [2/2]

bool agxData::JournalArchive::retrieveExtraDataAsJSon	(	const agx::String &	key,
		agx::String &	value
	)

Read back the value associated with the key from disk.

The value, if found, is stored in 'value'

◆ savePlot()

virtual void agxData::JournalArchive::savePlot ( const PlotData * plot )

pure virtual

◆ Session()

agxData::JournalArchive::Session ( const agx::Name & name )

protected

◆ set64BitArchitecture()

void agxData::JournalArchive::set64BitArchitecture ( bool flag )

◆ set64BitReal()

void agxData::JournalArchive::set64BitReal ( bool flag )

◆ setAgxVersionNumber()

void agxData::JournalArchive::setAgxVersionNumber ( const agx::UInt32 version )

◆ setAgxVersionString()

void agxData::JournalArchive::setAgxVersionString ( const agx::String & version )

◆ setComputationTime()

void agxData::JournalArchive::setComputationTime ( agx::Real64 computationTime )

◆ setDate()

void agxData::JournalArchive::setDate ( agx::Date * date )

◆ setFirstFrameIndex()

void agxData::JournalArchive::setFirstFrameIndex ( agx::UInt64 startFrame )

◆ setFirstFrameTimeStamp()

void agxData::JournalArchive::setFirstFrameTimeStamp ( agx::Real64 startTime )

◆ setFrameIO()

void agxData::JournalArchive::setFrameIO ( agxData::FrameIO * frameIO )

◆ setFrameStride()

void agxData::JournalArchive::setFrameStride ( agx::UInt64 stride )

◆ setHeaderFormat()

void agxData::JournalArchive::setHeaderFormat ( SerializedFrame::HeaderFormat format )

Some journal formats support more than one format for frame metadata.

It is the responsibility of the agxData::Track reading or writing from/to the session to ensure that the set header format matches the actual format used on disk. In particular, setHeaderFormat cannot be used to change the header format of a session.

◆ setLastFrameIndex()

void agxData::JournalArchive::setLastFrameIndex ( agx::UInt64 endFrame )

◆ setLastFrameTimeStamp()

void agxData::JournalArchive::setLastFrameTimeStamp ( agx::Real64 endTime )

◆ setLittleEndian()

void agxData::JournalArchive::setLittleEndian ( bool flag )

◆ setName()

void agxData::JournalArchive::setName ( const agx::Name & name )

protected

◆ setNumFrames()

void agxData::JournalArchive::setNumFrames ( agx::UInt64 numFrames )

◆ setPath()

void agxData::JournalArchive::setPath ( const agx::String & path )

protected

◆ setSimulationHeader()

void agxData::JournalArchive::setSimulationHeader ( agx::Component * header )

◆ setTimeStep()

void agxData::JournalArchive::setTimeStep ( agx::Real64 timeStep )

◆ transferSession()

bool agxData::JournalArchive::transferSession	(	agxData::JournalArchive::Session *	session,
		agxData::JournalArchive *	target
	)

Transfer the given session from this journal into the given target.

The session must be owned by the current JournalArchive and the target must be of the same journal type, i.e., use the same disk format. It is safe to continue using pointers to the transfered session, then in-memory object is updated rather than recreated.

Parameters

session	The session to transfer.
target	The journal that should take over ownership of the session.

Returns: True of the transfer is successful, false otherwise.

◆ transferTo()

bool agxData::JournalArchive::transferTo ( agxData::JournalArchive * target )

Transfer the session to another JournalArchive. The target JournalArchive must be of the same correct type.

◆ truncate()

virtual bool agxData::JournalArchive::truncate ( agx::UInt firstFrameToRemove )

pure virtual

Remove all frames from the given index and forward.

◆ unpackSceneData() [1/2]

virtual bool agxData::JournalArchive::unpackSceneData ( std::ostream & sceneData )

pure virtual

Copy scene data from the archive, stored in some format specific way, into the given stringstream.

The stringstream can then be passed on to the agxSDK::Simulation::read method.

◆ unpackSceneData() [2/2]

virtual bool agxData::JournalArchive::unpackSceneData ( std::stringstream & sceneData )

pure virtual

Copy scene data from the archive, stored in some format specific way, into the given stringstream.

The stringstream can then be passed on to the agxSDK::Simulation::read method.

◆ unpackSceneFile()

virtual bool agxData::JournalArchive::unpackSceneFile ( )

pure virtual

Ensure that the scene file for the session is available at the location returned by getScenePath.

Will overwrite the scene file with the packed version if a file is already present at the path returned by getScenePath.

◆ unregisterSession()

bool agxData::JournalArchive::unregisterSession ( agxData::JournalArchive::Session * removedSession )

protected

Remove the Journal <-> Session coupling.

Note that this will do an unreference of the session and may therefore delete the session.

◆ updateSessionAndTableWithNewName()

bool agxData::JournalArchive::updateSessionAndTableWithNewName	(	agxData::JournalArchive::Session *	session,
		const agx::Name &	newName
	)

protected

Change the name of the given session. Will ensure that the session table is kept consistent.

◆ writeHeader()

virtual void agxData::JournalArchive::writeHeader ( )

pure virtual

The documentation for this class was generated from the following file:

JournalArchive.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ PlotData

◆ PlotDataRef

◆ PlotDataRefVector

◆ SessionConstObserver

◆ SessionConstRef

◆ SessionObserver

◆ SessionRef

◆ SessionTable

Constructor & Destructor Documentation

◆ JournalArchive() [1/2]

◆ JournalArchive() [2/2]

◆ ~JournalArchive()

◆ ~Session()

Member Function Documentation

◆ copySession()

◆ copyTo()

◆ createFrameReader()

◆ createFrameWriter()

◆ createNewSession()

◆ finalizeHeader()

◆ generateNameFromCurrentDate()

◆ getAgxVersionNumber()

◆ getAgxVersionString()

◆ getAllPlots()

◆ getComputationTime()

◆ getCustomFilesPath() [1/3]

◆ getCustomFilesPath() [2/3]

◆ getCustomFilesPath() [3/3]

◆ getDate()

◆ getFirstFrameIndex()

◆ getFirstFrameTimeStamp()

◆ getFrameHeader()

◆ getFrameIO()

◆ getFrameStride()

◆ getHeaderFormat()

◆ getJournal() [1/2]

◆ getJournal() [2/2]

◆ getLastFrameIndex()

◆ getLastFrameTimeStamp()

◆ getName() [1/2]

◆ getName() [2/2]

◆ getNextFrameIndex()

◆ getNumFrames()

◆ getNumSessions()

◆ getPath() [1/2]

◆ getPath() [2/2]

◆ getPlot()

◆ getPlotList()

◆ getScenePath()

◆ getSession() [1/2]

◆ getSession() [2/2]

◆ getSessions()

◆ getSimulationHeader()

◆ getTimeStep()

◆ is64BitArchitecture()

◆ is64BitReal()

◆ isLittleEndian()

◆ isOwnerOf()

◆ listSessionNames()

◆ makeCopy()

◆ packSceneData() [1/2]

◆ packSceneData() [2/2]

◆ recordExtraData()

◆ recordExtraDataAsJSon()

◆ registerSession()

◆ removePlot()

◆ removeSession() [1/2]

◆ removeSession() [2/2]

◆ rename()

◆ renameSession()

◆ retrieveExtraData() [1/2]

◆ retrieveExtraData() [2/2]

◆ retrieveExtraDataAsJSon() [1/2]
