agxSDK::LinkedStructureComponent Class Reference

Base implementation of a component (e.g., specific functionality) in linked structures. More...

#include <LinkedStructureComponent.h>

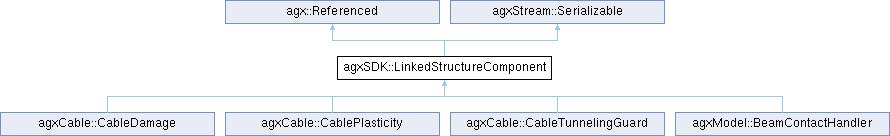

Inheritance diagram for agxSDK::LinkedStructureComponent:

Public Member Functions
	AGXSTREAM_DECLARE_SERIALIZABLE_BASE (agxSDK::LinkedStructureComponent)
agxSDK::LinkedStructure *	getLinkedStructure () const
const agx::Name &	getName () const
agxSDK::Simulation *	getSimulation () const
void	setName (const agx::Name &name)
	Assign new name to this component.
Public Member Functions inherited from agx::Referenced
	Referenced ()
	Default constructor.
	Referenced (const Referenced &)
template<typename T >
T *	as ()
	Subclass casting.
template<typename T >
const T *	as () const
template<typename T >
T *	asSafe ()
	Safe subclass casting, return nullptr if template type does not match.
template<typename T >
const T *	asSafe () const
int	getReferenceCount () const
template<typename T >
bool	is () const
	Subclass test.
Referenced &	operator= (const Referenced &)
	Assignment operator. Will increment the number of references to the referenced object.
void	reference (void *ptr=nullptr) const
	Explicitly increment the reference count by one, indicating that this object has another pointer which is referencing it.
void	unreference (void *ptr=nullptr) const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.
void	unreference_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is referencing it.
Public Member Functions inherited from agxStream::Serializable
virtual	~Serializable ()
	Destructor for normal C++ use but hidden from SWIG bindings.
virtual const char *	getClassName () const
bool	getEnableSerialization () const
bool	getEnableUuidGeneration ()
agx::UInt32	getIndex () const
	This index is given at creation of this object.
virtual StorageAgent *	getStorageAgent () const =0
agx::Uuid	getUuid () const
bool	isFinished () const
void	setEnableSerialization (bool flag)
	Set to false to disable serialization of this object.
void	setFinished ()
	Tells this class that it is restored correctly and should not be deleted during destruction of an Archive.
void	setUuid (const agx::Uuid &uuid)
	Explicitly set a Uuid on a serializable object.

Static Public Member Functions
static agxStream::Serializable *	create (agxStream::InputArchive &)
Static Public Member Functions inherited from agx::Referenced
template<typename T >
static bool	ValidateCast (const Referenced *object)
Static Public Member Functions inherited from agxStream::Serializable
static void	setEnableUuidGeneration (bool flag)
	Specify if there should be UUID:s generated for each new Serializable object. By default it is enabled.

Protected Member Functions
	LinkedStructureComponent (const agx::Name &name="")
	Default, protected constructor.
virtual	~LinkedStructureComponent ()
	Reference counted object - protected destructor.
virtual void	onAddNotification (agxSDK::LinkedStructure *linkedStructure)
	Called when this component is added to a linked structure.
virtual void	onAddNotification (agxSDK::Simulation *simulation)
	Called when addNotification is executed when this linked structure is added to the simulation.
virtual void	onLastStep ()
	Called on simulation last step event - after user lastStep.
virtual void	onPostStep ()
	Called on simulation post step event - after user postStep.
virtual void	onPreCollideStep ()
	Called on simulation pre-collide step event - after user preCollide.
virtual void	onPreStep ()
	Called on simulation pre step event - after user preStep.
virtual void	onRemoveNotification (agxSDK::LinkedStructure *linkedStructure)
	Called when this component is removed from a linked structure.
virtual void	onRemoveNotification (agxSDK::Simulation *simulation)
	Called when removeNotification is executed when this linked structure is removed from the simulation.
Protected Member Functions inherited from agx::Referenced
virtual	~Referenced ()
	Destructor.
void	allocateObserverVector () const
void	deleteUsingDeleteHandler () const
Protected Member Functions inherited from agxStream::Serializable
	Serializable ()
	Default constructor.
	Serializable (const Serializable &other)
	Copy constructor.
void	generateUuid ()

Additional Inherited Members
Static Protected Member Functions inherited from agx::Referenced
static DeleteHandler *	getDeleteHandler ()
static void	setDeleteHandler (DeleteHandler *handler)
	Internal: Set a DeleteHandler to which deletion of all referenced counted objects will be delegated to.
Protected Attributes inherited from agx::Referenced
Mutex	m_mutex
ObserverContainer	m_observers
AtomicValue	m_refCount

Detailed Description

Base implementation of a component (e.g., specific functionality) in linked structures.

Implementations will receive certain callbacks from the parent LinkedStructure object and simulation events, such as preCollide, pre, post and last step events.

Definition at line 36 of file LinkedStructureComponent.h.

Constructor & Destructor Documentation

LinkedStructureComponent()

agxSDK::LinkedStructureComponent::LinkedStructureComponent ( const agx::Name &  name = "" )

protected

Default, protected constructor.

This object completely rely on a implementation so no point in just creating and adding an empty component to a linked structure.

~LinkedStructureComponent()

virtual agxSDK::LinkedStructureComponent::~LinkedStructureComponent ( )

protectedvirtual

Reference counted object - protected destructor.

Member Function Documentation

AGXSTREAM_DECLARE_SERIALIZABLE_BASE()

agxSDK::LinkedStructureComponent::AGXSTREAM_DECLARE_SERIALIZABLE_BASE

(

agxSDK::LinkedStructureComponent

)

create()

static agxStream::Serializable * agxSDK::LinkedStructureComponent::create ( agxStream::InputArchive &  )

inlinestatic

Definition at line 63 of file LinkedStructureComponent.h.

getLinkedStructure()

agxSDK::LinkedStructure * agxSDK::LinkedStructureComponent::getLinkedStructure

(

)

const

Returns

the linked structure this component has been added to - otherwise null

getName()

const agx::Name & agxSDK::LinkedStructureComponent::getName

(

)

const

Returns

the given name of this component used to find this component from the linked structure this component is part of

getSimulation()

agxSDK::Simulation * agxSDK::LinkedStructureComponent::getSimulation

(

)

const

Returns

the simulation the linked structure has been added to - otherwise null

onAddNotification() [1/2]

virtual void agxSDK::LinkedStructureComponent::onAddNotification ( agxSDK::LinkedStructure *  linkedStructure )

protectedvirtual

Called when this component is added to a linked structure.

Reimplemented in agxCable::CableDamage.

onAddNotification() [2/2]

virtual void agxSDK::LinkedStructureComponent::onAddNotification ( agxSDK::Simulation *  simulation )

protectedvirtual

Called when addNotification is executed when this linked structure is added to the simulation.

Reimplemented in agxCable::CableDamage.

onLastStep()

virtual void agxSDK::LinkedStructureComponent::onLastStep ( )

protectedvirtual

Called on simulation last step event - after user lastStep.

onPostStep()

virtual void agxSDK::LinkedStructureComponent::onPostStep ( )

protectedvirtual

Called on simulation post step event - after user postStep.

Reimplemented in agxCable::CableDamage.

onPreCollideStep()

virtual void agxSDK::LinkedStructureComponent::onPreCollideStep ( )

protectedvirtual

Called on simulation pre-collide step event - after user preCollide.

onPreStep()

virtual void agxSDK::LinkedStructureComponent::onPreStep ( )

protectedvirtual

Called on simulation pre step event - after user preStep.

Reimplemented in agxCable::CableDamage.

onRemoveNotification() [1/2]

virtual void agxSDK::LinkedStructureComponent::onRemoveNotification ( agxSDK::LinkedStructure *  linkedStructure )

protectedvirtual

Called when this component is removed from a linked structure.

onRemoveNotification() [2/2]

virtual void agxSDK::LinkedStructureComponent::onRemoveNotification ( agxSDK::Simulation *  simulation )

protectedvirtual

Called when removeNotification is executed when this linked structure is removed from the simulation.

setName()

void agxSDK::LinkedStructureComponent::setName

(

const agx::Name &

name

)

Assign new name to this component.

The name can be used to find this component from the linked structure this component is part of.

Parameters

name	- new name of this component

---

The documentation for this class was generated from the following file:

• LinkedStructureComponent.h
